Outdoor LED Street Light Housing Die Casting Aluminium With Knife Switch

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

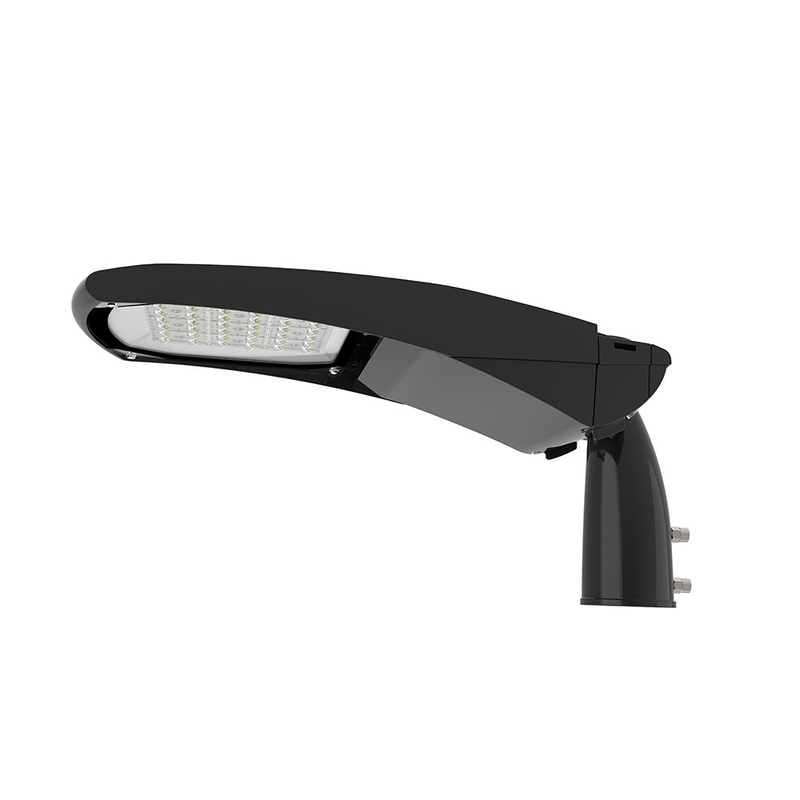

Outdoor LED Street Light Housing Die Casting Aluminium With Knife Switch

Outdoor LED Street Light Housing Die Casting Aluminium With Knife Switch
Outdoor LED Street Light Housing Die Casting Aluminium With Knife Switch
video play

Large Image :  Outdoor LED Street Light Housing Die Casting Aluminium With Knife Switch

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-25-240M
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Power: 240W/300W Material: Die Casting Aluminium
Protection Level: IK08/09/10 Protectin Grade: IP66
Power Factor: PF≥0.95 Luminous: 31200-36000lm
Color Rendering Index: Ra≥70 Net Weight: 7.2kgs
Gross Weight: 7.5kgs Size: 890*361*163 Mm
High Light:

240W Outdoor LED Street Light Housing

,

Knife Switch LED Street Light Housing

,

IK08 Aluminium LED Light Housing

New Design 140lm/W 4000k Ra70 IP66 Die-Casting Aluminium Black Color Led Street Light
140lm/W 4000k Good quality High Pressure Die casting Aluminium Waterproof IP66 Led Street Light


Item NO.: YASL-25-240M


Production Description:

- SL-25 series is a high-performance street lighting available in four sizes. The luminaire is manufactured from high pressure die-casting aluminum.


Technical Datas:

Product Code YASL-25-240M YASL-25-240M
Input Wattage 240W 300W
Installation Pipe Diameter φ45/60/76mm
Luminous Flux 31200-36000lm 39000-45000lm
Color Temperature 2700~6500K
Input Voltage AC90~305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
color rendering index Ra≥70
Temperature of Working Condition -40~50℃
Humidity of Working Condition 20%~90%RH
LED Lifetime 50000h
Protectin Grade IP66
Protection level IK08/09/10
Installation Height 10-14m 10-14m
Net Weight 7.2kgs 7.2kgs
Gross Weight 7.5kgs 7.5kgs
Packing Size(m m) 920*370*180 920*370*180


Product size:
Drawing picture:

 Outdoor LED Street Light Housing Die Casting Aluminium With Knife Switch 0

Product Code YASL-25-100 YASL-25-150 YASL-25-240
L(mm) 645 790 890
W(mm) 257 305 361
H(mm) 147 147 163

Applications:
lnstalling Ways:

Both Horizontal and Vertical available, and adjustable angle-15°to+15°

Material:

Die casting Aluminum body,
Ultra clear tempered glass and PC lens



Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.

Outdoor LED Street Light Housing Die Casting Aluminium With Knife Switch 1

Why choose us



1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.



2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.



3.And we also have our own tooling shop and develop department,can help customer develop their own products.


Q1. What is your terms of payment?

A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.



Q2. What is your terms of delivery?

A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.



Q3: What is the lead time?

A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.



Q4: How about tooling Charge?

A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.



Q5. What is your sample policy?

A: We are glad to send LED Street light housing samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.



Q6. Can you produce according to the samples or drawings?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q7: How to confirm the quality with us before starting to produce?

1) We can provide LED Street light housing samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.



Q8: How to solve the quality problems after sales?

A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.



Q9. What is your terms of packing?

A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.



Q10. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
