Product Details:
Payment & Shipping Terms:
|
| Manufacturer: | Die-casting Man | Wattage: | 30w |
|---|---|---|---|
| CCT: | 3000-6500k | Voltage: | AC90-305V |
| Frequency Range: | 50/60Hz | Power Factor: | >0.95 |
| CRI: | >70 | Protection Grade: | IP66 |
| Highlight: | 30w Outdoor Led Street Light,aluminum 30w led street light,3000k outdoor led street light |
||

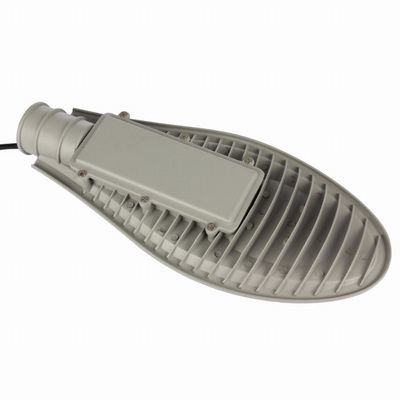

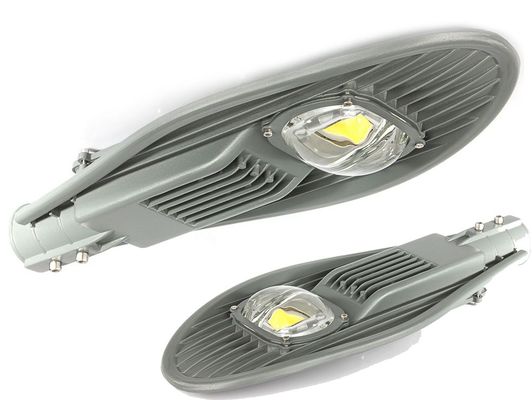

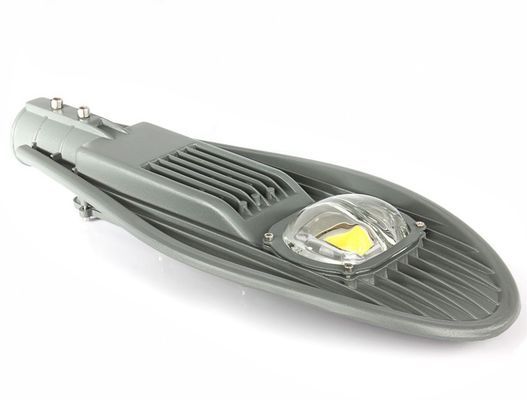

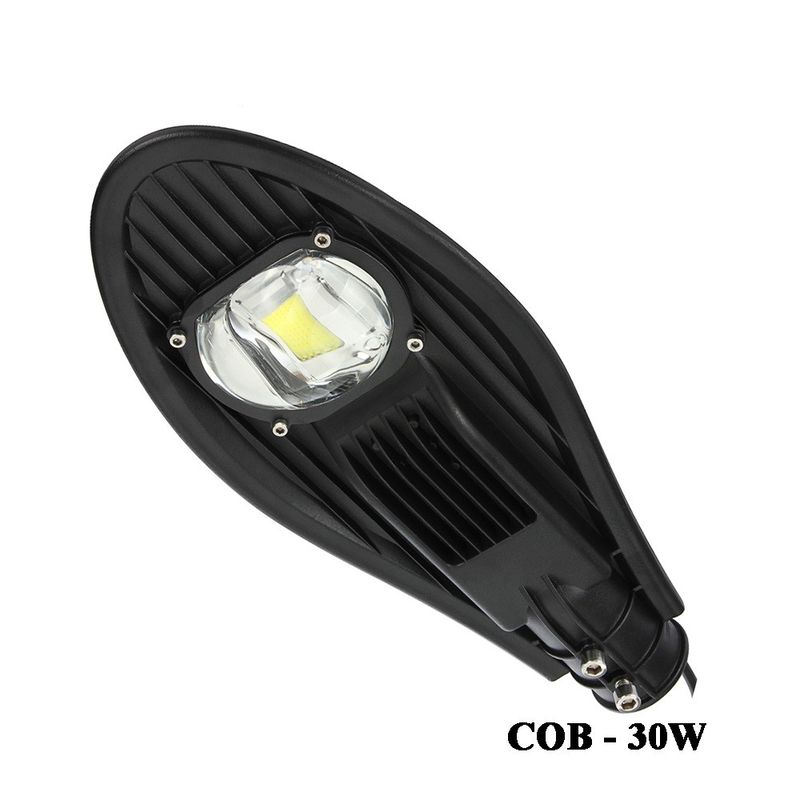

New Design Outdoor Aluminum Ip65 Waterproof 30w COB Led Street Light
Product Description:
| Code | ZHSL-08-30 | ZHSL-08-50 | ZHSL-08-80 | ZHSL-08-120 | ZHSL-08-180 |
| Power | 30W | 50W | 80W | 120W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000/4000/6500K | 3000/4000/6500K |
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W |
| Voltage | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -20-50℃ | -20-50℃ | -20-50℃ | -20-50℃ | -20-50℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000hrs | 50000hrs | 50000hrs | 50000hrs | 50000hrs |
| IP Rate | IP66 | IP66 | IP66 | IP66 | IP65 |
| Installation Pipe Diameter | Φ40mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-7m | 4-7m | 6-8m | 10-12m | 10-14m |
| Net Weight | 1.8kg | 1.8kg | 2.8kg | 4.4kg | 6.2kg |
| Gross Weight | 2.1kg | 2.1kg | 3.3kg | 5.2kg | 7.0kg |
| Packing Size(mm) | 445*200*205/2PCS | 545*230*120 | 665*300*145 | 765*300*145 | 920*355*150 |
| Code | ZHSL-08-30 | ZHSL-08-50 | ZHSL-08-80 | ZHSL-08-120 | ZHSL-08-180 |
| L (mm) | 401 | 500 | 620 | 720 | 881 |
| W (mm) | 171 | 215 | 260 | 280 | 300 |
| H (mm) | 58 | 66 | 82 | 95 | 101 |
