50W Outdoor LED Module Street Lights For Major Road

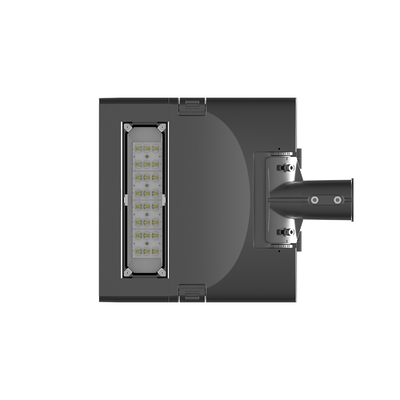

Large Image : 50W Outdoor LED Module Street Lights For Major Road

Product Details:

Place of Origin:	NINGBO,CHINA
Brand Name:	Die Casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	SL-26-50

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	styrofoam package and carton box
Delivery Time:	7-30days
Payment Terms:	L/C, T/T
Supply Ability:	10000PCS/Month

Contact Now

Detailed Product Description

Model:	SL-26-50	Installation Pipe Diameter:	φ60mm
Product Size:	449360152mm	LED:	Lumileds 3030 Or 5050
Color Temperature:	2700K 3000k 400k 5700k	IP:	66
IK:	08
Highlight:	IK08 Waterproof Outdoor Lighting , 50W LED Street Lamp , Outdoor Waterproof LED Street Light

First of all,please let me introduce our Factory:

50W Outdoor LED Module Street Lights For Major Road 0

50W Module Led Street Light For Major Road Outdoor LED Street Lamp

Products Description

Model	Installation Pipe Diameter	Product Size(mm)
		L	W	H
YSSL-26-50	Φ60	449	360	152
YSSL-26-100	Φ60	529	360	152
YSSL-26-150	Φ60	609	360	152
YSSL-26-200	Φ60	689	360	152
YSSL-26-250	Φ60	769	360	152
YSSL-26-300	Φ60	849	360	152

Materials	Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws
Color	Other colors can be customized according to the international color card
Led brand	LUMILEDS,OSRAM,CREE option
Led Specifications	3030,5050 option
Optical effect	130～140 lm/w,140～150 lm/w,150～160 lm/w,160～170 lm/w,170～180 lm/w,170～180 lm/w option
Color Temperature	2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index	Ra≥70；Ra≥80；Ra≥90 option
Optics	TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver brand	/OSRAM/TRIDONIC/MEAN WELL/SOSEN/INVENTRONICS
Input Voltage	AC90～305V
Security level	ClassI/ClassII/Class1/Class2 option
Frequency Range	43～63Hz
Power Factor	PF≥0.95
Working conditions Range	-30 to 45℃,20% to 90%RH
Dimming mode	Time control/0-10V/ Opticalcontrol/DALI option
Lightning protection	10KV/15KV/20KV option
Warranty	5/8 year option
Protection	Overcurrent/Short circuit/Over temperature
Protection level	IP66;IK08/09/10
Certifications	ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66

Installing Ways: Both Horizontal and Vertical available and adjustable angle-15°to 15°

Material:Die casting Aluminum body

Advantages

Standard modular street lamps Optional Glass Module and PC lens module Adjustable Mounting Direction and angle ± 15 ° Tool-free

detachable construction Top ventilation dust-proof net design Optical effect:130～190 lm/W Optional horizontal installation
