Product Details:
Payment & Shipping Terms:
|
| Manufacturer: | Die-casting Man | Material: | Die-casting Aluminum |
|---|---|---|---|
| Wattage: | 40w | Fixture Color: | Gray |
| LED Color: | Gray, Black, White | CRI: | >70 |
| High Light: | 50w Road Lighting Fixtures,3030 Chip Road Lighting Fixtures,Aluminum Outdoor Street Light Fixtures |
||
Technical Specifications:
| Item NO. | ZHSL-05-40 | ZHSL-05-60 | ZHSL-05-120 |
| LED Quantity | 18pcs | 54pcs | 80pcs |
| Rated Power | 30W | 80W | 120W |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Initial Luminous Flux | 3000LM | 8000LM | 12000LM |
| Input Voltage | AC100-240V | AC100-240V | AC100-240V |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor | PF>0.95 | PF>0.95 | PF>0.95 |
| Color Rendering Index | Ra>70 | Ra>70 | Ra>70 |
| Temperature Working Condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| Humidity of Working Condition | 20-90% | 20-90% | 20-90% |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP65 | IP65 | IP65 |
| Installation Pipe Diameter | 60mm | 60mm | 60mm |
| Installation Height | 6-8m | 6-8m | 6-8m |
| Net Weight | 2.9kgs | 5.5 kgs | 9.5 kgs |
| Gross Weight | 3.3kgs | 6 kgs | 10.5kgs |
| Packing Size | 52*28*14 cm | 71*35*16 cm | 91.5 x42x19 cm |
| Efficacy (lm/W) | 125lm/w |
| Power (W) | 30W,50W,80W,100W,120W,150W,200W |
| CCT (K) | 3000K, 4000K, 5000K, 6000K |
| Voltage | AC 100-240 V 50/60 Hz |
| Beam Angle | 145*70° |
| CRI | Ra>70 (Default) / Ra>80 |
| Power Factor(PF) | PF＞0.95 |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Working Environment | -35℃～+50℃,10%～90%RH |
| Lifespan L70 at 25℃ | ＞100,000hrs |
| Holder | 50mm/60mm/70mm |
| Body Material | High pressure die-cast aluminum |
| Housing Color | Gray,White(available on request) |
| Cover Material | UV-resistant Polycarbonate |
| Mounting Type | Horizontal installation adjustable ±5°, Vertical installation adjustable +10° |
| Dimmable | 1-10V Dimming /Timer Dimming |
| Protection Class | Class Ⅰ(Defauit)/Class Ⅱ |
| Standards | CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08 |
| Available on request | Solar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming |
| Reasonable tolerance | Watt: ±10%,CCT: ±500K, Lumen efficiency: ±5% |
Production Description:

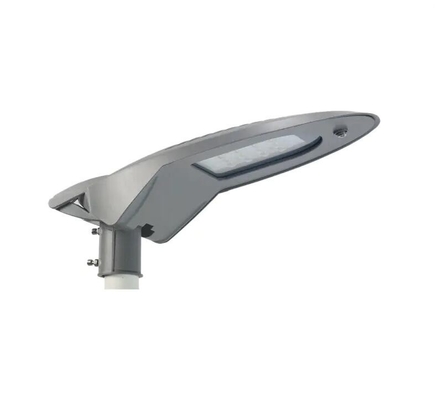

- SL-05 series luminaire is the ideal solution that fulfills requirements of functional street lighting and residential areas,
which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components,
long lifespan is assured. Dis-connector device, enable easy, safe and minimal cost for maintenance.
Efficient system also reduce energy consumption and creat a more attractive urban living environment
and visual comforts for public and residential areas.
- With patented housing design and range of optics, SL-03 series luminaires is also a perfect choice for project oriented usage.
Features:

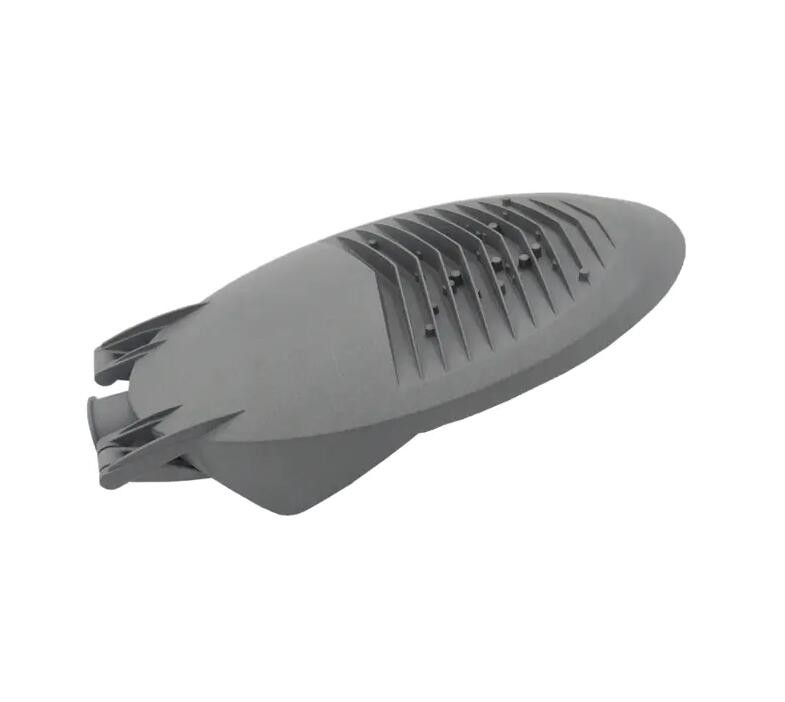

- European standard high-pressure aluminium housing material ADC-3
-Patented Ribbon-Free housing technology
- Excellent thermal management
- Outstanding self-cleaning capability
- Patented optics for increased application efficiency
- Post-top or side-entry mounted +10° or -10° title
- Toughed glass with 4mm thickness, IK08 Impact Resistance; IK09 with 5mm glass optional
LED Engine Module
LED life time of 100,000 hours at 25℃ ambient temperature
Lumiaire efficiency: 110-130lm/w
CCT: 4000k (3000K/ 5000K/ 5700K upon request)
CRI: >70; >80 (upon request)
Operating temperature range: -30 to 45 ℃
Electrical
MeanWell / Inventronics optional (other brand of driver upon request)
Class I or Class II
Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz
10KV/20KV SPD
Power automatically switch off when opening
Dimming:
Dali
1-10V
PWM
AstroDIM for autonomous dimming with five independent levels
Smart control management system
Options:
Photocell
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Motion detection
Standards & Certifications:
CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending
