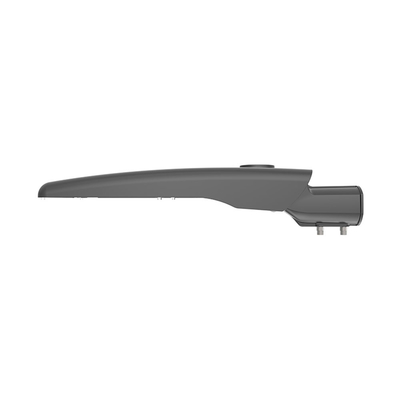

SMD Outdoor LED Street Lights Aluminum 3030 IK08 IP66 120w

SMD Outdoor LED Street Lights Aluminum 3030 IK08 IP66 120w
SMD Outdoor LED Street Lights Aluminum 3030 IK08 IP66 120w
video play

Large Image :  SMD Outdoor LED Street Lights Aluminum 3030 IK08 IP66 120w

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-24-120
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Power: 120W Material: Die Casting Aluminium
Color: Customized Luminous Flux: 15600-18000lm
Input Voltage: AC90-305V Color Rendering Index: Ra≥70
Net Weight: 4.5kgs Gross Weight: 5.3kgs
Ik: 08 Power Factor: PF≥0.95
Protectin Grade: IP66 LED Lifetime: 50000h
Packing Size(m M): 630*310*170
High Light:

Aluminum 3030 Outdoor LED Street Lights


IK08 Outdoor LED Street Lights


Outdoor SMD Street Lights

IP66 Ik08 Waterproof High-performance Street Lighting

Item NO.: YASL-24-120

Production Description:

- SL-24 series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum.

Technical Datas:
Product Code YASL-24-120
Input Wattage 120W
Color Temperature 1680018000K
Luminous Flux 15600-18000lm
Input Voltage AC90305V
Frequency Range 50/60Hz
Power Factor PF≥0.95
color rendering index Ra≥70
Temperature of Working Condition -4050
Humidity of Working Condition 20%90%RH
LED Lifetime 50000h
Protectin Grade IP66
Protection level IK08/09/10
Installation Pipe Diameter φ45/60mm
Installation Height 6-12m
Net Weight 4.5kgs
Gross Weight 5.3kgs
Packing Size(m m) 630*310*170

Drawing picture:

 SMD Outdoor LED Street Lights Aluminum 3030 IK08 IP66 120w 0

lnstalling Ways:

Both Horizontal and Vertical available, and adjustable angle-10°to+10°

SMD Outdoor LED Street Lights Aluminum 3030 IK08 IP66 120w 1


Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q7. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards
