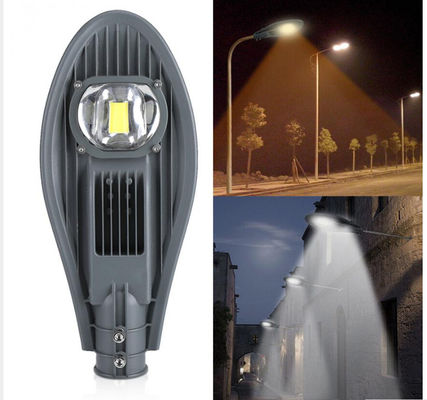

Led Reflectors Publica Outdoor COB Led Street Light Shell 40W Smart City Street Lighting

Led Reflectors Publica Outdoor COB Led Street Light Shell 40W Smart City Street Lighting
Led Reflectors Publica Outdoor COB Led Street Light Shell 40W Smart City Street Lighting

Large Image :  Led Reflectors Publica Outdoor COB Led Street Light Shell 40W Smart City Street Lighting

Product Details:
Place of Origin: China
Brand Name: DIE CASTING MAN
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-08-40
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment
Supply Ability: 10000PCS/Month.
Detailed Product Description
Power: 40W Material: Die Casting Aluminum Body + Glass Lens
Net Weight: 2.0kgs Gross Weight: 2.4kgs
Installation Pipe: φ60mm Installation Height: 4~7m
Ra: ≥70 Led Lifetiem: 50000h
High Light:

Led COB Street Light Shell

,

Publica COB Street Light

,

Outdoor COB Street Lighting

Part Number: YASL-08-50
Production Lead Time: 7-30 Days
MOQ: 1 PCS
Shipping: EXW / FOB NINGBO
Finish Color: Double gray;Sandy black;



First of all, allow me to introduce our factory to you:

Led Reflectors Publica Outdoor COB Led Street Light Shell 40W Smart City Street Lighting 0

IP65 Waterproof Outdoor COB led street light 150 watt customisable die-casting mould led street light housing​



Material: ADC12 Aluminum Wattage: 30W
IP: 65 CRI: >70
Color Temperature: 3000/40000/6500K Input Voltage: AC90 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -40℃ - 50℃
Working Ambient Humidity: 20% - 90%RH LED Lifetime: 5000h



Product Description:





Code ZHSL-08-30 ZHSL-08-50 ZHSL-08-80 ZHSL-08-120 ZHSL-08-180
Power 30W 50W 80W 120W 180W
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000/4000/6500K 3000/4000/6500K
Efficiency >120LM/W >120LM/W >120LM/W >120LM/W >120LM/W
Voltage AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz AC90-305V 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
CRI(Ra) Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70
Ambient Temperature -20-50℃ -20-50℃ -20-50℃ -20-50℃ -20-50℃
Ambient Humidity 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
Lifetime(hrs) 50000hrs 50000hrs 50000hrs 50000hrs 50000hrs
IP Rate IP66 IP66 IP66 IP66 IP65
Installation Pipe Diameter Φ40mm Φ60mm Φ60mm Φ60mm Φ60mm
Installation Height 4-7m 4-7m 6-8m 10-12m 10-14m
Net Weight 1.8kg 1.8kg 2.8kg 4.4kg 6.2kg
Gross Weight 2.1kg 2.1kg 3.3kg 5.2kg 7.0kg
Packing Size(mm) 445*200*205/2PCS 545*230*120 665*300*145 765*300*145 920*355*150






Luminaire type
A bracket mounted type luminaire for lighting roadways.

Applications
The luminaries can be used for lighting of important roadways, secondary roads, roads in industrial & residential areas etc.

Mounting methods
Suitable for side entry, pole mounting.

Optical system
MOC of optics is borosilicate glass.

LED system
Luminaire luminous flux 16500 lm, luminaire wattage 150W, luminous efficiency of luminaire 110 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.

Luminaire body
Luminaire body is made up of high pressure die cast aluminium, with side contour, with closed appearance, highly weather resistant, powder-coated.



Led Reflectors Publica Outdoor COB Led Street Light Shell 40W Smart City Street Lighting 1

Led Reflectors Publica Outdoor COB Led Street Light Shell 40W Smart City Street Lighting 2



LED Engine Module

· LED life time of 50,000hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -40º C to +50º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available

Electrical

· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available

LED Engine Module

· LED life time of 50,000hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -40º C to +50º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available

Electrical

· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available
