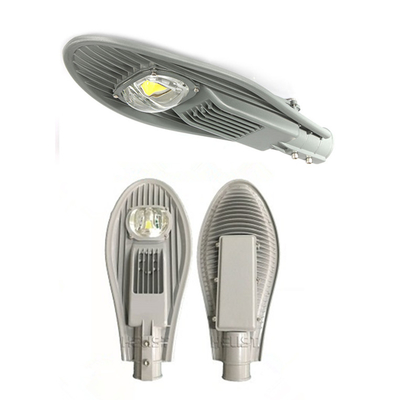

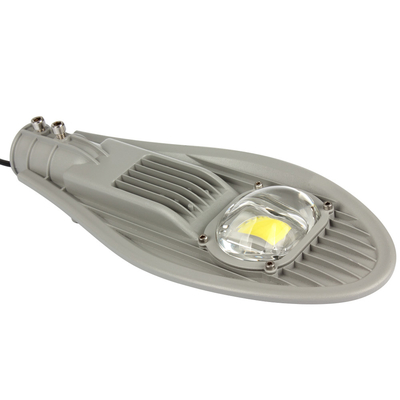

50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road

50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road
50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road 50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road

Large Image :  50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road

Product Details:
Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE, RoHs, ENEC,CB
Model Number: YASL-08-50
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO
Supply Ability: 10000PCS/Month.
Detailed Product Description
Wattage: 30w CCT: 3000-6500k
Power Factor: >0.95 CRI: >70
Protection Grade: IP66 Material: Die-casting Aluminium + Tempered Glass
High Light:

High Lumen COB Led Street Light

,

Ac Smart City COB Street Light

,

Road COB Led Light Shell

New Design Outdoor Aluminum Ip65 Waterproof 30w COB Led Street Light

Product Description:


CodeZHSL-08-30ZHSL-08-50ZHSL-08-80ZHSL-08-120ZHSL-08-180
Power30W50W80W120W180W
Color Temperature3000-6500K3000-6500K3000-6500K3000/4000/6500K3000/4000/6500K
Efficiency>120LM/W>120LM/W>120LM/W>120LM/W>120LM/W
VoltageAC90-305V 50/60HzAC90-305V 50/60HzAC90-305V 50/60HzAC90-305V 50/60HzAC90-305V 50/60Hz
Power FactorPF≥0.95PF≥0.95PF≥0.95PF≥0.95PF≥0.95
CRI(Ra)Ra≥70Ra≥70Ra≥70Ra≥70Ra≥70
Ambient Temperature-20-50℃-20-50℃-20-50℃-20-50℃-20-50℃
Ambient Humidity20%-90%RH20%-90%RH20%-90%RH20%-90%RH20%-90%RH
Lifetime(hrs)50000hrs50000hrs50000hrs50000hrs50000hrs
IP RateIP66IP66IP66IP66IP65
Installation Pipe DiameterΦ40mmΦ60mmΦ60mmΦ60mmΦ60mm
Installation Height4-7m4-7m6-8m10-12m10-14m
Net Weight1.8kg1.8kg2.8kg4.4kg6.2kg
Gross Weight2.1kg2.1kg3.3kg5.2kg7.0kg
Packing Size(mm)445*200*205/2PCS545*230*120665*300*145765*300*145920*355*150




CodeZHSL-08-30ZHSL-08-50ZHSL-08-80ZHSL-08-120ZHSL-08-180
L (mm)401500620720881
W (mm)171215260280300
H (mm)58668295101



COB Led Street Light
Item:YASL-08Lamp Power:30-200W
Input Wattage:AC85V-265V
Frequency Range:50/60Hz
Power Factor:PF≥ 0.95
Driver Brand:Sonsen/Inventronic/Meanwell
1. Repair light without main power off by help of cut off switch device.
2. The light body could be opened and inspected by hand with tool free.
3. Integrated housing design increases heat dissipation during working condition
4. Unique back design effectively enhances cleaning and water filtration under severe operating conditions.
5. High led luminous efficiency 150LM/W and high color temperature 6500K are workable for our light.
6. Reserved interface on back of housing for smart control like PLC, ZIGBEE, GPRS, NB-LOT and LoRa.


50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road 0
50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road 1
50w High Lumen COB Led Street Light Fixtures Ac Smart City Sensor For Road 2
