Product Details:
Payment & Shipping Terms:
|
| Model: | SL-13-100 | Wattage: | 100w 80w |
|---|---|---|---|
| Glass: | Tempered Glass 4mm | Gasket: | Silcone |
| Optic: | Type II | Lens: | 2*2 |
| High Light: | Powder Coating LED Street Light Housing,Anti Corrosion Aluminium Street Light Housing,Die Casting Aluminum Street Light 80w |
||

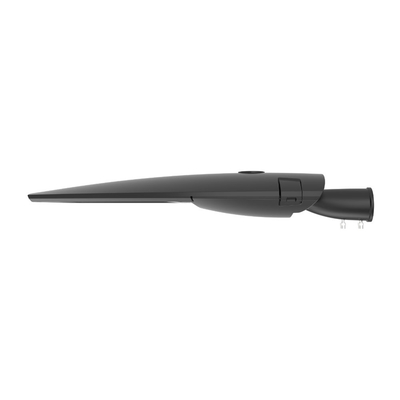

New 80w die casting aluminium body housing with power-coating and anti-corrosion treatment Product Specifications:
| Product Code | YASL-13-50 | YASL-13-100 | YASL-13-150 |
| Input Wattage | 50W | 100W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 5750-6250lm | 11500-12500lm | 16500-18750lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of Working Condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | ⌀60mm | ⌀60mm | ⌀70mm |
| Installation Height | 4-8m | 6-10m | 8-12m |
| Net Weight | 3.9kg | 5.4kg | 9.8kg |
| Gross Weight | 4.6kg | 6.5kg | 11.5kg |
| Packing Size(mm) | 695×285×130 | 790×340×135 | 970×415×180 |
| Power: | 50W 60w |
| Voltage: | 85-265V |
| CRI: | ≥70 |
| Color Temperature(CCT): | 6000K (Daylight Alert) |
| Lamp Luminous Efficiency(lm/w): | 130 |
| Color Rendering Index(Ra): | 70 |
| Support Dimmer: | YES |
| Lighting solutions service: | Lighting and circuitry design, Agi32 layout, Project Installation |
| Lifespan (hours): | 36000 |
| Working Time (hours): | 30000 |
| Place of Origin: | Ningbo,China |
| Light Source: | LED |
| Input Voltage(V): | AC85-265V |
| Lamp Luminous Flux(lm): | 120-130LM/W |
| CRI (Ra>): | 80 |
| Working Temperature(℃): | -30℃- +50℃ |
| Working Lifetime(Hour): | 50000 |
| IP Rating: | IP66 |
| Certification: | CE, ROHS, CB, ENENC |
| Application: | Garden, ROAD |
| Power Supply: | AC85-265V |
| Product name: | High Quality Aluminum Outdoor Waterproof Ip66 40 watt led street lamp |
| Color: | Light Grey, Black, Dark Grey, Black Grey |
| Color Temperature: | 2700-6500 |
| Material: | die-casting aluminum |
| Size: | 641*241*114mm |
Product Introduction
This Street Light Die Casting Housing was the latest invention and high quality with TUV CE ENEC CB IP66 and offer 5 years Warranty.
It was made up with Die Casting Aluminium and Tempered glass. We devoted ourselves to the lighting industry many years, covering most of Europe, Middle East, Asia and Africa Market. We are expecting become your long-term partner in china.
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-15°to+15°
 |
|
| 90 degree installation | Front |
|
|
| Back | Side |
|
|
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S |
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M |
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |
Product Size
| Product Code | YASL-13-50 | YASL-13-100 | YASL-13-150 |
| L(mm) | 641 | 738 | 923 |
| W(mm) | 242 | 289 | 361 |
| H(mm) | 127 | 129 | 157 |
Color Temperature:3000-6500K
Lumen: 4200LM (140LM/W)
Input Voltage: AC90-305V 50/60Hz
Power Factor: PF≥0.95
Color Rendering Index: Ra≥70
Temperature of Working Condition:-40-50°C
Protection Grade:IP66
Product Feature And Application

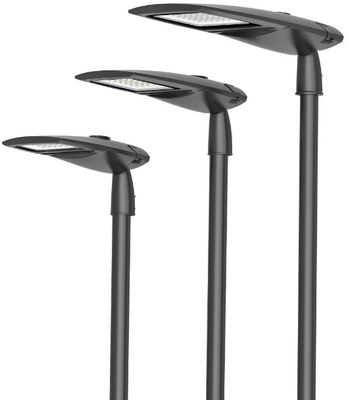

LED Street Lighitng are used in main roads, streets, schools, gardens, factories, courtyards and so on.
Product Details
LED Street Lighting made of Die Casting Aliuminium and Tempered Glass
Product Qualification
TUV CE CB ENEC CERTIFICATE
ISO9001
Deliver,Shipping And Serving
Packing by Standard Outter Shipping Carton with Foam
By Sea or By Air both Avilable
Production date Within 25 days once confirming the order
Product Features
● Meet the installation standard of CSA016, and realize the exchange of the light engine (module);
● Wide range power supply voltage adaptability, constant current drive;
● The light body is made of aluminum alloy with high mechanical strength and equipped
with PC lens with high light transmittance,
● Beautiful and generous on appearance to improve the safety and impact resistance of
the lamp;
● Good air convection and good heat dissipation effect with hollow structure design;
Applicable Place and Environment
● Widely used in street, road, park, industrial area lighting, etc.
● -30℃～45℃,≤98%RH
