120w 150W Outdoor Led Street Light Lamp Bulb High Luminus Decorative

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

120w 150W Outdoor Led Street Light Lamp Bulb High Luminus Decorative

120w 150W Outdoor  Led Street Light Lamp Bulb High Luminus Decorative
120w 150W Outdoor  Led Street Light Lamp Bulb High Luminus Decorative

Large Image :  120w 150W Outdoor Led Street Light Lamp Bulb High Luminus Decorative

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE ROHS ENEC
Model Number: YASL-14
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD28~58/PCS
Packaging Details: PE bag+bubble+carton
Delivery Time: 25 days
Supply Ability: 30pcs/per day
Detailed Product Description
Material: ADC 12 Aluminum Input Wattaage: 50~180W
Color Temperature: 3000/4000/6500K LED Lifetime: 50000h
Protection Grade: IP66 Temperature Of Working Condition: -40~50℃
Power Factor: PF≥0.95 Installation Pipe Diameter: φ60~70mm
Input Voltage: AC90~305V IK: 08
High Light:

120w Led Street Light Lamp


High Luminus Led Street Light Lamp


150W Road Outdoor Lights

led street light lamp for road 120w 150W Outdoor LED Street Lights Bulb High Luminuis IP66 Waterproof Decorative


50W 60W 70W 80W 90W 100W 120W 150W 180W

Road Outdoor LED street light housing IP66 Aluminum die-casting housing

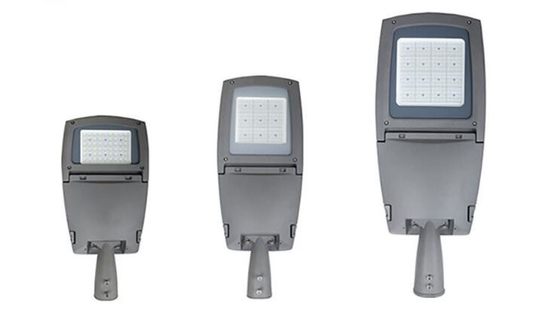

*For this series, we designed total of three sizes models, to deal with three different wattage requirements,The minimum power can be 50 watts, the maximum can reach 180 watts.


Prodcut Specification


Material: ADC12 Aluminum Wattage: 50~180W
IP: 66 CRI: ≥70
Color Temperature: 3000/40000/6500K Input Voltage: AC90 - 265V
Frequency Range: 50 - 60Hz Working Ambient Temperature: -40℃ - 50℃
Working Ambient Humidity: 20% - 90%RH LED Lifetime: 50000h



Part Number: YASL-14
Production Lead Time: 7-30 Days
Shipping: EXW / FOB NINGBO
Finish Color: Double gray;Sandy black;



















Prodcut Code YASL-14-40 YASL-14-80 YASL-14-120
Input Wattage 40W/50W/60W 70W/80W/90W 100W120W/150W
Color Temperature 3000/4000/6500K 3000/4000/6500K 3000/4000/6500K
Luminous Flux 5750~6250lm 11500~12500lm 16500~18750lm
Input Voltage AC90~305V AC90~305V AC90~305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95
Color Rendering Index Ra≥70 Ra≥70 Ra≥70
Working Temperature -40~50℃ -40~50℃ -40~50℃
Humidity of Working Condition 20%~90%RH 20%~90%RH 20%~90%RH
LED Lifetime 50000H 50000H 50000H
Protection Grade IP66 IP66 IP66
Installation Pipe Diameter φ60mm φ60mm φ70mm
Installation Height 4~8m 6~10m 8~12m
Net Weight 4.6kgs 6.0kgs 9.8kgs
Gross Weight 5.0kgs 6.5kgs 10.6kgs
Product Size 620x287x118mm 738x289x118mm 922x362x140mm


About Die-casting Man Lighting factory:



120w 150W Outdoor  Led Street Light Lamp Bulb High Luminus Decorative 0

120w 150W Outdoor  Led Street Light Lamp Bulb High Luminus Decorative 1

Is there anything else you want to know about this lamp?


1. Q:What is the waterproof rating?

A: It’s can pass IP66

2. Q:How many years of warranty do you promise?

A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

3. Q:What is the grade of your powder coating?

A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

4. Q:What's the packing you use?

A: Our packing is PE bags with foam and carton box,we will ensure it safe.

5. Q:What is your usual lead time?

A: 25 days for regular products, 10 days extra for special requirements.

6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

7. Q:What brand of driver do you use?

A: The brand we usually use is Inventronics,Sosen these China local brand,and ,MEANWELL these international brand,Customers can also specify brands,it’s no problem.

8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?

A: The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.

9. Q:Ok,that’s good,So if I want to specify a color,will you charge extra cost?

A: will not,but we will require MOQ500 pcs.

10. Q:ok,last question,Do you accept OEM?

A: Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.



· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation


· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available

120w 150W Outdoor  Led Street Light Lamp Bulb High Luminus Decorative 2
