Adjustable Street Light Housing Corrosion Resistant Side Mounted Pole Top Luminaire

Name: Adjustable Street Light Housing Corrosion Resistant Side Mounted Pole Top Luminaire
Brand: die-casting man
SKU: SL-19-50
Price: 1 USD
Availability: InStock
Rating: 5 (129 reviews)

Large Image : Adjustable Street Light Housing Corrosion Resistant Side Mounted Pole Top Luminaire

Product Details:

Place of Origin:	NINGBO,CHINA
Brand Name:	die-casting man
Certification:	CE,ROHS,ENEC
Model Number:	SL-19-50

Payment & Shipping Terms:

Minimum Order Quantity:	100
Packaging Details:	1PC/FOAM/CTN
Delivery Time:	30days
Payment Terms:	T/T
Supply Ability:	100000/MONTH

Contact Now

Detailed Product Description

Item No:	ZHSL-19-50	Watt:	60W
Pipe Diameter:	Φ 60MM	Product Size:	577233103mm
NW:	3.7kgs	GW:	4.2kgs
Material:	Aluminum	Luminous Flux:	5500-6250lm
High Light:	Adjustable Street Light Housing Corrosion Resistant , 60W Street Light Housing , Aluminum LED Street Lamp Housing

Outdoor Street Lights and Parking Lot Lights | Die casting man

Type of Protection: IP 66

Protection Class: II

Impact Protection: IK08

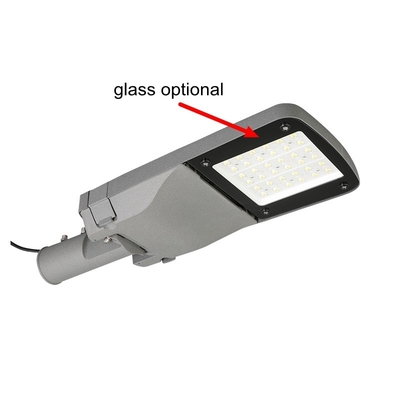

Housing made of corrosion resistant pressure die-cast aluminium (seawater resistant powder- coated). Pole-top fixing with integrated cable routing and stainless steel screws. Tilt angle can be adjusted and locked in 15 degree steps featuring angular scale. Cover clear tempered glass. Tool-free maintenance / replacement with disconnect plug .
Additional advantages

Installation on the pole as pole-top or side-mounted pole-top luminaire. Adjustable and lockable in 15° steps:

Both horizontal and vertical installing ways tilted from -15° to +15° (horizontal and vertical ways)

Two diameters available for pole top installation (45 mm and 60 mm)

Smart lighting: Dali ,Dali Zhaga, 1-10V, PWM can be requested on dimming type / NEMA sockets available for the integration of components for light management systems or sensors.Power interruption when the housing is opened.

Tool-free maintenance / replacement with disconnect plug (Power interruption when the housing is opened)

Seawater resistant coating

Control gear with integrated surge protection up to 10 kV or 20KV. (can be requested when you need completely luminaires)

Operating range: -40°C to +45°C.

IP66 CE RoHS

Street light empty housing kit including follow parts.

Die casting housing shell, Frame , rotating bracket 60mm and 50 mm availablesilicone gasket x 2 pieces

tempered glass

gear tray or clips

screws and export safety package

Product Specification

Product code	YASL-19-30 M	YASL-19-50 M	YASL-19-80 M	YASL-19-150 M
Input Wattage	50W	60W	100W	200W
Color Temperature	2700～6500K	2700～6500K	2700～6500K	2700～6500K
Luminous Flux	6500-7000lm	13000-15000lm	13000-15000lm	26000-30000lm
Input Voltage	AC90～305V	AC90～305V	AC90～305V	AC90～305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40～50℃	-40～50℃	-40～50℃	-40～50℃
Humidity of Working Condition	20%～90%RH	20%～90%RH	20%～90%RH	20%～90%RH
LED Lifetime	50000h	50000h	50000h	50000h
Protectin Grade	IP66	IP66	IP66	IP66
Protection level	IK08/09/10	IK08/09/10	IK08/09/10	IK08/09/10
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm	φ45/60mm
Installation Height	4-6m	5-8m	6-10m	8-14m
Net Weight	3.1kgs	4.1kgs	5.0kgs	6.7kgs
Gross Weight	3.5kgs	4.6kgs	5.5kgs	7.5kgs
Packing Size(m m)	580250165	630280155	670310155	820340155
Specification of SL19 family for your reference. Kindly notice this information are for your reference only

INSTALL.

This fixture is mounted on a 4-14m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15°

Fixture has internal clamps to secure itself to pole.

This 150 Watt LED STREET LIGHT is ideal for residential street and parking lot outdoor lighting applications. It is

also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree. This fixture has 1000 hours salt water spray test. Fixture is tough and durable rated at IK08 impact rating.

ENERGY SAVINGS.

High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.

Compared to metal halide lamps ,the average savings obtanined using LED Lighting is approx 70% ,90% to halogen lamps .

This fixture provides a lumen output equal to 400 Watt Metal Halide and can reduce your lighting bill when

compared to metal halide and hps lighting.

WARRANTY / CERTIFICATIONS.

LED Lighting Supply provides a 5 year warranty along with CE and Rebate Eligible certifications.

Product Size	L (mm)	W (mm)	H(mm)
YASL-19-30 M	459	186	119
YASL-19-50 M	577	233	103
YASL-19-80 M	627	271	103
YASL-19-150 M	768	301	104

Accessories you can select.
