NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsLed Stadium Flood Light

High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

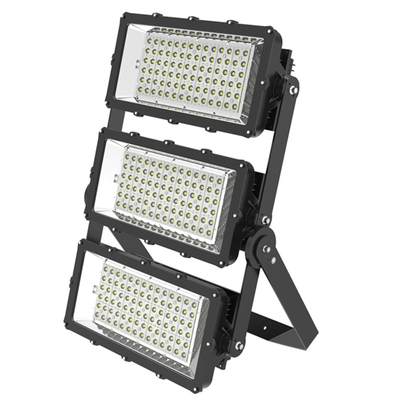

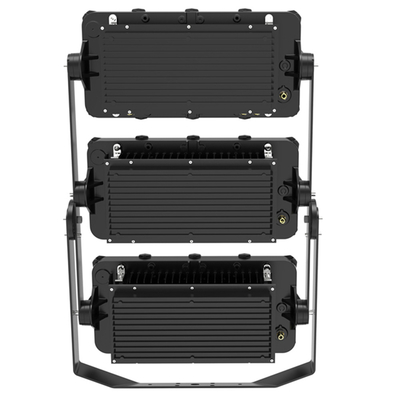

High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver

High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver
High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver

Large Image :  High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting man
Certification: CE, RoHs
Model Number: HP-01-600
Payment & Shipping Terms:
Minimum Order Quantity: 1-5pcs
Price: $3.83-$11.29/sets
Packaging Details: colorful box
Delivery Time: 7days after final confirm
Supply Ability: 30000sets per month
Detailed Product Description
Power: 600W Application: Production Halls
Beam Angle: 120° Protection Grade: IP66
Ik Rating: IK08 LED Lifetime: 50000h
High Light:

1000w Led Flood Light

,

3030 Chips Led Flood Light

,

Adjustable Led Stadium Flood Light

High Mast



Description:



300W Outdoor Led Floodlight with 3030 LED Chips high quality die-casting aluminum body,IP65,3Years warranty.



1. High light intensity , simple designs and ideally suited.


2. High quality Die casting aluminum boday with anti-corrosiontreatment and with electrostatic plastic coating.



3. LED Floodlight housing can make 200W.



4. Highly polished aluminum reflector.



5. Adjustable single bracket could make the light for 120 degree around.



6. High Efficient and power factor led power supply .



7. Obtain a 50-70% energy saving compared with halogen lamps.



8. Replace traditional SON and Metal Halide which consume 400W.





Applications:



LED high bay luminaire for factory buildings, production halls, assembly halls, storage buildings, sales areas, exhibtion spaces, ...



Specifications



Model Number

HP-01-600

Electrical Specifications

LED QTY

1008pcs

TotaLPower consumption

600W

Operation Voltage

85-265VAC

Operating Humidity

10%~90%

Working Temperature

-30 ~ 50°C

Power Fact(PF)

>0.9

Driver Efficiency

> 0.9

Photometric Specifications

LED Luminous Flux

20000 lm - Initial



20000 lm - Maintain

Led Luminous Efficiency

>70LM/W

CRI

Ra ≥ 70

LED Color

3000k-6500k

Beam Angle

120 degree

Mechanical Specifications

IP Rating

IP65

Warranty

3Years

Heat Radiator

die-casting body as heat sink

Lens

Patented anti-glare optic lense

Fixture Dimension

115.06*141.9*51.14MM

Fixture Weight

32KGS



Packing Information

Packing Type

1pcs /ctn

Packing Dimension

69*56*44CM

Packing Weight

37KGS


Product Code YAHP-01-200 YAHP-01-400 YAHP-01-600
Wattage input 200W 400W 600W
Color temperature 3000-6500K 3000-6500K 3000-6500K
Angle of light 30 ° / 60 ° / 90 ° 30 ° / 60 ° / 90 ° 30 ° / 60 ° / 90 °
Luminous flux 69000-75000lm 69000-75000lm 69000-75000lm
Input voltage AC90-305V AC90-305V AC90-305V
Frequency band 50 / 60HZ 50 / 60HZ 50 / 60HZ
Power factor PF≥0.95 PF≥0.95 PF≥0.95
Color rendering Ra≥70 Ra≥70 Ra≥70
Working condition temperature -40-50 °C -40-50 °C -40-50 °C
Moisture of working conditions 20٪ -90٪ RH 20٪ -90٪ RH 20٪ -90٪ RH
LED lifespan 50000H 50000H 50000H
Degree of protection IP66 IP66 IP66
Installation height 10-15M 15-20M 20-25m
Net weight 12.5KG 24.0Kg 36.0Kg
Total weight 13.0Kg 24.8Kg 37.0Kg
Packing size (mm) 350 × 600 × 240 620 × 660 × 240 950 × 660 × 240

When innovation becomes sustainable
HP-01 is an LED Lighting for suspension installation on a very high mounting height. The overhead lighting system is in fact the perfect solution for illuminating spaces with high ceilings. The perfect solution for high mast lighting with high energy efficiency.

Suspended urban outdoor high mast lighting
HP-01 is a kind of the HP(High Mast) field lighting fixture series, a complete system designed for a wide range of pole-top, bracket and suspension applications. Usually used to illuminate a large area from a high installation height for storage, transportation , and pedestrian use and safety.

What is High Mast Lighting ? And what benefits of using high mast lighting ?

High mast lighting is a kind of field lighting fixture, usually used to illuminate a larger area from a high installation height for storage, transportation, and pedestrian use and safety. High mast fixtures are usually installed on poles from 40 feet to 150 feet high, with 4 to 16 fixtures on each pole. This type of outdoor lighting is often used in parking lots of municipalities, ports, municipalities, and large venues such as stadiums and sports facilities.

Various industries and facilities require high mast lighting. Some of the most common are:

This type outdoor lighting is oftern used in
Parking lots
Ports
Urban
High Way side
Stadiums
Sports facilities
High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver 0

Photometric
High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver 1
High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver 2
High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver 3
