150w 300w Outdoor Area Lighting With 3030 / 5050 Chip Adjustable Angle ±20 Degrees

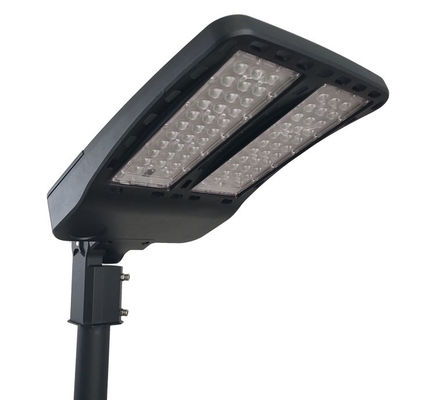

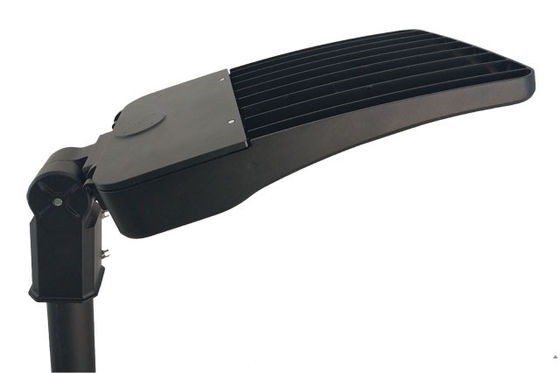

Large Image : 150w 300w Outdoor Area Lighting With 3030 / 5050 Chip Adjustable Angle ±20 Degrees

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting man
Certification:	CE,ROHS,UL
Model Number:	YASL-17-300

Payment & Shipping Terms:

Minimum Order Quantity:	1-5pcs
Price:	USD+35~39+PCS
Packaging Details:	Carton box with foam
Delivery Time:	20days after final confirm
Supply Ability:	3000sets per month

Contact Now

Detailed Product Description

Input Voltage:	AC90-305V	Frequency Range:	50 - 60Hz
Color Temperature:	3000~6500K	Temperature Of Working Condition:	-40℃~50℃
LED Lifetime:	50000H	Protection Grade:	IP66
Warranty:	5/8 Years(Optional）
Highlight:	5050 Chip Outdoor Area Lighting , 150w Outdoor Area Lighting , Aluminum Led Road Light 6500K

300W IP66 LED Street Light Module
Product Description
The SL-17 series is a cost-effective outdoor lighting solution engineered for parking lot and street illumination applications.

Key Features & Specifications

Power & Protection: 300W output with IP66 ingress protection rating, ensuring reliable performance in harsh outdoor environments.
Heat Dissipation: Equipped with an aluminum heat sink for efficient thermal management, safeguarding LED longevity and consistent luminous efficacy.
Material: Die-cast aluminum construction, offering excellent salt spray corrosion resistance, anti-aging properties, and high thermal conductivity.
LED Efficiency: Delivers 130 lumens per watt (lm/W), ensuring energy-efficient and bright illumination for main road use.

Product Code	YASL-17-150	YASL-17-300
Input Wattage	150W	300W
Color Temperature	3000-6500K	3000-6500K
Luminous Flux	18000-21000lm	890000-45000lm
Input Voltage	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70
Temperature of working condition	-40-50℃	-40-50℃
Humidity of working condition	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h
Protection Grade	IP66	IP66
Installation Pipe Diameter	Φ60mm	Φ60mm
Installation Height	4-6m	8-12m
Net Weight	6.3kgs	8.9kgs
Gross Weight	7.0kgs	9.5kgs
Packing Size(mm)	530350130	630400130
Product Size(mm)	68330588	783355140

150w 300w Outdoor Area Lighting With 3030 / 5050 Chip Adjustable Angle ±20 Degrees 0

150w 300w Outdoor Area Lighting With 3030 / 5050 Chip Adjustable Angle ±20 Degrees 1

150w 300w Outdoor Area Lighting With 3030 / 5050 Chip Adjustable Angle ±20 Degrees 2
