Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC90-305V | Frequency Range: | 50 - 60Hz |
|---|---|---|---|
| Color Temperature: | 3000~6500K | Temperature Of Working Condition: | -40℃~50℃ |
| LED Lifetime: | 50000H | Protection Grade: | IP66 |
| High Light: | 5050 Chip Outdoor Area Lighting,150w Outdoor Area Lighting,Aluminum Led Road Light 6500K |
||
Product Description:

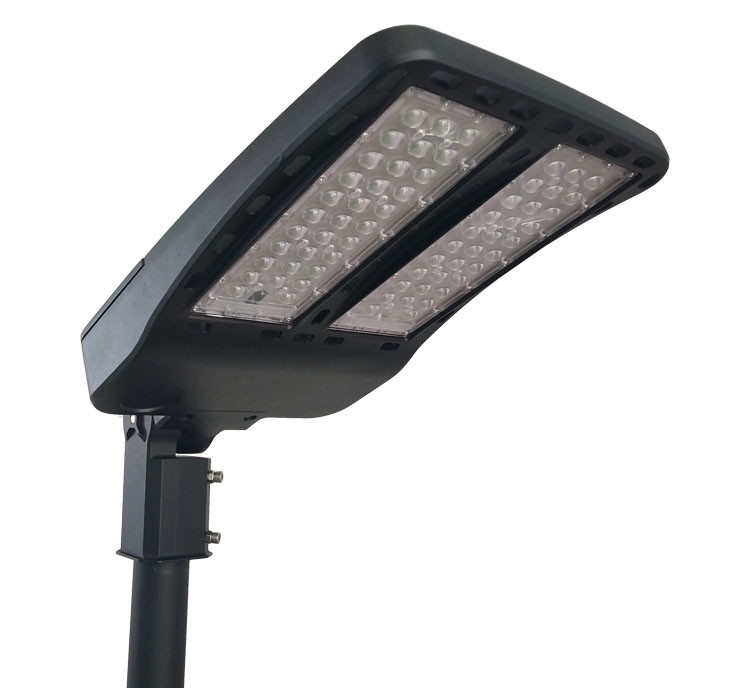

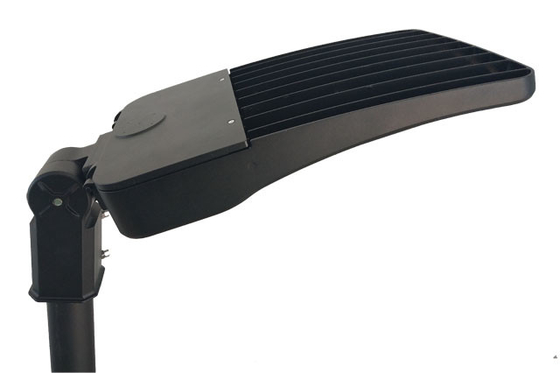

This SL-17 series is the most economical outdoor luminaire suitable for parking lot lighting, and street lighting.
Individual engines with aluminum heatsinks provide easy thermal management.
MATERIAL
Aluminum Die Casting. Salt mist resistance & anti aging. High thermal conductivity.
LED EFFICIENCY
130 lm/W
| Product Code | YASL-17-150 | YASL-17-300 |
| Input Wattage | 150W | 300W |
| Color Temperature | 3000-6500K | 3000-6500K |
| Luminous Flux | 18000-21000lm | 890000-45000lm |
| Input Voltage | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h |
| Protection Grade | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm |
| Installation Height | 4-6m | 8-12m |
| Net Weight | 6.3kgs | 8.9kgs |
| Gross Weight | 7.0kgs | 9.5kgs |
| Packing Size(mm) | 530*350*130 | 630*400*130 |
| Product Size(mm) | 683*305*88 | 783*355*140 |
