Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC90-305V | Frequency Range: | 50 - 60Hz |
|---|---|---|---|
| Color Temperature: | 3000~6500K | Temperature Of Working Condition: | -40℃~50℃ |
| LED Lifetime: | 50000H | Protection Grade: | IP66 |
| Power: | 150w | Material: | Die-casting Aluminium+tempered Glass |
| High Light: | 220V Outdoor Road Light,LED Outdoor Area Lighting 300w,Tempered Glass Cover Outdoor Area Lighting |
||
Product Description:

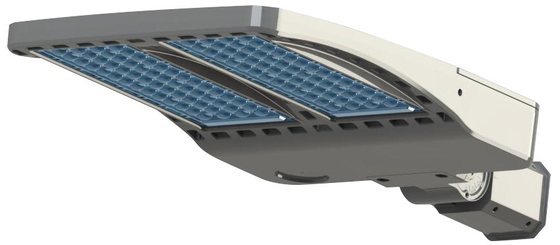

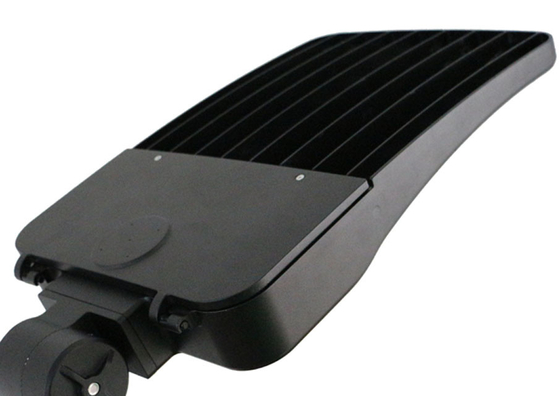

This SL-17 series is the most economical outdoor luminaire suitable for parking lot lighting, and street lighting.
Individual engines with aluminum heatsinks provide easy thermal management.
MATERIAL
Aluminum Die Casting. Salt mist resistance & anti aging. High thermal conductivity.
LED EFFICIENCY
130 lm/W
| Product Code | 17A-150 | 17B-150 | 17C-150 | 17D-150 | 17A-300 | 17B-300 | 17C-300 | 17D-300 |
| Input Wattage | 150W | 150W | ||||||
| Color Temperature | 3000-6500K | 3000-6500K | ||||||
| Luminous Flux | 18000-21000 lm | 18000-21000 lm | ||||||
| Input Voltage | AC90-305V | AC90-305V | ||||||
| Frequency Range | 50/60Hz | 50/60Hz | ||||||
| Power Factor | PF≥0.95 | PF≥0.95 | ||||||
| Color rendering index | Ra≥70 | Ra≥70 | ||||||
| Temperature of | -40-50ºC | -40-50ºC | ||||||
| Working Condition | ||||||||
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH | ||||||
| LED Lifetime | 50000h | 50000h | ||||||
| Protection Grade | IP66 | IP66 | ||||||
| Installation Size | Reference figure A | 60mm | Reference figure c | Reference figure d | Reference figure A | 60mm | Reference figure c | Reference figure d |
| Installation Height | 8-12m | 10-14m | ||||||
| Net Weight | 5.8kg | 6.3kg | 5.8kg | 6.3kg | 8.4kg | 8.9kg | 8.4kg | 8.9kg |
| Gross Weight | 6.5kg | 7.0kg | 6.5kg | 7.0kg | 9.0kg | 9.5kg | 9.0kg | 9.5kg |
| Length(mm) | 625 | 683 | 631 | 627 | 725 | 783 | 731 | 727 |
| Packing Size(mm) | 530×350×130 | 630×400×130 | ||||||
| Product Code | YASL-17-150 | YASL-17-300 |
| Input Wattage | 150W | 300W |
| Color Temperature | 3000-6500K | 3000-6500K |
| Luminous Flux | 18000-21000lm | 890000-45000lm |
| Input Voltage | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h |
| Protection Grade | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm |
| Installation Height | 4-6m | 8-12m |
| Net Weight | 6.3kgs | 8.9kgs |
| Gross Weight | 7.0kgs | 9.5kgs |
| Packing Size(mm) | 530*350*130 | 630*400*130 |
| Product Size(mm) | 683*305*88 | 783*355*140 |
| item | SL-17-150 |
| Color Temperature(CCT) | 3000-6500K |
| Lamp Luminous Efficiency(lm/w) | 120Im/w |
| Support Dimmer | Yes |
| Lighting solutions service | Lighting and circuitry design, auto CAD layout, Project Installation |
| Lifespan (hours) | 50000h |
| Working Time (hours) | 50000h |
| Light Source | LED |
| Input Voltage(V) | AC 90-305V |
| Lamp Luminous Flux(lm) | 18000-21000Im |
| CRI (Ra>) | 70 |
| Working Temperature(℃) | -90 |
| IP Rating | IP66 |
| Certification | ce, RoHS |
| Warranty(Year) | 5-Year |
| Place of Origin | Zhejiang, China |
| Brand Name | Die-casting Man |
| Model Number | ZHSL-17-150 |
| Beam Angle(°) | -40 |
| Application | ROAD |
| Color | Double Grey, Sandy Black, Matt Silver |
| Power Supply | AC |
| Material | Die-Cast Aluminum body+ PC lens |
| Power Factor | PF≥0.95 |
