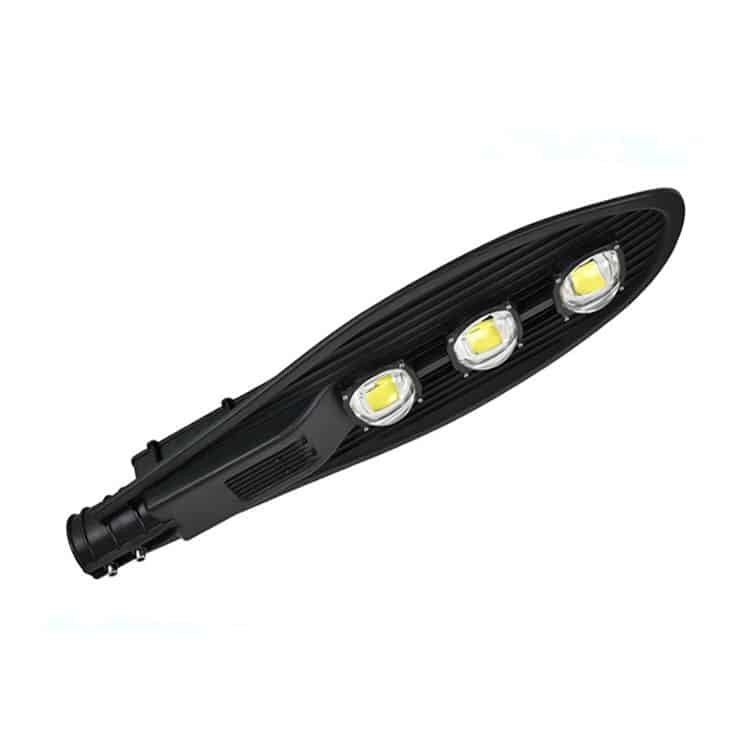

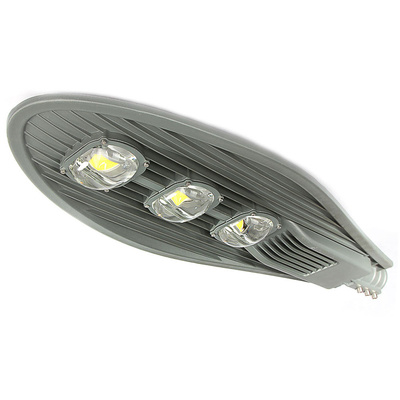

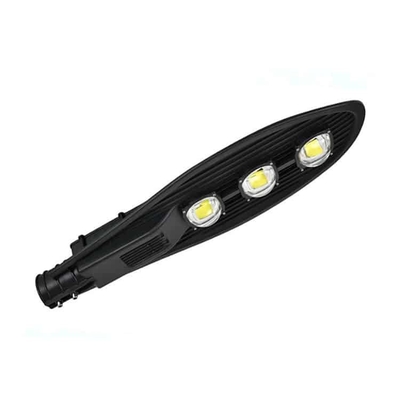

180W Led Street Light Shell Toughed Glass Cover Die Cast Aluminum Body

Large Image : 180W Led Street Light Shell Toughed Glass Cover Die Cast Aluminum Body

Product Details:

Place of Origin:	China
Brand Name:	Die Casting Man/OEM
Certification:	CE,ROHS, UL,SAA
Model Number:	ZHSL-08-180

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	Carton box with foam
Delivery Time:	7-30 days base on order quantity
Payment Terms:	By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability:	10000PCS/Month.

Contact Now

Detailed Product Description

Manufacturer:	Ninghai Zhouhua Die Casting Co.,Ltd	Material:	GB102 Aluminum
Wattage:	180W	Fixture Color:	Light Grey
LED Color:	WW/NW/CW	CRI:	>70
Input Voltage:	AC85 - 265V	Frequency Range:	50 - 60Hz
Working Ambient Humidity:	10% - 90%	Working Ambient Temperature:	-30℃ - 50℃
Highlight:	180w Led Street Light Shell , Aluminum Led Street Lighting Shell , GB102 LED Street Light Housing

Aluminum IP65 High Power Led Street Light 60 Watt Natural White

ZHSL-08

It has 30W, 50W, 80W,120W,180W from 5 bodies.

Installing Ways: Both Horizontal and Vertical available and adjustable angle-10°to 10°
Material:Die casting Aluminum body.
160° 140° is avaiable.

Product Details

Product Code	ZHSL-08-30	ZHSL-08-50	ZHSL-08-80	ZHSL-08-120	ZHSL-08-180
Input Wattage	30W	50W	80W	120W	180W
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	3150-3600lm	5250-6000 lm	8400-9600 lm	12600-14400lm	18900-21600lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40-50℃	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66	IP66
Installation Pipe Diameter	ф40mm	ф50mm	ф60mm	ф60mm	ф70mm
Installation Height	4-7m	5-8m	6-10m	8-12m	10-14m
Net Weight	2.0kg	2.7kg	3.7kg	4.8kg	6.9kg
Gross Weight	2.4kg	3.0kg	4.0kg	5.2kg	7.6kg
Packing Size(mm)	440×195×220	545×230×115	665×300×140	765×300×140	905×355×150

180W Led Street Light Shell Toughed Glass Cover Die Cast Aluminum Body 0

It is consist of a die-cast aluminum body and toughed glass cover, making it work well in harsh outdoor environments. The highest lumens output also will save much energy. This series includes 50W 100W 150W 200W 250Watt, that can meet the needs of most outdoor street lighting projects.

Materials and Finished

Heat sink (housing): Die-cast aluminum housing, Grey/Black powder coated.
Lens/diffuser: Toughed glass, Anti-UV. High light transmittance reaches more than 90%, strong sealing performance.
With wide and narrow light distribution available.
Using high-brightness Bridgelux LED COB Chips OR Integrated chips with SMD3030, highest lumens output, lowest light decline, longest service life.
Isolated led driver with Overvoltage protection, anti-surge
Stainless steel screws
0.75²*3 input cable, High and low-temperature resistance, good insulation performance

Electrical & Optical

Working voltage:100-277VAC 50/60Hz or 220-240VAC 50/60Hz.
Power Factor (PF):>0.9
THD:<15%
CRI:>80
SDCM:<5
Efficiency:>88%
Surge protection:6KV-20KV
Working temperature:-30℃/+55℃
CE RoHS Certified
Warranty:2/3/5 Years on demands.

Additional Options

Photocell (Dusk to dawn)/Time control
Dimming (PWM/0-10V/DALI Dimmable)
Low voltage input voltage DC12V/DC24V/DC36V/DC48W
