Product Details:
Payment & Shipping Terms:
|
| Wattage: | 120w | Fixture Color: | Light Grey |
|---|---|---|---|
| LED Color: | WW/NW/CW | CRI: | >70 |
| Input Voltage: | AC85 - 265V | Frequency Range: | 50 - 60Hz |
| Working Ambient Humidity: | 10% - 90% | Working Ambient Temperature: | -30℃ - 50℃ |
| High Light: | Waterproof Led Street Light 120w,Tempered Glass Cover Led Street Light,IP66 Die Cast Aluminum Road Lamp |
||
It has 30W, 50W, 80W,120W,180W from 5 bodies.
Installing Ways: Both Horizontal and Vertical available and adjustable angle-10°to 10°
Material:Die casting Aluminum body.
160° 140° is avaiable.
| Product Code | ZHSL-08-30 | ZHSL-08-50 | ZHSL-08-80 | ZHSL-08-120 | ZHSL-08-180 |
| Input Wattage | 30W | 50W | 80W | 120W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 3150-3600lm | 5250-6000 lm | 8400-9600 lm | 12600-14400lm | 18900-21600lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of Working Condition | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | ф40mm | ф50mm | ф60mm | ф60mm | ф70mm |
| Installation Height | 4-7m | 5-8m | 6-10m | 8-12m | 10-14m |
| Net Weight | 2.0kg | 2.7kg | 3.7kg | 4.8kg | 6.9kg |
| Gross Weight | 2.4kg | 3.0kg | 4.0kg | 5.2kg | 7.6kg |
| Packing Size(mm) | 440×195×220 | 545×230×115 | 665×300×140 | 765×300×140 | 905×355×150 |

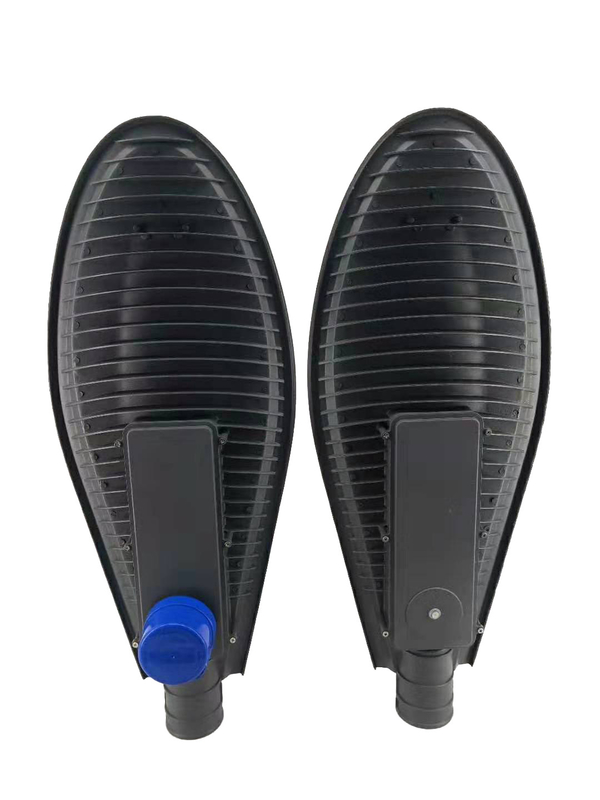

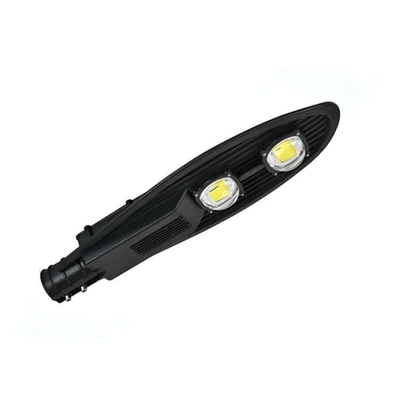

It is consist of a die-cast aluminum body and toughed glass cover, making it work well in harsh outdoor environments. The highest lumens output also will save much energy. This series includes 50W 100W 150W 200W 250Watt, that can meet the needs of most outdoor street lighting projects.
