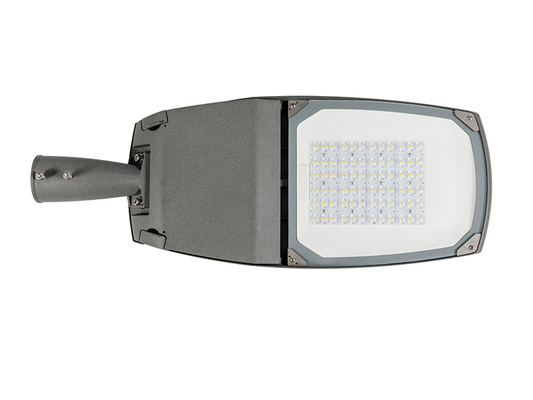

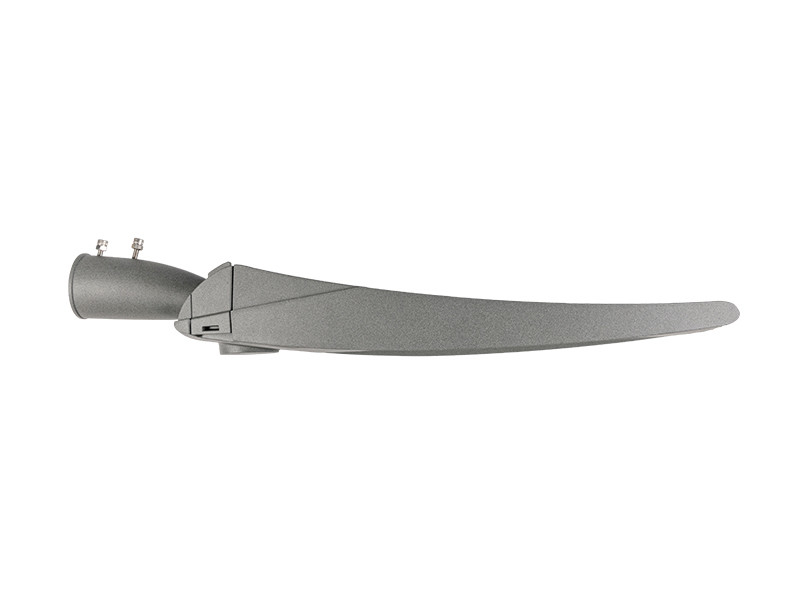

150W Led Street Light Empty Housing Die Cast Aluminum Ultra High Luminous

Large Image : 150W Led Street Light Empty Housing Die Cast Aluminum Ultra High Luminous

Product Details:

Place of Origin:	Ningbo China
Brand Name:	Die Casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	SL-25-150

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiation
Packaging Details:	Carton box with styrofoam package
Delivery Time:	7-40 days base on order quantity
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Model:	SL-25-2150	Power:	150W
Installation Pipe Diameter:	φ45/60mm	Input Voltage:	90~305Vac
Led Chip:	3030 Or 5050	Driver:	Inventronics, MOSO, SOSEN
Highlight:	Led Street Light Empty Housing , 3030 Led Street Light Housing , 150W LED Street Light Enclosure

Product Specification:

Model	SL-25-40M	SL-25-100M	SL-25-150M	SL-25-240M
Input Wattage (W)	30/40/50/60	80/100/120	150/180/200	240/300
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm	φ60/70mm
Installation Height (m)	3-8	6-10	8-12	10-14
Input Voltage	90~305Vac
Frequency Range	50/60Hz
Power Factor	≥0.9
Light source	LED
Driver	Inventronics
	Meanwell (optional)
	other brand of driver(upon request)
Luminaire efficacy (lm/W)	130-170
Color Temperature	4000
Color rendering index	≥70
Diming	Dali (optional)
	1-10V (optional)
	PWM (optional)
	Smart control management system (upon request)
The environment temperature	-40～45℃
Humidity of Working Condition	20%～90%RH
Protectin Grade	IP66
Protection level	IK08
Standards & Certifications	ENEC
	CB
	CE
	Rohs
Options	Photocell
	Surge protection
	External cable (length upon request)
	Smart control device
Materials	Housing: ADC12 die-cast aluminum
	Cover: Toughened Glass
	External Screws: 304 stainless screws
Color	Grey/Black ( other upon request)

Model	Product size (mm)			Packing size (mm)			G.W	N.W
	L	W	H	L	W	H	(kgs)	(kgs)
YSSL-25-40	555	210	143	600	260	165	2.9	3.4
YSSL-25-40M
YSSL-25-100	645	257	147	680	270	160	3.8	4
YSSL-25-100M
YSSL-25-150	790	305	147	820	320	160	5.7	6
YSSL-25-150M
YSSL-25-200	890	361	163	970	370	180	7.2	7.5
YSSL-25-200M

Luminaire made of die-cast aluminum, closed by tempered glass in order to ensure the IP and protect the characteristics of lenses used.
Access to electrical components without need of special tools, pressing locking system, which facilitates maintenance. Hidden hinge system.
Post top or side entry Ø 60 mm with the possibility of adjusting the inclination. Other fixing needs please
consult.
Luminaire Class I. Optional Class II
Luminaire IP66, IK09
LED version available from 20W to 260W.
Finished in any RAL color.
Characteristics of the optical group:
High performance inner aluminium heatsink
Number of LED 16-24-32-48-60-80- 96-112
Lenses Integrated with several asymmetric or symmetric distributions available according to the project needs.
Luminaire efficacy from 100 to 140lm/W
Crescent SL-25 series LED street lights provide complete lighting solutions for road and street
Full wattage from 30 to 320W, with ultra-high luminous efficiency and various lighting distribution
Application

It is suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

Product Code	YASL-25-150M
Input Wattage	120W	150W
Installation Pipe Diameter	φ45/60mm
Luminous Flux	15600-18000lm	19500-22500lm
Color Temperature	2700～6500K
Input Voltage	AC90～305V
Frequency Range	50/60Hz
Power Factor	PF≥0.95
color rendering index	Ra≥70
Temperature of Working Condition	-40～50℃
Humidity of Working Condition	20%～90%RH
LED Lifetime	50000h
Protectin Grade	IP66
Protection level	IK08/09/10
Installation Height	8-12m	8-12m
Net Weight	5.7kgs	5.7kgs
Gross Weight	6.0kgs	6.0kgs
Packing Size(mm)	820320160

Photometric

DH-T1

DH-T3-M

DH-T4-M

DY-T3-M

GY-T2-M01

GX-T2-M

GX-T4-L

HX-T2-S

DH-T2-L

DH-T3-MA

DH-T5-M

GY-T1-M

GY-T3-M01

GX-T3-M

HY-T2-M

HX-T2-M

DH-T2-M

DH-T3-MB

DY-T2-M

GY-T2-M

GX-T2-S

GX-T4-M

HY-T3-M

HX-T3-M

Product Size

Product Code						YASL-25-150M
L(mm)						790
W(mm)						305
H(mm)						147
