NingBo Die-Casting Man Technology Co.,ltd.
Home ProductsAluminum Led Street Light

Outdoor Aluminum LED Street Light 130lm/W IP66 50W 100W 200W

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

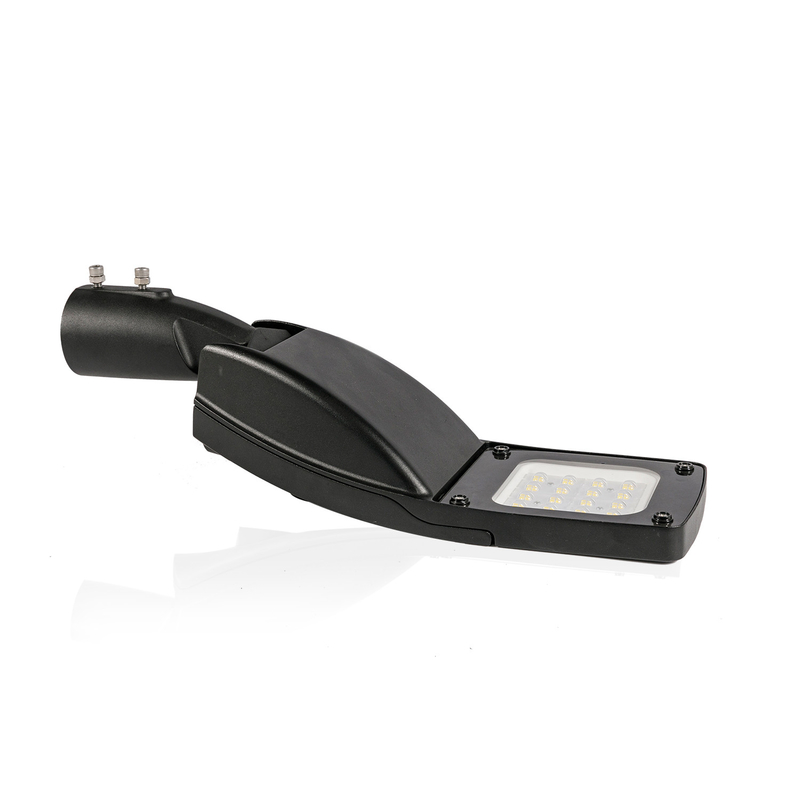

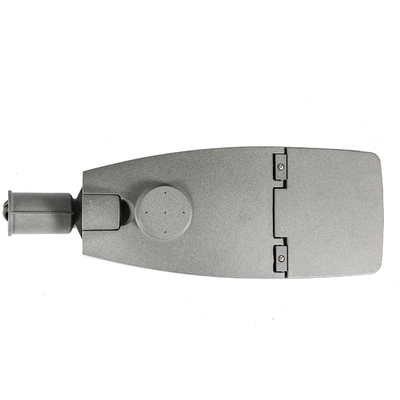

Outdoor Aluminum LED Street Light 130lm/W IP66 50W 100W 200W

Outdoor Aluminum LED Street Light 130lm/W IP66 50W 100W 200W
Outdoor Aluminum LED Street Light 130lm/W IP66 50W 100W 200W
video play

Large Image :  Outdoor Aluminum LED Street Light 130lm/W IP66 50W 100W 200W

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-18-80
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Power: 50W Color: Customized
Material: Die Casting Aluminium IP: 66
Warranty: 5 Years Color Rendering Index: Ra≥70
Luminous Flux: 6500-7250lm Color Temperature: 2700~6500K
Input Voltage: AC90~305V Temperature Of Working Condition: -40~50℃
Frequency Range: 50/60Hz Power Factor: PF≥0.95
Humidity Of Working Condition: 20%~90%RH LED Lifetime: 50000h
Protection Level: IK08/09/10 Installation Pipe Diameter: φ45/60mm
Installation Height: 4-8m Net Weight: 3.0kgs
Gross Weight: 3.5kgs Packing Size(m M): 620*245*185
High Light:

LED Street Light 130lm/W

,

50W LED Public Street Lighting

,

Customized Aluminum Waterproof Led Street Lights

White Gray Sandy Black Matt Silver Colors Available High-performance Street Lighting


Item NO.: YASL-18-08


Production Description:

- SL-18 series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum.

- It shall have a led efficiency up to 120 lm/w and will be capable of producing up to 18000 luminaire lumens at 4000k finished in Grey or black as standard.


Technical Datas:
Item NO.
YASL-18-30
YASL-18-80
YASL-18-150
Input Wattage
30w
80w
150w
Color Temperature
3000-6500k
3000-6500k
3000-6500k
Luminous Flux
3300-3750 lm
9200-10400 lm
16500-19500 lm
Input Voltage
AC90-305V
AC 90-305V
AC 90-305V
Color Rendering Index
Ra≥70
Ra≥70 Ra≥70
Frequency
50/60Hz
50/60Hz
50/60Hz
Power Factor
PF≥0.95
PF≥0.95
PF≥0.95
LED Lifetime
50000 h
50000 h
50000 h
Working temperature
-40℃-50℃
-40℃-50℃
-40℃-50℃
Working Humidity
20%-90% RH
20%-90% RH
20%-90% RH
Protection Grad
IP66
IP66
IP66
Installation Pipe Diameter
Φ60mm
Φ60mm
Φ60mm
Installation Height
4-6 m
4-6 m
4-6 m
Net Weight
3.0KG
6.0KG
7.4KG
Gross Weight
3.5KG
6.5KG
8.0KG
Packing Size
545*270*220mm
720*320*210mm
820*340*210mm

Drawing picture:

Outdoor Aluminum LED Street Light 130lm/W IP66 50W 100W 200W 0          Outdoor Aluminum LED Street Light 130lm/W IP66 50W 100W 200W 1


lnstalling Ways:

Both Horizontal and Vertical available, and adjustable angle-10°to+10°


Outdoor Aluminum LED Street Light 130lm/W IP66 50W 100W 200W 2





FAQ


Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q7. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
