Industrial Outdoor LED Street Lights Security Adjusting Angle UV Resistant

Industrial Outdoor LED Street Lights Security Adjusting Angle UV Resistant
Industrial Outdoor LED Street Lights Security Adjusting Angle UV Resistant
video play

Large Image :  Industrial Outdoor LED Street Lights Security Adjusting Angle UV Resistant

Product Details:
Place of Origin: China
Brand Name: Die casting man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-19-50
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: foam filing/pc
Delivery Time: 35days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/Month.
Detailed Product Description
Input Wattage: 40/50/60/80/100/120/150/180W Efficiency: >145lm/w
Voltage: AC90-305V Packing Details: With Strofoam Package
Standards & Certifications: CE ENEC Color: Grey/Black ( Other Upon Request)
LED Lifetime: 50000h Frequency Range: 50/60hz
High Light:

Adjusting Angle Outdoor Waterproof Street Light

,

60hz Industrial Outdoor LED Street Lights

,

UV Resistant Polycarbonate Outdoor Street Light

Products Description

Product Datasheet
Item No. YASL-19-50 YASL-19-50 YASL-19-50
Power 40W 50W 60W
Lumen Efficiency 140lm/w 140lm/w 140lm/w
Lumen 5600lm 7000lm 8400lm

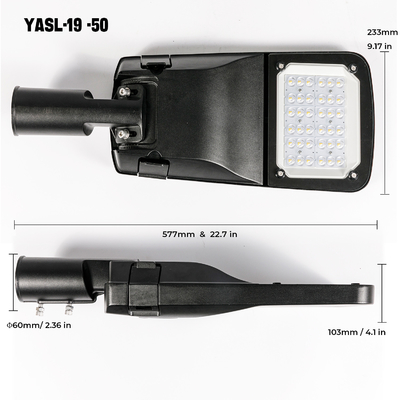

Product Size (mm) 577x233x103 577x233x103 577x233x103
Electrical Data
Working Voltage AC100-265V 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20 ~+50 , 10%~90%RH
Lifespan L70 at 25 > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%



First of all, please allow me to introduce our company Ningbo die-casting man to you,
Die-casting Man is one of the lighting manufacturers with design ,development and production. We understand that lighting technology has to be practical,so we always design and develop with our customers needs in mind.

Industrial Outdoor LED Street Lights Security Adjusting Angle UV Resistant 0

Industrial Outdoor LED Street Lights Security Adjusting Angle UV Resistant 1

Industrial Outdoor LED Street Lights Security Adjusting Angle UV Resistant 2





Products Picture

Industrial Outdoor LED Street Lights Security Adjusting Angle UV Resistant 3

Is there anything else you want to know about this lamp?

Questions
1.Q:What’s the warranty for your products
A: Normal produts in 5 years.Also can according your requirment
2.Q:What’s the delivery time
A:5days for samples,25days for housing,30days for finished lamp
3.Q:Can I put my logo on the products.
A:Of couse you can.Print the logo or make a mold engrave the logo on the products both ok for us.But engrave the logo should according the MOQ,usually need more than 1000pcs.
4.Q:Which port did you in.
A:We are in Ningbo port.And Shanghai port is ok for us.But other port is too far for us.We are no very suggest you choose other port,it will increase the cost.
5.Q:Which brand’s drvier did you use?
A:For our standard products,we will use with inventronic.But you also can choose philps .meanwell and osram.It’s depen on your like.If you want to the lower cost,their also have some Chinese brand for your choose,such as Moso ,sosen
6.Q:How about the chips.Which one did you use?
A:In normal we will use with philip 3030,you can choose the CCT RA by yourself.Ofcouse 5050 is also ok for us.We can design it according your requirement.
7.Q:How about the lens,is there any photometric for choose.
A:Yes we have many photometrics for each items for your choose,you can see it during our catalogue.The size which we use for the lens is 50*50mm,I think many customer will lke this one.And we also can use the ledil lens,but it will be take a little longer time for the delivery time.
8.Q:If I want to use with neam socket,is ok for this products?
A:Yes of couse.You see,there have a base ,we leave this to make nama hole for all the items for this family.And it also can make zhaga hole.You can choose it by yourself.
9.Q:What’s the protection grade for your products
A:IP66 IK08
10.Q:What’s grade for your powder coating
A:Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.We can make the different levels according your requirment.
