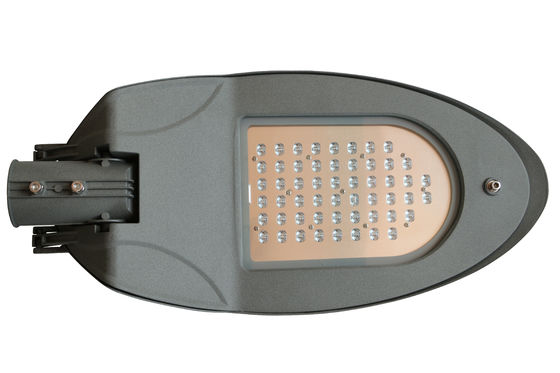

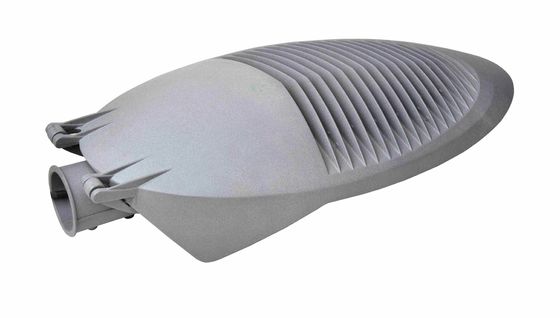

High Lumen LED Road Lighting Fixtures 60w, 80w Aluminium Die-casiting Body 2700-6500K IP66
Item NO.: ZHSL-06-40
Production Description:
- SL-06 series luminaire is the ideal solution that fufils requiremnents of dunctional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifespan is assured. Efficient system also reduce energy consumption and creat a more attractive urban living environment and visual comforts for public and residential areas.
- With patented housing design and range of optics, SL-06 series luminaires is also a perfect choice for project oriented usage.
Technical Datas:
| Item NO. |
ZHSL-06-80 |
| Power |
50w |
| LED chip |
LUXEON 3030 2D |
| LED Quantity |
|
| LED driver |
MeanWell / Inventronics |
| Input Voltage |
AC 90-305V |
| Frequency |
50/60Hz |
| Power Factor |
>0.9 |
| Total flux |
>7800lm |
| Working temperature |
-40℃-50℃ |
| Working Humidity |
20%-90% RH |
| Optic angle |
145°* 85° , Type I, II, III, IV |
| Color Rendering Index |
Ra>70 |
| Color Temperature |
2700-6500K |
| Life Span |
≥50000h |
| Protection Grade |
IP66/IK08 |
| Installation Pipe Diameter |
Φ50mm/Φ60mm |
| Installation Height4 |
-8m |
| Product Dimension |
518*238*118mm |
| Net Weight |
3.7KG |
| Gross Weight |
4.0KG |
| Packing Size |
560*265*145mm |
Features:
- European standard high-pressure aluminium housing material ADC-3
-Patented Ribbon-Free housing technology
- Excellent thermal management
- Outstanding self-cleaning capability
- Patented optics for increased application efficiency
- Post-top or side-entry mounted +10° or -10° title
- Toughed glass with 4mm thickness, IK08 Impact Resistance; IK09 with 5mm glass optional
LED Engine Module
LED life time of 100,000 hours at 25℃ ambient temperature
Lumiaire efficiency: 110-130lm/w
CCT: 4000k (3000K/ 5000K/ 5700K upon request)
CRI: >70; >80 (upon request)
Operating temperature range: -30 to 45 ℃
Electrical
MeanWell / Inventronics optional (other brand of driver upon request)
Class I or Class II
Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz
10KV/20KV SPD
Power automatically switch off when opening
Dimming:
Dali
1-10V
PWM
AstroDIM for autonomous dimming with five independent levels
Smart control management system
Options:
Photocell
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Motion detection
Standards & Certifications:
CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending
Dimension:
ZHSL-06-80
Installation Direction
Application:
Highway roads
Streets
Parking lots
Residential areas
