Aluminium Die Casting Body LED Street Lights Outdoor 60W/80W 2700-6500K IP66

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

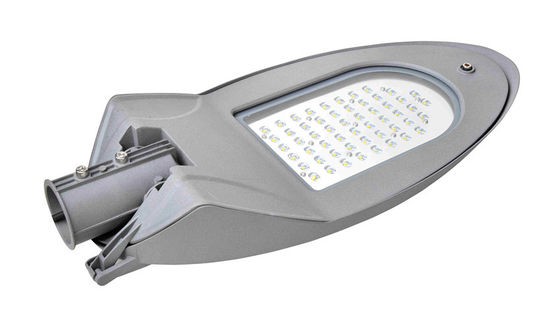

Aluminium Die Casting Body LED Street Lights Outdoor 60W/80W 2700-6500K IP66

Aluminium Die Casting Body LED Street Lights Outdoor 60W/80W 2700-6500K IP66
Aluminium Die Casting Body LED Street Lights Outdoor 60W/80W 2700-6500K IP66
video play

Large Image :  Aluminium Die Casting Body LED Street Lights Outdoor 60W/80W 2700-6500K IP66

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-06-40
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Detailed Product Description
Power: 50W Color: Customized
Input Voltage: AC90-305V Luminous Flux: 5250-5500 Lm
Material: Die Casting Aluminium Temperature Of Working Condition: -40~50℃
LED Lifetime: 50000h Ik: 08
Color Temperature: 3000-6500K Frequency Range: 50/60Hz
Protectin Grade: IP66 Power Factor: PF≥0.95
Color Rendering Index: Ra≥70 Humidity Of Working Condition: 20%~90%RH
Net Weight: 3.7kgs Gross Weight: 4.0kgs
Packing Size(m M): 560*265*145 Installation Pipe Diameter: φ50-60mm
High Light:

2700K Outdoor Street Light

,

LED Street Lights Outdoor 60W

,

Aluminium Die Casting Body Street Lights

High Lumen LED Road Lighting Fixtures 60w, 80w Aluminium Die-casiting Body 2700-6500K IP66



Item NO.: ZHSL-06-40



Production Description:

- SL-06 series luminaire is the ideal solution that fufils requiremnents of dunctional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifespan is assured. Efficient system also reduce energy consumption and creat a more attractive urban living environment and visual comforts for public and residential areas.

- With patented housing design and range of optics, SL-06 series luminaires is also a perfect choice for project oriented usage.



Technical Datas:

Item NO. ZHSL-06-80
Power 50w
LED chip LUXEON 3030 2D
LED Quantity
LED driver MeanWell / Inventronics
Input Voltage AC 90-305V
Frequency 50/60Hz
Power Factor >0.9
Total flux >7800lm
Working temperature -40℃-50℃
Working Humidity 20%-90% RH
Optic angle 145°* 85° , Type I, II, III, IV
Color Rendering Index Ra>70
Color Temperature 2700-6500K
Life Span ≥50000h
Protection Grade IP66/IK08
Installation Pipe Diameter Φ50mm/Φ60mm
Installation Height4 -8m
Product Dimension 518*238*118mm
Net Weight 3.7KG
Gross Weight 4.0KG
Packing Size 560*265*145mm



Features:

- European standard high-pressure aluminium housing material ADC-3

-Patented Ribbon-Free housing technology

- Excellent thermal management

- Outstanding self-cleaning capability

- Patented optics for increased application efficiency

- Post-top or side-entry mounted +10° or -10° title

- Toughed glass with 4mm thickness, IK08 Impact Resistance; IK09 with 5mm glass optional



LED Engine Module

LED life time of 100,000 hours at 25℃ ambient temperature

Lumiaire efficiency: 110-130lm/w

CCT: 4000k (3000K/ 5000K/ 5700K upon request)

CRI: >70; >80 (upon request)

Operating temperature range: -30 to 45 ℃



Electrical

MeanWell / Inventronics optional (other brand of driver upon request)

Class I or Class II

Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz

10KV/20KV SPD

Power automatically switch off when opening



Dimming:

Dali

1-10V

PWM

AstroDIM for autonomous dimming with five independent levels

Smart control management system



Options:

Photocell

Surge protection device (up to 20KV)

0.5m External cable(Other length upon request)

Smart control device

Motion detection



Standards & Certifications:

CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending





High Lumen 60w 80w LED Road Lighting Fixtures With Aluminium Die Casiting Body 0



High Lumen 60w 80w LED Road Lighting Fixtures With Aluminium Die Casiting Body 1



High Lumen 60w 80w LED Road Lighting Fixtures With Aluminium Die Casiting Body 2









Dimension:

ZHSL-06-80

High Lumen 60w 80w LED Road Lighting Fixtures With Aluminium Die Casiting Body 3



Installation Direction

High Lumen 60w 80w LED Road Lighting Fixtures With Aluminium Die Casiting Body 4



Application:

Highway roads

Streets

Parking lots

Residential areas



Why us?

1) We are not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

2) All of the material and finished products will be tested under the ISO9001 quality control system.

3) We have many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

4) Our team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Our new patent design of led street lights is very popular in the market.

5) In order to meet more and more requirements of customers, we offer ODM and OEM good service. Welcome to contact the sales and visit Zhouhua factory to discuss face to face.









.
