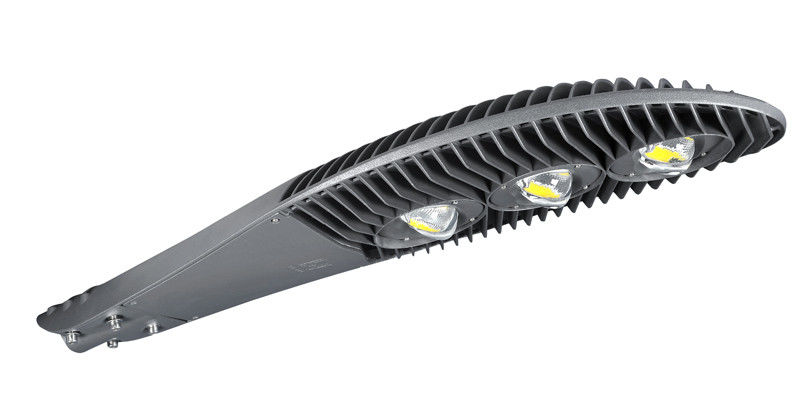

100lm/W 180W Bridgelux Chip COB Led Street Light

100lm/W 180W Bridgelux Chip COB Led Street Light
100lm/W 180W Bridgelux Chip COB Led Street Light 100lm/W 180W Bridgelux Chip COB Led Street Light 100lm/W 180W Bridgelux Chip COB Led Street Light 100lm/W 180W Bridgelux Chip COB Led Street Light

Large Image :  100lm/W 180W Bridgelux Chip COB Led Street Light

Product Details:
Place of Origin: China
Brand Name: Die Casting Man/OEM
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-04-180
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Carton box with foam
Delivery Time: 7-30 days base on order quantity
Payment Terms: By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, T/T, L/C
Supply Ability: 10000PCS/Month.
Detailed Product Description
Manufacturer: Die Casting Man Wattage: 180W
Lamp: COB Led Material: Die Casting Aluminum
Fixture Color: Black Input Voltage: AC85-265V
High Light:

100lm/w cob led street light


180w cob led street light


bridgelux chip cob street light

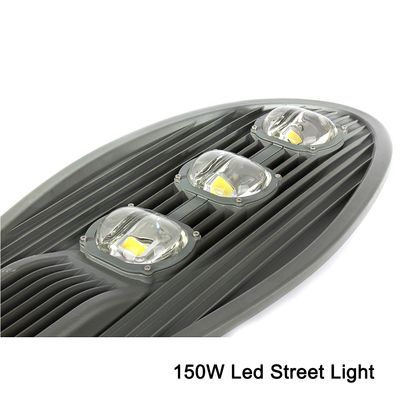

High Lumen 150w 180w Cobra COB High Power Street Light Outdoor Waterproof IP66 Aluminum Housing Photocell SPD Optional

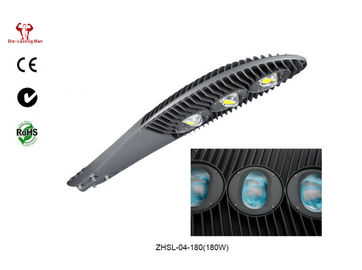

Item NO.: YASL-04-180


Production Description:

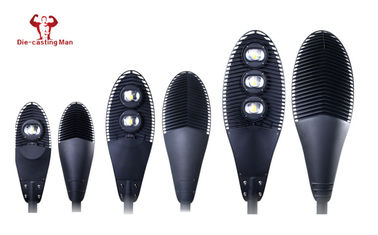

-This sentinel 180w LED street light is also available in 80w and 120w models.

- SL-04 series luminaire is the ideal solution that fufils requiremnents of dunctional street lighting and residential areas, which working with outstanding heat dissipation and compacting system. Equipped with high-quality electrical components, long lifespan is assured. Efficient system also reduce energy consumption and creat a more attractive urban living environment and visual comforts for public and residential areas.

- With patented housing design and range of optics, SL-04 series luminaires is also a perfect choice for project oriented usage.


Technical Datas:

Item NO. ZHSL-04-180 ZHSL-04-180 ZHSL-04-180
Power 150W 160W 180w
LED chip Bridgelux Bridgelux Bridgelux
LED Quantity 3pcs 3pcs 3pcs
LED driver MeanWell / Inventronics MeanWell/Inventronics MeanWell / Inventronics
Input Voltage AC 90-305V AC 90-305V AC 90-305V
Frequency 50/60Hz 50/60Hz 50/60Hz
Power Factor >0.95 >0.95 >0.95
Total flux >19500lm >20800lm >23400lm
Working temperature -40℃-50℃ -40℃-50℃ -40℃-50℃
Working Humidity 20%-90% RH 20%-90% RH 20%-90% RH
Optic angle 150°* 70°, other optic angle optional 150°* 70°, other optic angle optional 150°* 70°, other optic angle optional
Color Rendering Index Ra>70 Ra>70 Ra>70
Color Temperature 2700-6500K 2700-6500K 2700-6500K
Life Span ≥70000h ≥70000h ≥70000h
Protection Grade IP66/IK09 IP66/IK09 IP66/IK09
Installation Pipe Diameter Φ60mm Φ60mm Φ60mm
Installation Height 10-12m 10-12m 12-15m
Product Dimension 950*347*155mm 950*347*155mm 950*347*155mm
Net Weight 10.5KG 10.5KG 10.5KG
Gross Weight 12.5KG 12.5KG 12.5KG
Packing Size 1005*400*210mm 1005*400*210mm 1005*400*210mm


1.LED Driver: External Meanwell / Inventronics driver
2.Warm and cold color temperature are available
3.Quick and easy installation to minimize retrofit costs.
4.Patented heat dissipation technology for radiator;
5.Aluminum ADC-3 for resistance to corrosion, seawater, oil and lubricant etc;
6.Acrylic sealing reflector around LED; anodized oxide treated aluminum reflector & acrylic reflector available;
7.Closed corrosion-proof silicone ring for dustproof and waterproof
8.Beam angle: 150x70 degree. Dustproof cover, or Crystal PC reflector available
9.Lamp surface treated with anodization, corrosion-resistant, shake-resistant and artistic appearance
10.Terrific heat dissipation technology: LED temperature will be rapid transfered to fin-style heatsink through heatpipe
11.Energy saving: Replace 400-500w traditional lamps, saving more than 80%
12.Eco-friendly: No lead, mercury, UV interference
13.Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
14.Warranty: 5 years


LED Engine Module

LED life time of 100,000 hours at 25℃ ambient temperature

Lumiaire efficiency: 110-130lm/w

CCT: 4000k (3000K/ 5000K/ 5700K upon request)

CRI: >70; >80 (upon request)

Operating temperature range: -30 to 45 ℃




MeanWell / Inventronics optional (other brand of driver upon request)

Class I or Class II

Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz








AstroDIM for autonomous dimming with five independent levels

Smart control management system




Surge protection device (up to 20KV)

0.5m External cable(Other length upon request)

Smart control device

Motion detection


Standards & Certifications:

CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending
