Product Details:
Payment & Shipping Terms:
|
| Material: | ADC12 Aluminum | Wattage: | 80W |
|---|---|---|---|
| Fixture Color: | Grey / Gold | IP: | 65 |
| LED Color: | WW/NW/CW | CRI: | >70 |
| Input Voltage: | AC85 - 265V | Frequency Range: | 50 - 60Hz |
| Working Ambient Humidity: | 10% - 90% | Working Ambient Temperature: | -30℃ - 50℃ |
| Highlight: | led street lighting,led road light |
||

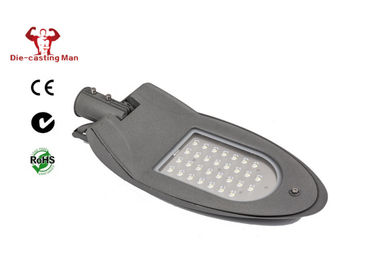

SMD High Power LED Street Light 80W Grey / Gold Industrial
ITEM NO: ZHSL-05-60 (80W)
| Item NO. | ZHSL-05-60 |
| LED Quantity | 120pcs 3030 |
| Rated Power | 60W |
| Color Temperature | 2700-6500K |
| Initial Luminous Flux | 6000LM |
| Input Voltage | AC85-265V |
| Frequency Range | 50-60Hz |
| Power Factor | PF>0.95 |
| Color Rendering Index | Ra>75-80 |
| Temperature Working Condition | -40℃ - 50℃ |
| Humidity of Working Condition | 20-90% |
| LED Lifetime | 50000h |
| Protection Grade | IP65 |
| Installation Pipe Diameter | 60mm |
| Installation Height | 6-8m |
| Net Weight | 5.5 kgs |
| Gross Weight | 6 kgs |
| Packing Size | 71*35*16 cm |
Description:
80W LED streetlight made of High quality Die Casting Aluminum housing + LED model+MeanWell Driver
1. The latest version of high power SMD Street Light Housing,User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat agement system,which can hold 5pcs of LED Model.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.
5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Specifications
|
Model Number |
ZHSL-05-80 |
|
|
Electrical Specifications |
LED QTY |
80PCS |
|
TotaLPower consumption |
MAX.100W |
|
|
Operation Voltage |
85-265VAC or 12VDC or 24VDC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
15000 lm - Initial |
|
|
13800 lm - Maintain |
|
|
Led Luminous Efficiency |
>90LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
5Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
863.5x374.5x172.1MM |
|
|
Fixture Weight |
9.5kgs(20.9lbs) |
|
|
Packing Information |
Packing Type |
1unit /ctn |
|
Packing Dimension |
91x 42 x22 cm (35.8” x16.5” x8.7”) |
|
|
Packing Weight |
11.2kgs(24.7lbs) |
|
