Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Die Casting Body | Frequency Range: | 50 - 60Hz |
|---|---|---|---|
| LED Color: | WW/NW/CW | Beam Angle: | 120° |
| Input Voltage: | AC85-265V | Certification: | CE , RoHs , EMC , LVD , CB , ENEC |
| Highlight: | CW Led High Mast Lamp,6500k Led High Mast Lamp,6500k high mast lamp |
||

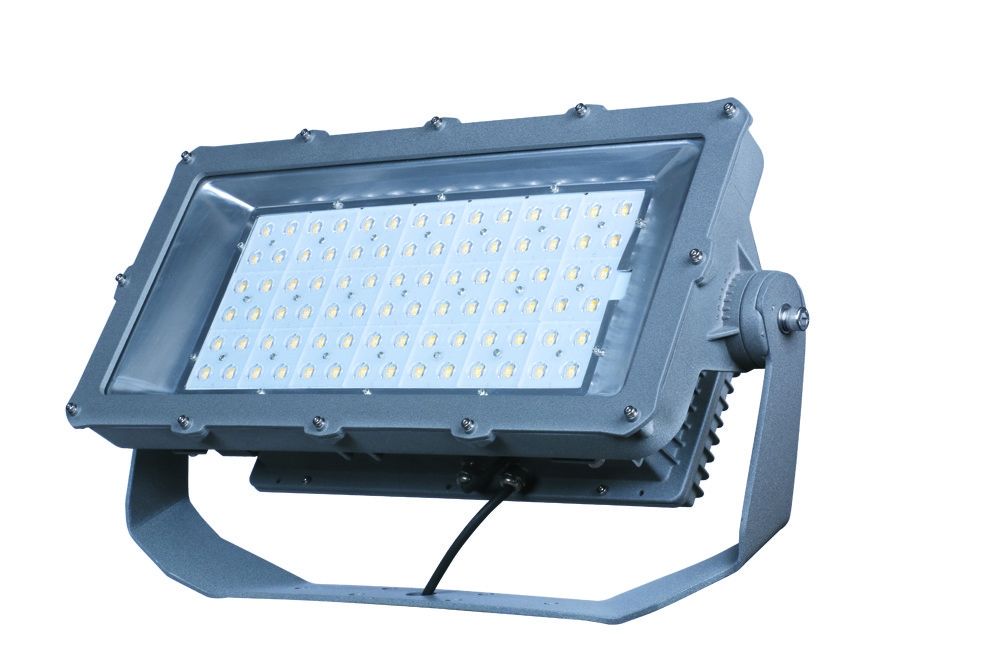

Factory supply Outdoor LED Flood Lights 200W to 600W with Multiply functional for sports, court
ITEM NO: HP-01-200
Description:
200W/400W/600W Outdoor Led Floodlight
1. High light intensity , simple designs and ideally suited, LED Floodlight housing can make 600w.
2. High quality Die casting aluminum body with anti-corrosiontreatment and with electrostatic plastic coating.
3. Highly polished aluminum reflector. High Efficient and power factor led power supply .
4. Adjustable single bracket could make the light for 120 degree around.
5. Obtain a 50-70% energy saving compared with halogen lamps.
6. Replace traditional SON and Metal Halide which consume 250-400W.
Applications:
Advertisement Boards,Gardens,Hotels,Lighting Walls,Car Parks,Area with CCTV.
Specifications:
| Product Code | ZHHP-01-200 | ZHHP-01-400 | ZHHP-01-600 | |
| Electric current | 3750mA | 7500mA | 4450mA | |
| Input Wattage | 200W | 400W | 400W | |
| Color Temperature | 3000/4000/6500 | 3000/4000/6500 | 3000/4000/6500 | |
| Luminous Flux | 24000Lm±5% | 48000Lm | 48000Lm | |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | |
| Power Factor | PF≧0.9 | PF≧0.9 | PF≧0.9 | |
| color rendering index | Ra≧70 | Ra≧70 | Ra≧70 | |
| Temperature of Working Condition | -40--50℃ | -40--50℃ | -40--50℃ | |
| Humidity of Working Condition | 10%-90% | 10%-90% | 10%-90% | |
| LED Lifetime | 50000h | 70000h | 70000h | |
| Protectin Grade | IP65 | IP65 | IP65 | |
| Net Weight | 28.4kg | 17.6kg | 25.9kg | |
| Gross Weight | 30kg | 19kg | 28.4kg | |
| Packing Size | 740*640*300mm | 680*685*165mm | 1000*680*165mm | |
If you are importing lighting fixture, our company will be a good option for you:
2) we are die-casting manufacturer for around 30year, we are professional on lighting design and the quality and cost control.
Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We are glad to send led street light 20 watt samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: How to confirm the quality with us before starting to produce?
1) We can provide led street light 20 watt samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.
Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
