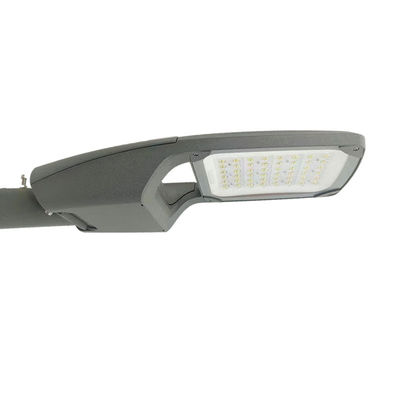

SL-27 LED Diecasting Aluminium Street Light Housing 80 -150W Dali / Zigbee / NB-Lot Control IK08

Large Image : SL-27 LED Diecasting Aluminium Street Light Housing 80 -150W Dali / Zigbee / NB-Lot Control IK08

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-27-120(M)

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Power:	80-150W	Color Rendering Index:	Ra≥70
Material:	Die Casting Aluminium	Power Factor:	PF≥0.95
Gross Weight:	4.1kgs	Net Weight:	4.5kgs
Size:	707x280x113 Mm	Protectin Grade:	IP66
Protection Level:	IK08/09/10	Optical Effect:	130~190 Lm/w(Optional)
Highlight:	LED Street Lamp Housing IK08 , Aluminium Street Light Housing 150W , Waterproof Aluminium Street Light Casing

Product Specification:

SL-27 series LED street lights provide complete lighting solutions for road and street.

Compliance with international standards ENEC, CB, CE, EMC, LM79, Rohs …

Full wattage from 30 to 320W, with ultra-high luminous efficiency and various lighting distribution

Intelligent control system: timing dimming, 0-10v dimming, Dali, Zigbee, NB-Lot, etc

Class I or ClassII both availble.

Model	SL-27-60	SL-27-120	SL-27-200
Input Wattage (W)	30/40/50/60	80/100/120	150/200/240
Installation Pipe Diameter	φ60mm	φ60mm	φ60mm
Installation Height (m)	3-8	6-10	8-12
Input Voltage	90~305Vac
Frequency Range	50/60Hz
Power Factor	≥0.9
Light source	LED
Driver	Inventronics
	Meanwell (optional)
	other brand of driver(upon request)
Luminaire efficacy (lm/W)	130-170
Color Temperature	4000K (3000K/5000K,5700K upon request)
Color rendering index	≥70
Diming	Dali (optional)
	1-10V (optional)
	PWM (optional)
	Smart control management system (upon request)
The environment temperature	-40～45℃
Humidity of Working Condition	20%～90%RH
Protectin Grade	IP66
Protection level	IK08
Standards & Certifications	ENEC(uncertificated)
	CB(uncertificated)
	CE(uncertificated)
	Rohs(uncertificated)
Options	Photocell
	Surge protection
	External cable (length upon request)
	Smart control device
Meterials	Housing: ADC12 die-cast aluminum
	Cover: Toughened Glass
	External Screws: 304 stainless screws
Color	Grey/Black ( other upon request)

Features:

Novel and beautiful appearance design

Safe and reliable structural design

Button type lamp opening structure design

Adjustable bracket both available for horizontal and vertical installing

Product structure:

Bracket installation direction 180°

SL-27 LED Diecasting Aluminium Street Light Housing 80 -150W Dali / Zigbee / NB-Lot Control IK08 0

Bracket installation direction

SL-27 LED Diecasting Aluminium Street Light Housing 80 -150W Dali / Zigbee / NB-Lot Control IK08 1

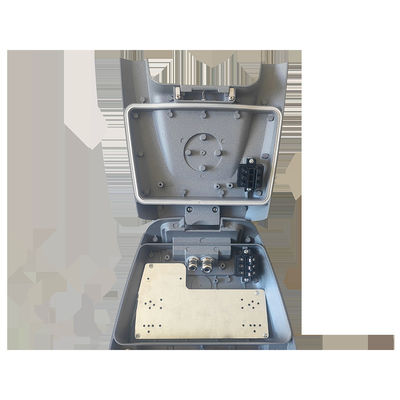

The way gear boxes are opened

SL-27 LED Diecasting Aluminium Street Light Housing 80 -150W Dali / Zigbee / NB-Lot Control IK08 2

Product size and weight

SL-27 LED Diecasting Aluminium Street Light Housing 80 -150W Dali / Zigbee / NB-Lot Control IK08 3

Model	产品尺寸 (mm)			包装尺寸(预估) (mm)			净重	毛重
	Packing size (mm)			Packing size(estimate)(mm)			G.W	N.W
	L	W	H	L	W	H	(kgs)	(kgs)
YSSL-27-60	633	250	122	700	320	190
YSSL-27-120	723	280	122	790	350	190
YSSL-27-200	799	319	122	860	390	190

SL-27 LED Diecasting Aluminium Street Light Housing 80 -150W Dali / Zigbee / NB-Lot Control IK08 5
