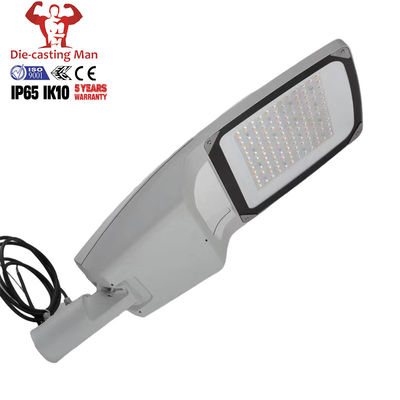

High Lumen Aluminum SMD Smart Outdoor LED Street Light Housing 150W 240W

High Lumen Aluminum SMD Smart Outdoor LED Street Light Housing 150W 240W
High Lumen Aluminum SMD Smart Outdoor LED Street Light Housing 150W 240W
video play

Large Image :  High Lumen Aluminum SMD Smart Outdoor LED Street Light Housing 150W 240W

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YASL-27-200(M)
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Power: 150-240W Material: Die Casting Aluminium
Power Factor: PF≥0.95 Color Rendering Index: Ra≥70
Optical Effect: 130~190 Lm/w(Optional) Protectin Grade: IP66
Protection Level: IK08/09/10 Net Weight: 4.9kgs
Gross Weight: 5.5kgs Size: 783x320x113 Mm
High Light:

SMD LED Street Light Casing

,

Smart Outdoor LED Street Light Housing

,

High Lumen Aluminum LED Light Housing

Product Specification:



SL-27 series LED street lights provide complete lighting solutions for road and street.

Compliance with international standards ENEC, CB, CE, EMC, LM79, Rohs …

Full wattage from 30 to 320W, with ultra-high luminous efficiency and various lighting distribution

Intelligent control system: timing dimming, 0-10v dimming, Dali, Zigbee, NB-Lot, etc

Class I or ClassII both availble.



Model SL-27-60 SL-27-120 SL-27-200
Input Wattage (W) 30/40/50/60 80/100/120 150/200/240
Installation Pipe Diameter φ60mm φ60mm φ60mm
Installation Height (m) 3-8 6-10 8-12
Input Voltage 90~305Vac
Frequency Range 50/60Hz
Power Factor ≥0.9
Light source LED
Driver Inventronics
Meanwell (optional)
other brand of driver(upon request)
Luminaire efficacy (lm/W) 130-170
Color Temperature 4000K (3000K/5000K,5700K upon request)
Color rendering index ≥70
Diming Dali (optional)
1-10V (optional)
PWM (optional)
Smart control management system (upon request)
The environment temperature -40～45℃
Humidity of Working Condition 20%～90%RH
Protectin Grade IP66
Protection level IK08
Standards & Certifications ENEC(uncertificated)
CB(uncertificated)
CE(uncertificated)
Rohs(uncertificated)
Options Photocell
Surge protection
External cable (length upon request)
Smart control device
Meterials Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless screws
Color Grey/Black ( other upon request)



Features:

Novel and beautiful appearance design

Safe and reliable structural design

Button type lamp opening structure design

Adjustable bracket both available for horizontal and vertical installing



Product structure:



Bracket installation direction 180°

60W LED Street Light Shell Body Button Type Lamp For Road And Street 0



Bracket installation direction

60W LED Street Light Shell Body Button Type Lamp For Road And Street 1



The way gear boxes are opened

60W LED Street Light Shell Body Button Type Lamp For Road And Street 2



Product size and weight

60W LED Street Light Shell Body Button Type Lamp For Road And Street 360W LED Street Light Shell Body Button Type Lamp For Road And Street 4

Model 产品尺寸 (mm) 包装尺寸(预估) (mm) 净重 毛重
Packing size (mm) Packing size(estimate)(mm) G.W N.W
L W H L W H (kgs) (kgs)
YSSL-27-60 633 250 122 700 320 190
YSSL-27-120 723 280 122 790 350 190
YSSL-27-200 799 319 122 860 390 190

60W LED Street Light Shell Body Button Type Lamp For Road And Street 5
