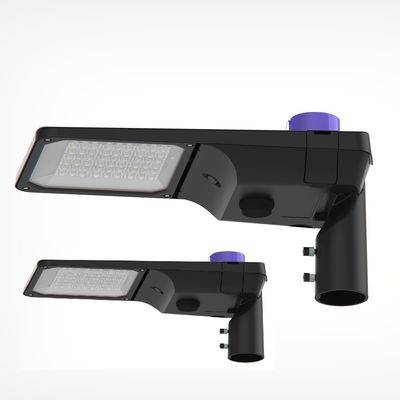

Black IP65 Rated Outdoor LED Street Lights With 130-190lm/W Efficiency

Large Image : Black IP65 Rated Outdoor LED Street Lights With 130-190lm/W Efficiency

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE. EMC, LVD, ENEC
Model Number:	YASL-29-100

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$19.3 - US$42.3
Packaging Details:	1PC/CTN
Delivery Time:	7-5DAYS
Payment Terms:	TT
Supply Ability:	10000PCS/M

Contact Now

Detailed Product Description

Power:	30W - 150W - 300W	CRI:	>70
Application:	Main Road High Way Flyover City Street Overpass Sidewalk Square School Residential District Industrial Area Park	Warranty:	3-5 Years
Lifespan:	50,000 Hours	Light Source:	LED SMD
Efficiency:	130-190lm/w	Color:	Customized Ral. No. Such As Gray, Black, White
Highlight:	Waterproof Aluminum Outdoor Street Lamp , IP65 Rated Outdoor LED Street Lights , Outdoor LED Street Light 190lm/W

LED Street Light YASL-29 series

lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-15°to+15°

This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS

Product Specification

Item NO.	YASL-29-40	YASL-29-60	YASL-29-100	YASL-29-160	YASL-29-240
Wattage	30～60W	50～90W	80～140W	130～200W	200～300W
lens	4(MAX 6)	6(MAX 8)	9(MAX 12)	16(MAX 20)	24(MAX 30)
Installation Height	3-6m	4-8m	6-10m	8-14m	12-14m
Product Size(m m)	576X209X89	593X263X89	646X263X89	709X315X89	812X315X89
Packing Size(m m)	585X250X140	620X305X140	665X305X140	730X360X140	840X360X140
Net Weight	3.8kgs	4.1kgs	4.6kgs	7.4kg	9.5kg
Gross Weight	4.2kgs	4.5kgs	5.0kgs	7.9kg	10.5kg
Installation Pipe Diameter	φ45/60mm			φ60/76mm
Materials	Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws
Body Color	Gray, Black, customized Ral no.
LED brand	LUMILEDS,OSRAM,CREE option
LED Chips	3030,5050 option
Efficiency	130～140 lm/w,140～150 lm/w,150～160 lm/w,160～170 lm/w,170～180 lm/w option
Color Temperature	2700K,3000K,3500K,4000K,5000K,5700K,6500K option(Reference:Energy Star)
color rendering index	Ra≥70；Ra≥80；Ra≥90 option
Optics	TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV option
Driver brand	CUSTOMIZED
Input Voltage	AC90～305V
Security level	ClassI/ClassII/Class1/Class2 option
Frequency Range	43～63Hz
Power Factor	PF≥0.95
Working conditions Range	-30 to 45℃,20% to 90%RH
Dimming mode	Time control/0-10V/ Opticalcontrol/Microwaves/DALI option
Lightning protection	10KV/15KV/20KV option
Warranty	5/8 year option
Protection	Overcurrent/Short circuit/Over temperature
Protection level	IP66;IK08/09/10
Certifications	ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66
