Smart City 30w 50w 100w 150w Led Street Light With Nema ADC12 Die Casting Aluminium

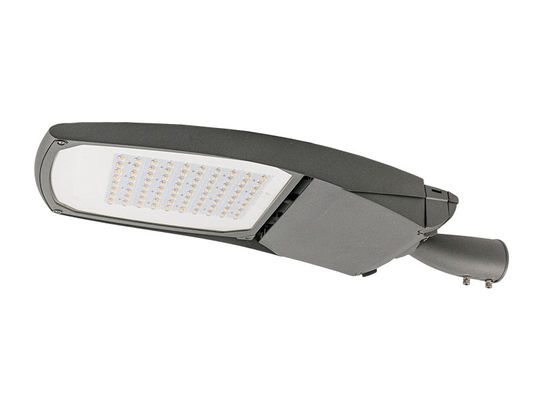

Large Image : Smart City 30w 50w 100w 150w Led Street Light With Nema ADC12 Die Casting Aluminium

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-25-240M

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Power:	240W/300W	Material:	Die Casting Aluminium
Power Factor:	PF≥0.95	Protectin Grade:	IP66
Color Rendering Index:	Ra≥70	Size:	890361163 Mm
Net Weight:	7.2kgs	Gross Weight:	7.5kgs
Protection Level:	IK08/09/10	Luminous:	31200-36000lm
Highlight:	30w smart city led street light , Aluminium 100w led street light , Aluminium 50w led street light

Products Description

LED Street Light YASL-25
Outdoor Street Lights and pole top luminaires | Die casting man
Type of Protection: IP 66
Protection Class: II
Impact Protection: IK08
Housing made of corrosion resistant pressure die-cast aluminium (seawater resistant powder- coated). Pole-top fixing with integrated cable routing and stainless steel screws. Tilt angle can be adjusted and locked in 15 degree steps featuring angular scale. Cover clear tempered glass. Tool-free maintenance / replacement with disconnect plug .

Additional advantages
Installation on the pole as pole-top or side-mounted pole-top luminaire. Adjustable and lockable in 15° steps:
Both horizontal and vertical installing ways tilted from -15° to +15° (horizontal and vertical ways)
Two diameters available for pole top installation (45 mm and 60mm)

Smart lighting: Dali ,Dali Zhaga, 1-10V, PWM can be requested on dimming type / NEMA sockets available for the integration of components for light management systems or sensors.
Power interruption when the housing is opened.

Tool-free maintenance / replacement with disconnect plug (Power interruption when the housing is opened)
Seawater resistant coating
Control gear with integrated surge protection up to 10 kV or 20KV. (can be requested when you need completely luminaires)
Operating range: -40°C to +45°C.

IP66 CE RoHS

Product code	YASL-25-40M	YASL-25-100M	YASL-25-150M	YASL-25-240M
Input Wattage	30/40/50/60w	80/100/120w	150/180/200w	240/300w
Color Temperature	4000K	4000K	4000K	4000K
Luminous Flux	3900-7500lm	7800-15000lm	15600-22500lm	26000-36000lm
Input Voltage	AC90～305V	AC90～305V	AC90～305V	AC90～305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40～50℃	-40～50℃	-40～50℃	-40～50℃
Humidity of Working Condition	20%～90%RH	20%～90%RH	20%～90%RH	20%～90%RH
LED Lifetime	50000h	50000h	50000h	50000h
Protectin Grade	IP66	IP66	IP66	IP66
Protection level	IK08/09/10	IK08/09/10	IK08/09/10	IK08/09/10
Installation Pipe Diameter	φ45/60mm	φ45/60mm	φ45/60mm	φ45/60/76mm
Installation Height	3-6m	4-10m	8-12m	10-14m
Net Weight	2.9kgs	3.8kgs	5.7kgs	7.2kgs
Gross Weight	3.4kgs	4.0kgs	6.0kgs	7.5kgs
Packing Size(m m)	600260165	680270160	820320160	920370180
Specification of SL25-M family for your reference. Kindly notice this information are for your reference only

INSTALL.
This fixture is mounted on a 4-16m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15°

Fixture has internal clamps to secure itself to pole.
This 150 Watt LED STREET LIGHT is ideal for residential street and parking lot outdoor lighting applications. It is
also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree. This fixture has 1000 hours
salt water spray test. Fixture is tough and durable rated at IK08 impact rating.

ENERGY SAVINGS.
High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.
Compared to metal halide lamps ,the average savings obtained using LED Lighting is approx 70% ,90% to halogen lamps .
This fixture provides a lumen output equal to 400 Watt Metal Halide and can reduce your lighting bill when
compared to metal halide and hps lighting.

WARRANTY / CERTIFICATIONS.
LED Lighting Supply provides a 5 year warranty along with CE and Rebate Eligible certifications.

Product Size
