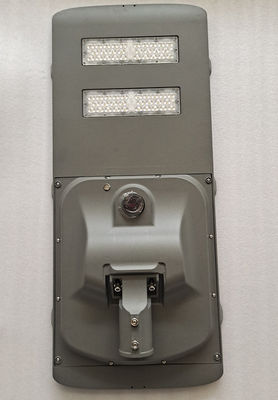

50w 60w 800w Wifi Dali D4i Zhaga Smart Controller Led Street Lights Die Casting Housing

Large Image : 50w 60w 800w Wifi Dali D4i Zhaga Smart Controller Led Street Lights Die Casting Housing

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE ROHS ENEC
Model Number:	YASL-30-80

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS

Contact Now

Detailed Product Description

Power:	30W-200W	Material:	Aluminum Alloy
Color:	Customized Ral. No. Such As Gray, Black, White	CRI:	>70
IP Rating:	IP65	Working Temperature:	-40°C-50°C
Light Source:	LED	Power Factor:	>0.95
Highlight:	800w led street lights housing , 50w led street lights housing , 60w led street lights housing

LED Solar Street Light YASL 30-80

Installing Ways:Both Horizontal and Vertical available and adjustable angle-15° to 15°

Material:Die casting Aluminum body and PC lens

Product Specification

Product Code	YASL-30-40		YASL-30-80
Nominal Power	30W	40W	50W	60W	80W
Quantity (5050)	18 PCS	18 PCS	28 PCS	28 PCS	36 PCS
Battery Capacity	12.8V/18AH	12.8V/24AH	12.8V/30AH	12.8V/36AH	12.8V/42AH
Solar Panel Power	18V/40W	18V/50W	18V/60W	18V/80W	18V/100W
Charging Time	6H	6H	6.5H	6H	5.5H
Number of Lenses (PCS)	1 module		1 module
Product Size (mm)	780×468×153		1080×468×153
Packing Size (mm)	815×500×180		1120×500×180
Net Weight (kgs)	11.2		15.8
Gross Weight (kgs)	12.6		17.6
Quantity of Packing (PCS)	1		1
Installation Height (m)	4～8		6～10
Installation Pipe Diameter	Φ60mm		Φ60mm
Adjustable Angle	±15°Adjustable
Materials	Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws
Spray Colors	Double Grey, Sandy Black, Matt Silver
Led Brand	LUMILEDS, OSRAM, CREE (Optional)
Led Specifications	3030, 5050 (Optional)
Optical Effect	130～190lm/w (Optional)
Color Temperature	2700K, 3000K, 3500K, 4000K,5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
Color Rendering Index	Ra>70, Ra>80, Ra>90 (Optional)
Optics	See Photometric Data
Discharge Time	4-5 days
Frequency Range	50/60HZ
Induction Distance	12m
Battery Type	Lithium iron phosphate
Dimming Mode	Microwave induction / Infrared sensing (Optional)
Solar Panels	Mono-Crystalline Silicon solar panel
Working Conditions Range	-30 to 45℃, 20% to 90% RH
Warranty	3/5 years (Optional)
Protection Level	IP65, IK08
Certifications	CE; RoHs; TUV; LM-79; LM-80; IP66

50w 60w 800w Wifi Dali D4i Zhaga Smart Controller Led Street Lights Die Casting Housing 0

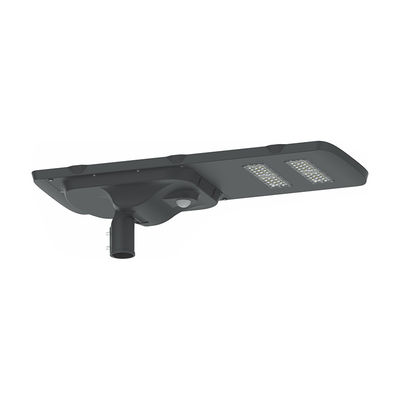

LED Solar Street Light YASL-30

Product Description

This series is a high-performance street lighting available in two sizes.

The luminaire is manufactured from high pressure die-casting aluminum.

It shall have a led efficiency up to 190 Im/w and will be capable of producing up to 15200 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS

50w 60w 800w Wifi Dali D4i Zhaga Smart Controller Led Street Lights Die Casting Housing 1
