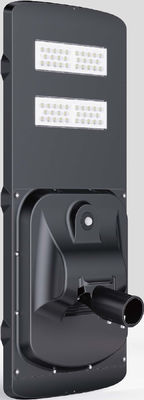

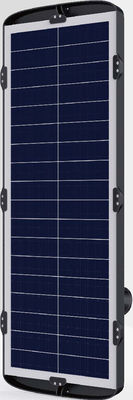

80w Street Light Housing 2700k 5050 Chip And Battery 1 Module Solar 15degree Adjustable

Large Image : 80w Street Light Housing 2700k 5050 Chip And Battery 1 Module Solar 15degree Adjustable

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE ROHS ENEC
Model Number:	YASL-30-80

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS

Contact Now

Detailed Product Description

Power:	30W-200W	Material:	Aluminum Alloy
Color:	Customized Ral. No. Such As Gray, Black, White	CRI:	>70
IP Rating:	IP65	Working Temperature:	-40°C-50°C
Light Source:	LED	Power Factor:	>0.95
Highlight:	80w street light housing , 15degree adjustable street light housing , 5050 chip street light housing

LED Solar Street Light YASL 30-80

Installing Ways:Both Horizontal and Vertical available and adjustable angle-15° to 15°

Material:Die casting Aluminum body and PC lens

Product Specification

Product Code	YASL-30-40		YASL-30-80
Nominal Power	30W	40W	50W	60W	80W
Quantity (5050)	18 PCS	18 PCS	28 PCS	28 PCS	36 PCS
Battery Capacity	12.8V/18AH	12.8V/24AH	12.8V/30AH	12.8V/36AH	12.8V/42AH
Solar Panel Power	18V/40W	18V/50W	18V/60W	18V/80W	18V/100W
Charging Time	6H	6H	6.5H	6H	5.5H
Number of Lenses (PCS)	1 module		1 module
Product Size (mm)	780×468×153		1080×468×153
Packing Size (mm)	815×500×180		1120×500×180
Net Weight (kgs)	11.2		15.8
Gross Weight (kgs)	12.6		17.6
Quantity of Packing (PCS)	1		1
Installation Height (m)	4～8		6～10
Installation Pipe Diameter	Φ60mm		Φ60mm
Adjustable Angle	±15°Adjustable
Materials	Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws
Spray Colors	Double Grey, Sandy Black, Matt Silver
Led Brand	LUMILEDS, OSRAM, CREE (Optional)
Led Specifications	3030, 5050 (Optional)
Optical Effect	130～190lm/w (Optional)
Color Temperature	2700K, 3000K, 3500K, 4000K,5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
Color Rendering Index	Ra>70, Ra>80, Ra>90 (Optional)
Optics	See Photometric Data
Discharge Time	4-5 days
Frequency Range	50/60HZ
Induction Distance	12m
Battery Type	Lithium iron phosphate
Dimming Mode	Microwave induction / Infrared sensing (Optional)
Solar Panels	Mono-Crystalline Silicon solar panel
Working Conditions Range	-30 to 45℃, 20% to 90% RH
Warranty	3/5 years (Optional)
Protection Level	IP65, IK08
Certifications	CE; RoHs; TUV; LM-79; LM-80; IP66

80w Street Light Housing 2700k 5050 Chip And Battery 1 Module Solar 15degree Adjustable 0

LED Solar Street Light YASL-30

Product Description

This series is a high-performance street lighting available in two sizes.

The luminaire is manufactured from high pressure die-casting aluminum.

It shall have a led efficiency up to 190 Im/w and will be capable of producing up to 15200 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS
