Product Details:
Payment & Shipping Terms:
|
| Material: | Die-casting Aluminium | Fixture Color: | Gray |
|---|---|---|---|
| Input Voltage: | AC90 - 305V | Working Ambient Temperature: | -40℃ - 50℃ |
| IP: | 66 | Lamp Power: | 120W |
| Highlight: | street light housing,led street light enclosure |
||

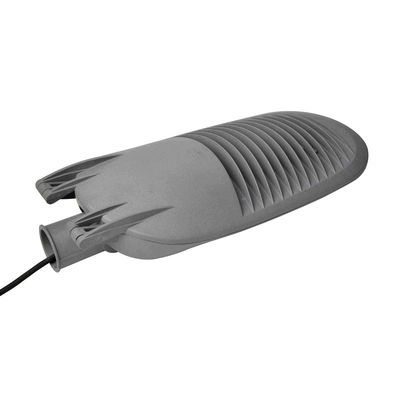

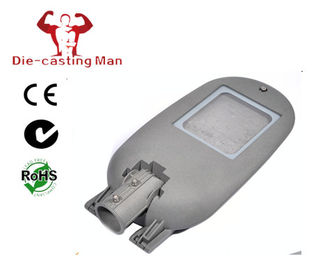

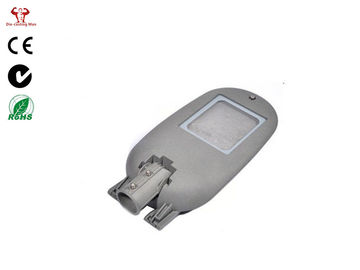

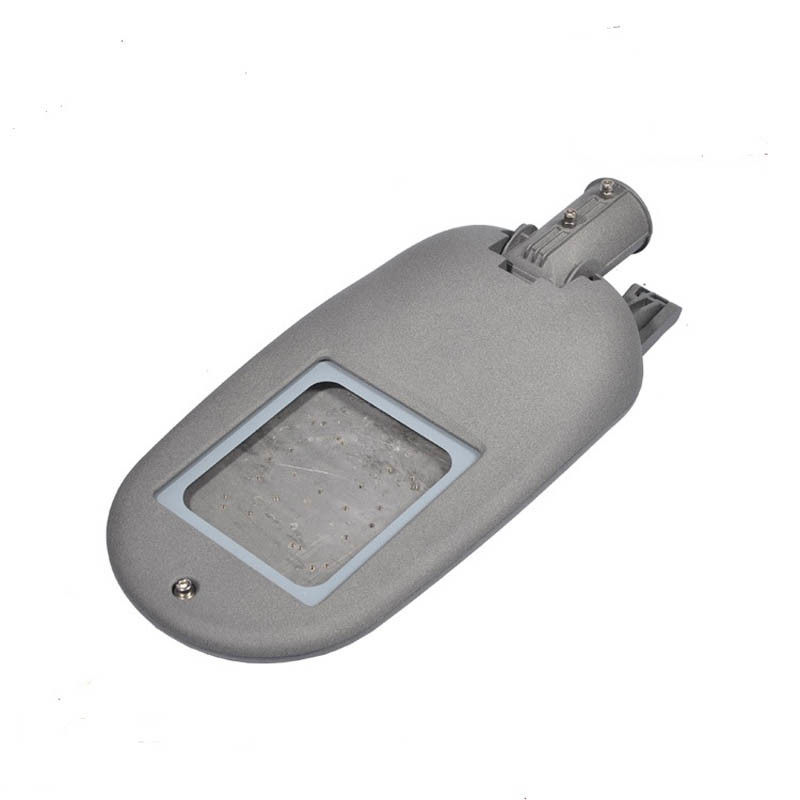

Aluminum Die Casting 120W Outdoor LED Street Light Housing / Street Lighting Fixture
ITEM NO: ZHSL-09
Product Specification:
| LED Quantity | 16pcs | 48pcs | 50pcs |
| Rated Power | 50W | 100W | 150W |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Initial Luminous Flux | 5000LM | 10000LM | 15000LM |
| Input Voltage | AC100-240V | AC100-240V | AC100-240V |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color Rendering Index | Ra>70 | Ra>70 | Ra>70 |
| Temperature Working Condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| Humidity of Working Condition | 20-90% | 20-90% | 20-90% |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP65 | IP65 | IP65 |
| Installation Pipe Diameter | 50mm & 60mm | 60mm | 60mm |
| Installation Height | 8-10m | 8-10m | 8-10m |
| Product Dimension | 485*230*98mm | 622*292*112mm | 853*376*137mm |
| Net Weight | 3.5 kgs | 5.4 kgs | 12.5 kgs |
| Gross Weight | 4.3 kgs | 6.2 kgs | 13.5 kgs |
| Packing Size | 52 *25 * 21 cm | 67.5*31.5 *15.5 cm | 89*39*17cm |
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
We are a professional Die casting factory for around 30years.
| Product name | technology innovation 2016 die casting aluminum 50000hrs 28w led street lights |
| POWER | 120W/150W/180W |
| Finishes | UV resisted powder coating |
| COLOR | Grey Black White |
| Pole size | 50MM/60MM |
| Reflector | Optional |
| Customize Logo | Available |
| Packaging Detail | 1pc/Ctn with styrofoam protect |
| OEM,ODM | Welcome |
| MOQ | no requirement |
| Sample Lead Time | 7-15days |
| Payment Terms | LC at sight or T/T 30% in advance ,balance against shipping documents |
| FOB | NINGBO/SHANGHAI |
| Production Time |
30-40days according to order quantity |
Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We are glad to send led street lights 28w samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: How to confirm the quality with us before starting to produce?
1) We can provide led street lights 28w samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.
Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
