Beam Angle: | 120° | Voltage: | AC85-265V |
---|---|---|---|
Material: | Aluminum | CRI: | >80 |
Color Temperature: | 3000K-6000K | Color: | Customized Ral. No. Such As Gray, Black, White |
Warranty: | 3 Years | Power: | 30W - 150W - 300W |
High Light: | Urban Projects Aluminum Street lamp Housing,8m Aluminum Street lamp Housing,10m Aluminum Street lamp Housing |

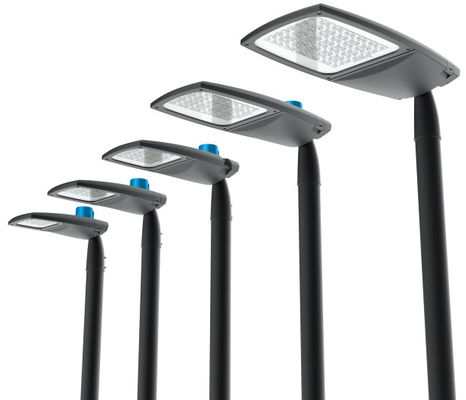

The ADC12 Aluminum Housing dustproof design ensures that the street light is protected from dust and other environmental factors that may cause damage. This makes it a durable and long-lasting option for outdoor lighting. The Die Casting Man Aluminum Streetlamp Housing comes in various sizes, including 6m, 8m, 10m, and 12m, which makes it suitable for different applications.
The working temperature of the Aluminum Led Street Light ranges from -20℃-50℃, which means that it can function well in different weather conditions. Additionally, the CRI (Color Rendering Index) of >80 ensures that the colors of the illuminated objects are accurately represented, making it a great option for outdoor areas that require good lighting.
This street light is easy to install and maintain, making it a cost-effective option for outdoor lighting. It is also energy-efficient and environmentally friendly, which makes it an ideal option for those looking to reduce their carbon footprint.
Product Code | YASL-25-40(M) | YASL-25-60(M) | YASL-25-100(M) | YASL-25-150(M) | YASL-25-240(M) | |||
Input Wattage(W) | 30-50 | 50-80 | 60-120 | 120-200 | 200-320 | |||
Number of lenses(PCS) | 4 | 6 | 9 | 15 | 24 | |||
Product Size(m m) | 563x215x110 | 613x240x110.2 | 654x256x114 | 780x287x114 | 834x341x114 | |||
Packing Size(m m) | 610x250x260 | 660x280x260 | 710x300x260 | 810x330x260 | 860x380x260 | |||
Net Weight (kgs) | 2.2 | 2.6 | 3.1 | 4 | 5.5 | |||
Gross Weight (kgs) | 4.9 | 5.7 | 6.7 | 8.5 | 11.5 | |||
Quantity of packing (pcs) | 2 | 2 | 2 | 2 | 2 | |||
Installation Height (m) | 3~8 | 4~8 | 6~10 | 8~12 | 8~14 | |||
Installation Pipe Diameter | 60 | 60 | 60 | 60 | 60/76 | |||
adjustable angle | ±15°Adjustable | |||||||
Materials | Housing:ADC12;Cover:Toughened Glass;Screws:304stainless screws | |||||||
Spray colors | Double Grey; Sandy Black; Matt Silver | |||||||
Led brand | LUMILEDS, OSRAM,CREE(Optional) | |||||||
Led Specifications | 3030,5050(Optional) | |||||||
Optical effect | 130~190 lm/w(Optional) | |||||||
Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K(Optional)(Reference: Energy Star) | |||||||
color rendering index | Ra≥70;Ra≥80;Ra≥90(Optional) | |||||||
Optics | TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV(Optional) | |||||||
Driver brand | INVENTRONICS | |||||||
Input Voltage | AC90~305V | |||||||
Security level | ClassI/ClassII/Class1/Class2(Optional) | |||||||
Frequency Range | 50/60Hz | |||||||
Power Factor | PF≥0.95 | |||||||
Protection | Overcurrent/Short circuit/Over temperature | |||||||
Dimming mode | Time control/0-10V/ Optical control/Microwaves/DALI(Optional) | |||||||
Lightning protection | 10KV/15KV/20KV(Optional) | |||||||
Working conditions Range | -40 to 45℃,20% to 90%RH | |||||||
Warranty | 5/8 year(Optional) | |||||||
Protection level | IP66;GlassIK08/09/10(Optional),Lamp shell IK08. | |||||||
Certifications | ENEC;CE;CB;IEC;RoHS;TUV;Lightning protection;LM-79;LM-80;IP66 |
With a luminous flux of 4000LM and a beam angle of 120°, the YASL-35 provides ample light coverage for a wide range of outdoor areas, including streets, parking lots, and stadiums. Its high CRI of >80 ensures that colors are rendered accurately and vividly, making it an ideal choice for areas where color accuracy is important, such as outdoor events and advertising installations.
The YASL-35 is available in three power options: 30W, 150W, and 300W, making it a versatile lighting solution for a range of outdoor environments. Its energy-saving capabilities make it an eco-friendly choice for those looking to reduce their energy consumption and carbon footprint.
This hot sale energy-saving street light is certified by CE, EMC, LVD, ENEC, and RoHs, ensuring its compliance with international quality and safety standards. The minimum order quantity is 1PC, with prices ranging from US$21.6 to US$44.6. Each light is packaged individually and delivery time ranges from 7-35 days, depending on the location.
Overall, the Die-casting Man Aluminum Led Street Light is an excellent choice for those looking for a reliable, energy-efficient, and high-quality lighting solution for their outdoor spaces. With its durable construction, powerful illumination, and eco-friendly features, it is an investment that is sure to provide long-lasting benefits.
We can customize your street lights with a custom design, zhaga sensor for street lighting 100W, and Die Casting Man Aluminum Streetlamp Housing for 6m, 8m, 10m, and 12m poles. Our intelligent Lampadaires Outdoor Led Street Lights have a CRI of >80, IP Rating of IP66, and can withstand temperatures ranging from -20℃-50℃. The color temperature of our lights can be adjusted from 3000K-6000K to meet your needs. Additionally, our lights come with a 3-year warranty.
The Aluminum Led Street Light is a high-performance and energy-efficient lighting solution designed for outdoor urban spaces such as streets, highways, and parking lots. It boasts a sleek, modern design and is constructed with durable, corrosion-resistant materials to withstand harsh weather conditions and resist damage from vandalism.
This product comes equipped with advanced LED technology that provides bright and uniform lighting while consuming significantly less energy than traditional lighting systems. The LED light source also has a long lifespan, reducing maintenance costs and the need for frequent replacements.
Our technical support and services team is available to assist with any questions or issues that may arise with the Aluminum Led Street Light. We offer comprehensive product training, troubleshooting, and maintenance services to ensure optimal performance and longevity of the product.
In addition, we provide customization options for the Aluminum Led Street Light to meet specific project requirements and preferences. This includes options for color temperature, beam angle, and dimming capabilities.
