Product Description:
The LED SMD light source is not only energy-efficient, but also has a long lifespan of up to 50,000 hours. This means less frequent replacement and maintenance, saving you time and money in the long run. Not only that, but the durable build of these road LED lights ensures they can withstand harsh outdoor conditions, making them a reliable choice for any outdoor lighting needs.
We are confident in the quality of our outdoor LED street lights, which is why we offer a 3-5 year warranty. This gives you peace of mind knowing that your investment is protected and we stand behind our products.
These smart outdoor lights are designed to provide maximum efficiency and safety, making them an ideal choice for any outdoor lighting needs. Whether it's for residential or commercial use, our outdoor LED street lights are guaranteed to meet your lighting requirements.
Features:

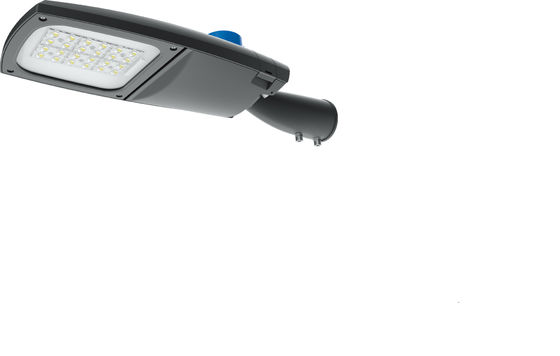

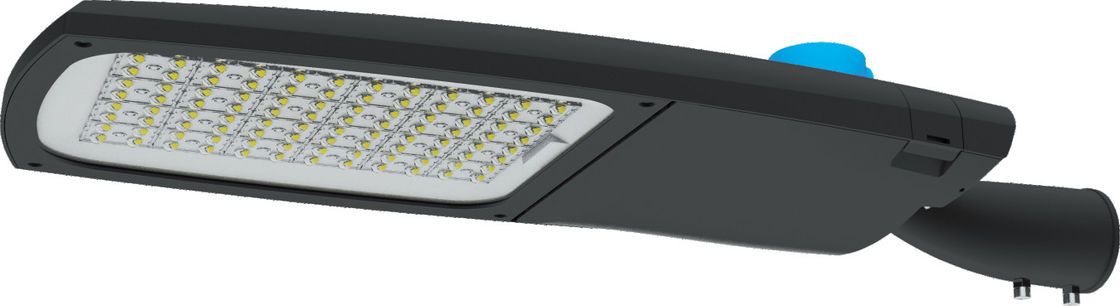

- Product Name: Outdoor LED Street Lights
- Working Temperature: -40℃~50℃
- Beam Angle: 120°
- Color Temperature: 3000K-6000K
- Material: Die-casting Aluminum
- CRI: >70
- High lumen LED street light energy saving
- Die-cast shell body
Technical Parameters:
Product Code:
YASL-35-40(M), YASL-35-60(M), YASL-35-100(M), YASL-35-150(M), YASL-35-240(M)
Specifications:
| Product Code |
YASL-35-40(M) |
YASL-35-60(M) |
YASL-35-100(M) |
YASL-35-150(M) |
YASL-35-240(M) |
| Input Wattage(W) |
30-50 |
50-80 |
60-120 |
120-200 |
200-320 |
| Number of lenses(PCS) |
4 |
6 |
9 |
15 |
24 |
| Product Size(m m) |
563x215x110 |
613x240x110.2 |
654x256x114 |
780x287x114 |
834x341x114 |
| Packing Size(m m) |
610x250x260 |
660x280x260 |
710x300x260 |
810x330x260 |
860x380x260 |
| Net Weight (kgs) |
2.2 |
2.6 |
3.1 |
4 |
5.5 |
| Gross Weight (kgs) |
4.9 |
5.7 |
6.7 |
8.5 |
11.5 |
| Quantity of packing (pcs) |
2 |
2 |
2 |
2 |
2 |
| Installation Height (m) |
3～8 |
4～8 |
6～10 |
8～12 |
8～14 |
| Installation Pipe Diameter |
60 |
60 |
60 |
60 |
60/76 |
| adjustable angle |
±15°Adjustable |
| Materials |
Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws |
| Spray colors |
Double Grey；Sandy Black；Matt Silver |
| Led Specifications |
3030,5050(Optional) |
| Optical effect |
130～190 lm/w(Optional) |
| Color Temperature |
2700K,3000K,3500K,4000K,5000K,5700K,6500K(Optional)(Reference:Energy Star) |
| color rendering index |
Ra≥70；Ra≥80；Ra≥90(Optional) |
| Optics |
TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV(Optional) |
| Driver brand |
as your request |
| Input Voltage |
AC90～305V |
| Security level |
ClassI/ClassII/Class1/Class2(Optional) |
| Frequency Range |
50/60Hz |
| Power Factor |
PF≥0.95 |
| Protection |
Overcurrent/Short circuit/Over temperature |
| Dimming mode |
Time control/0-10V/ Opticalcontrol/Microwaves/DALI(Optional) |
| Lightning protection |
10KV/15KV/20KV(Optional) |
| Working conditions Range |
-40 to 45℃,20% to 90%RH |
| Warranty |
5/8 year(Optional) |
| Protection level |
IP66;GlassIK08/09/10(Optional),Lamp shell IK08. |
| Certifications |
ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66 |
Other Specifications:
- Materials: Housing:ADC12, Cover:Toughened Glass, Screws:304 stainless screws
- Spray Colors: Double Grey, Sandy Black, Matt Silver
- Led Specifications: 3030, 5050 (Optional)
- Optical Effect: 130~190 lm/w (Optional)
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
- Color Rendering Index: Ra≥70, Ra≥80, Ra≥90 (Optional)
- Optics: TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional)
- Input Voltage: AC90~305V
- Security Level: ClassI / ClassII / Class1 / Class2 (Optional)
- Frequency Range: 50/60Hz
- Power Factor: PF≥0.95
- Protection: Overcurrent / Short circuit / Over temperature
- Dimming Mode: Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional)
- Lightning Protection: 10KV / 15KV / 20KV (Optional)
- Working Conditions Range: -40 to 45℃, 20% to 90% RH
- Warranty: 5/8 years (Optional)
- Protection Level: IP66, GlassIK08/09/10 (Optional), Lamp shell IK08
- Certifications: CE; IEC; RoHs; Lightning protection; LM-79; LM-80; IP66
Applications:
These road LED lights are perfect for use on main roads, highways, flyovers, city streets, overpasses, sidewalks, squares, schools, residential districts, industrial areas, and parks. With an input voltage of AC85-265V, they can be used in a wide range of locations without any issues.
These lights are made from high-quality die-casting aluminum, which ensures durability and reliability. With an IP rating of IP65, they can withstand harsh weather conditions and are suitable for outdoor use.
Die-casting Man's YASL-35 outdoor LED street lights come with CE, EMC, LVD, and ENEC certifications, ensuring that they meet international standards for safety and quality. They are also available at a competitive price range of US$19.3 - US$42.3, making them a cost-effective solution for outdoor lighting needs.
With a minimum order quantity of 1PC, these lights can be purchased in small quantities or in bulk. They are delivered in packaging details of 1PC/CTN and have a delivery time of 7-5 days. Payment terms are TT, and the supply ability is 10000PCS/M, ensuring that these lights are readily available for purchase.
Overall, Die-casting Man's YASL-35 outdoor LED street lights are a versatile and reliable option for outdoor lighting needs. Whether you need to illuminate a main road or a park, these lights are the perfect solution.
FAQ:
A: The brand name of the Outdoor LED Street Lights is Die-casting Man.
Q: What is the model number of the Outdoor LED Street Lights?
A: The model number of the Outdoor LED Street Lights is YASL-35.
Q: Where is the Outdoor LED Street Lights manufactured?
A: The Outdoor LED Street Lights is manufactured in Ningbo, China.
Q: What certifications does the Outdoor LED Street Lights have?
A: The Outdoor LED Street Lights has CE, EMC, LVD, ENEC certifications.
Q: What is the minimum order quantity for the Outdoor LED Street Lights?
A: The minimum order quantity for the Outdoor LED Street Lights is 1PC.
Q: What is the price range of the Outdoor LED Street Lights?
A: The price range of the Outdoor LED Street Lights is US$19.3 - US$42.3.
Q: What are the packaging details of the Outdoor LED Street Lights?
A: The packaging details of the Outdoor LED Street Lights is 1PC/CTN.
Q: What is the delivery time for the Outdoor LED Street Lights?
A: The delivery time for the Outdoor LED Street Lights is 7-5DAYS.
Q: What are the payment terms for the Outdoor LED Street Lights?
A: The payment terms for the Outdoor LED Street Lights is TT.
Q: What is the supply ability of the Outdoor LED Street Lights?
A: The supply ability of the Outdoor LED Street Lights is 10000PCS/M.
