IP66 Lora Sensor Waterproof Led Lamp For Industrial Applications

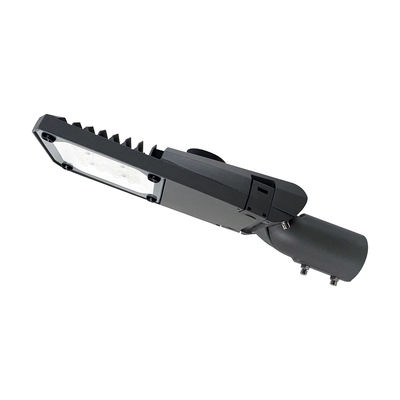

Large Image : IP66 Lora Sensor Waterproof Led Lamp For Industrial Applications

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE. EMC, LVD, ENEC, RoHs
Model Number:	YASL-28-60

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$19.3 - US$42.3
Packaging Details:	1PC/CTN
Delivery Time:	35DAYS
Payment Terms:	TT
Supply Ability:	50000PCS/M

Contact Now

Detailed Product Description

Power Factor:	>0.95	Lamp Efficiency:	150lm/W
Size:	Customized	Working Temperature:	-40℃~+50℃
Color:	Customized Ral. No. Such As Gray, Black, White	CRI:	Ra>70, 80
Body Color:	Dark Gray	Beam Angle:	120°
Highlight:	IP66 Waterproof Led Lamp , Industrial Waterproof Led Lamp , Lora Sensor Waterproof Led Lamp

Features:

Product Name: LED Street Light Housing
Lamp Efficiency: 150lm/W
Warranty: 5 Years
Body color: Dark Gray
Power Factor: >0.95
IP Rating: IP65

Roadway and Street Lighting Manufacturers will appreciate the pole light aluminium body and 50w LED Street Light Housing.

Technical Parameters:

Lamp Power	30W-150W-300W
IP Rating	IP65
Body Color	Dark Gray
Color	Customized Ral. No. Such As Gray, Black, White
Application	- Highway Roads - Streets - Parking Lots - Residential Areas
Lamp Efficiency	150lm/W
Working Temperature	-40℃~+50℃
Material	Aluminum Alloy
Power Factor	>0.95
Beam Angle	120°

Product Specification

Product Code	YASL-28-40	YASL-28-60	YASL-28-90	YASL-28-120	YASL-28-160	YASL-28-240 I
Input Wattage (W)	30～50	50～80	80～120	100～150	150～200	200～320
Number of Lenses (PCS)	4	6	9	12	16	24
Product Size (mm)	492×183×97	541×200×113	602×243×121	652×263×121	722×314×121	823×314×121
Packing Size (mm)	550×220×230	600×240×165	650×280×170	700×300×170	755×335×170	875×335×170
Net Weight (kgs)	2.3	2.8	3.5	4	5.1	5.9
Gross Weight (kgs)	2.6	3.4	4.3	4.9	6	6.9
Quantity of Packing (PCS)	2	1	1	1	1	1
Installation Height (m)	3～8	4～8	6～10	8～12	8～12	8～14
Installation Pipe Diameter	Φ48/60mm	Φ48/60mm	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Adjustable Angle	±15°Adjustable
Materials	Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws
Spray Colors	Double Grey, Sandy Black, Matt Silver
Led Brand	LUMILEDS, OSRAM, CREE (Optional)
Led Specifications	3030, 5050 (Optional)
Optical Effect	130～190lm/w (Optional)
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
Color Rendering Index	Ra>70, Ra>80, Ra>90 (Optional)
Optics	TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional)
Driver Brand	PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
Input Voltage	AC90～305V
Security Level	Classl / Classll / Classl / Class2 (Optional)
Frequency Range	50/60HZ
Power Factor	PF>0.95
Protection	Overcurrent / Short circuit / Over temperature
Dimming Mode	Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional)
Lightning Protection	10KV / 15KV / 20KV (Optional)
Working Conditions Range	-40 to 45°C, 20% to 90% RH
Warranty	5/8 years (Optional)
Protection Level	IP66, GlasslK08/09/10 (Optional), Lamp shell IK08
Certifications	ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66

IP66 Lora Sensor Waterproof Led Lamp For Industrial Applications 0

LED Street Light YASL-28

Product Description

This series is a high-performance street lighting available in six sizes. The luminaire is manufactured from high pressure die-casting aluminum.lt shall have a led efficiency up to 170 Im/w and will be capable of producing up to 40800 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS

IP66 Lora Sensor Waterproof Led Lamp For Industrial Applications 1

YASL-28	IES Type Light Distribution Cure
	DH-T1	DH-T2-L	DH-T2-M	DH-T2-MB	DH-T3-M	DH-T3-MA	DH-T3-MB	DH-T4-M
	DH-T5-M	DY-T2-M	DY-T3-M	GY-T1-M	GY-T2-S	GY-T2-M	GY-T3-M	GY-T2-M01
	GY-T3-M01	GX-T2-S	GX-T2-M	GX-T3-M	GX-T4-M	GX-T4-L	GX-T5	GJ-T2-M
	GJ-T3-M	GJ-T4-M	HY-T2-S	HY-T3-M	HX-T2-S	HX-T2-M	HX-T3-M	HX-T4-M

Support and Services:

The LED Street Light Housing product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to assist with installation, troubleshooting, maintenance, and repair of the product.

Our technical support includes:

Guidance on proper installation
Assistance with product configuration and customization
Expert advice on troubleshooting and maintenance
Access to software and firmware updates

In addition, we offer various services to help you get the most out of your LED Street Light Housing:

On-site training and support for installation and maintenance
Customized design and engineering services to meet specific project requirements
Warranty and repair services to ensure product longevity and minimize downtime
Consultation services to help you choose the right product for your needs
