150Im/w LED Street Light With Heat Sink Strip

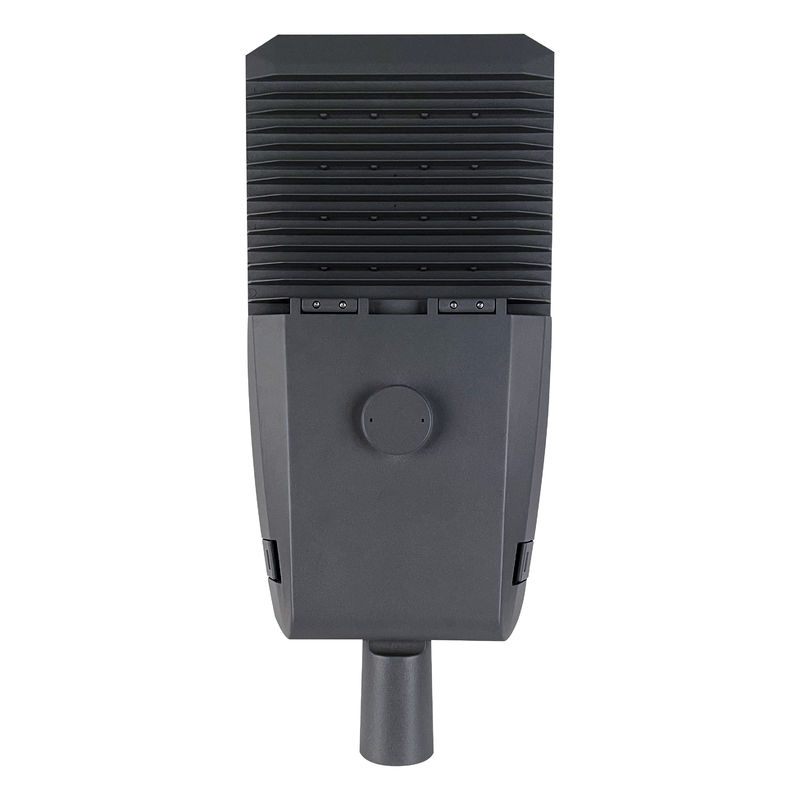

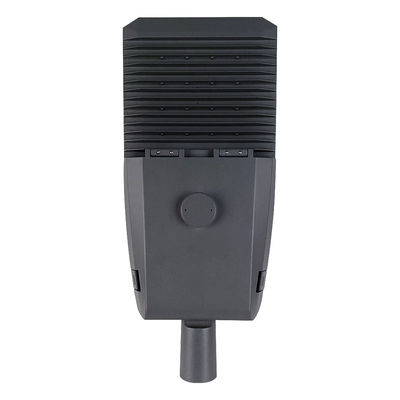

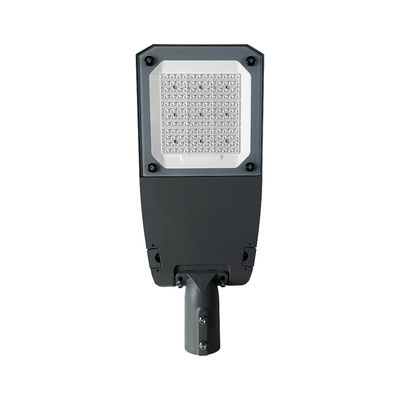

Large Image : 150Im/w LED Street Light With Heat Sink Strip

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE. EMC, LVD, ENEC, RoHs
Model Number:	YASL-28-60

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$19.3 - US$42.3
Packaging Details:	1PC/CTN
Delivery Time:	35DAYS
Payment Terms:	TT
Supply Ability:	50000PCS/M

Contact Now

Detailed Product Description

Color:	Customized Ral. No. Such As Gray, Black, White	Power Factor:	>0.95
Lifespan:	50,000hrs	Warranty:	5Years
CRI:	Ra>70, 80	Lamp Power:	30W-150W-300W
Working Temperature:	-40℃~+50℃	Application:	- Highway Roads - Streets - Parking Lots - Residential Areas
Highlight:	150Im/w LED street light , Heat Sink Strip LED street light

Features:

Product Name: LED Street Light Housing
Warranty: 5 Years
Power Factor: >0.95
Working Temperature: -40℃~+50℃
Color: Customized Ral. No. Such As Gray, Black, White
Beam Angle: 120°

These LED Street Light Housings are perfect for solar street lights outdoor waterproof, led landscape lighting, and street LED light shell.

Technical Parameters:

Product Attribute	Specification
Product Name	Street Light Housing / Street LED Light Shell / Pole Light Aluminium Body
Body Color	Dark Gray
Working Temperature	-40℃~+50℃
Warranty	5 Years
Material	Aluminum Alloy
Application	- Highway Roads - Streets - Parking Lots - Residential Areas
CRI	Ra>70, 80
Lamp Power	30W-150W-300W
IP Rating	IP65
Lamp Efficiency	150lm/W
Size	Customized

Product Specification

Product Code	YASL-28-40	YASL-28-60	YASL-28-90	YASL-28-120	YASL-28-160	YASL-28-240 I
Input Wattage (W)	30～50	50～80	80～120	100～150	150～200	200～320
Number of Lenses (PCS)	4	6	9	12	16	24
Product Size (mm)	492×183×97	541×200×113	602×243×121	652×263×121	722×314×121	823×314×121
Packing Size (mm)	550×220×230	600×240×165	650×280×170	700×300×170	755×335×170	875×335×170
Net Weight (kgs)	2.3	2.8	3.5	4	5.1	5.9
Gross Weight (kgs)	2.6	3.4	4.3	4.9	6	6.9
Quantity of Packing (PCS)	2	1	1	1	1	1
Installation Height (m)	3～8	4～8	6～10	8～12	8～12	8～14
Installation Pipe Diameter	Φ48/60mm	Φ48/60mm	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Adjustable Angle	±15°Adjustable
Materials	Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws
Spray Colors	Double Grey, Sandy Black, Matt Silver
Led Brand	LUMILEDS, OSRAM, CREE (Optional)
Led Specifications	3030, 5050 (Optional)
Optical Effect	130～190lm/w (Optional)
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
Color Rendering Index	Ra>70, Ra>80, Ra>90 (Optional)
Optics	TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional)
Driver Brand	PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
Input Voltage	AC90～305V
Security Level	Classl / Classll / Classl / Class2 (Optional)
Frequency Range	50/60HZ
Power Factor	PF>0.95
Protection	Overcurrent / Short circuit / Over temperature
Dimming Mode	Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional)
Lightning Protection	10KV / 15KV / 20KV (Optional)
Working Conditions Range	-40 to 45°C, 20% to 90% RH
Warranty	5/8 years (Optional)
Protection Level	IP66, GlasslK08/09/10 (Optional), Lamp shell IK08
Certifications	ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66

150Im/w LED Street Light With Heat Sink Strip 0

LED Street Light YASL-28

Product Description

This series is a high-performance street lighting available in six sizes. The luminaire is manufactured from high pressure die-casting aluminum.lt shall have a led efficiency up to 170 Im/w and will be capable of producing up to 40800 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS

150Im/w LED Street Light With Heat Sink Strip 1

YASL-28	IES Type Light Distribution Cure
	DH-T1	DH-T2-L	DH-T2-M	DH-T2-MB	DH-T3-M	DH-T3-MA	DH-T3-MB	DH-T4-M
	DH-T5-M	DY-T2-M	DY-T3-M	GY-T1-M	GY-T2-S	GY-T2-M	GY-T3-M	GY-T2-M01
	GY-T3-M01	GX-T2-S	GX-T2-M	GX-T3-M	GX-T4-M	GX-T4-L	GX-T5	GJ-T2-M
	GJ-T3-M	GJ-T4-M	HY-T2-S	HY-T3-M	HX-T2-S	HX-T2-M	HX-T3-M	HX-T4-M

Support and Services:

The LED Street Light Housing product comes with technical support and services to ensure proper installation and functioning. Our team of experts can provide assistance with any issues that may arise during the installation process or with the performance of the product. Additionally, we offer regular maintenance services to keep the LED street lights in optimal condition and extend their lifespan. Our services include but are not limited to:

Installation guidance
Technical support
Regular maintenance
Replacement parts and repairs

We are committed to providing our customers with the highest level of support and service to ensure their satisfaction with the LED Street Light Housing product.
