Features:

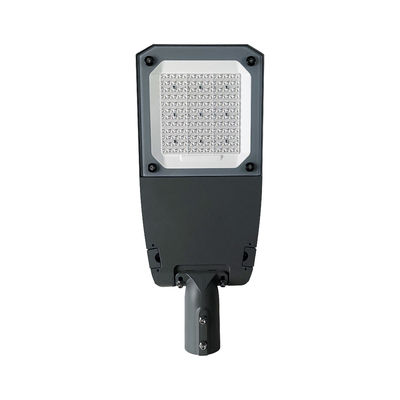

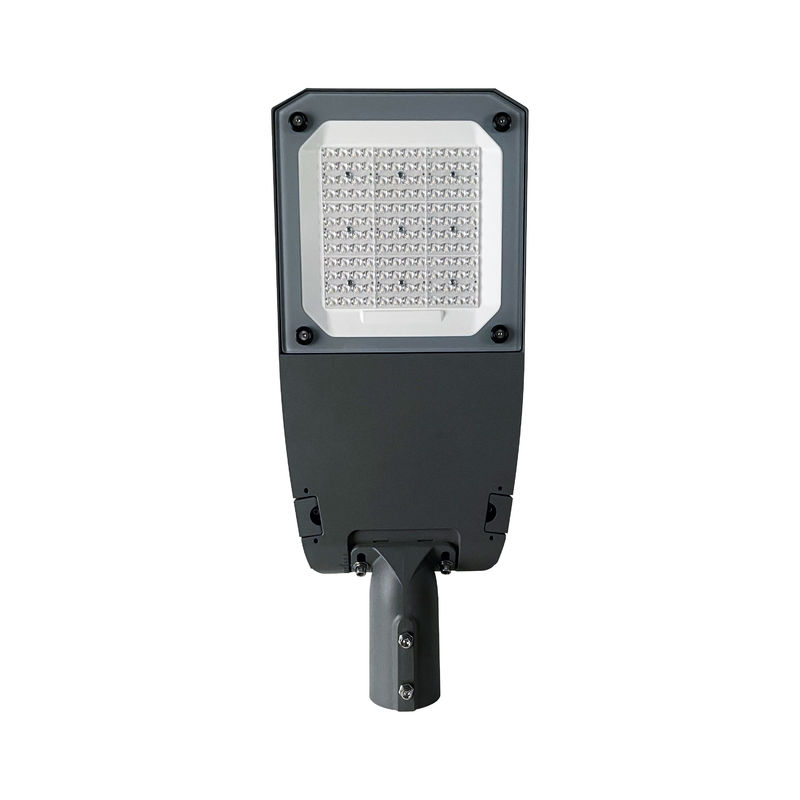

- Product Name: die casting aluminium LED Street Light Housing
- Warranty: 5 Years
- Lamp Efficiency: 150lm/W
- Power Factor: >0.95
- Working Temperature: -40℃~+50℃
- Size: Customized
This LED Street Light Housing is perfect for use with LED street lights and LED landscape lighting.
Technical Parameters:
| Product Attribute |
Value |
| Product Name |
Street LED Light Shell |
| Material |
Pole Light Aluminium Body |
| Lamp Power |
30W-150W-300W |
| Lamp Efficiency |
150lm/W |
| Beam Angle |
120° |
| Color |
Customized Ral. No. Such As Gray, Black, White |
| Application |
- Highway Roads - Streets - Parking Lots - Residential Areas |
| Power Factor |
>0.95 |
| Lifespan |
50,000hrs |
| IP Rating |
IP65 |
| Working Temperature |
-40℃~+50℃ |
Product Specification
| Product Code |
YASL-28-40 |
YASL-28-60 |
YASL-28-90 |
YASL-28-120 |
YASL-28-160 |
YASL-28-240 I |
| Input Wattage (W) |
30～50 |
50～80 |
80～120 |
100～150 |
150～200 |
200～320 |
| Number of Lenses (PCS) |
4 |
6 |
9 |
12 |
16 |
24 |
| Product Size (mm) |
492×183×97 |
541×200×113 |
602×243×121 |
652×263×121 |
722×314×121 |
823×314×121 |
| Packing Size (mm) |
550×220×230 |
600×240×165 |
650×280×170 |
700×300×170 |
755×335×170 |
875×335×170 |
| Net Weight (kgs) |
2.3 |
2.8 |
3.5 |
4 |
5.1 |
5.9 |
| Gross Weight (kgs) |
2.6 |
3.4 |
4.3 |
4.9 |
6 |
6.9 |
| Quantity of Packing (PCS) |
2 |
1 |
1 |
1 |
1 |
1 |
| Installation Height (m) |
3～8 |
4～8 |
6～10 |
8～12 |
8～12 |
8～14 |
| Installation Pipe Diameter |
Φ48/60mm |
Φ48/60mm |
Φ60mm |
Φ60mm |
Φ60mm |
Φ60mm |
| Adjustable Angle |
±15°Adjustable |
| Materials |
Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws |
| Spray Colors |
Double Grey, Sandy Black, Matt Silver |
| Led Brand |
LUMILEDS, OSRAM, CREE (Optional) |
| Led Specifications |
3030, 5050 (Optional) |
| Optical Effect |
130～190lm/w (Optional) |
| Color Temperature |
2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star) |
| Color Rendering Index |
Ra>70, Ra>80, Ra>90 (Optional) |
| Optics |
TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional) |
| Driver Brand |
PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS |
| Input Voltage |
AC90～305V |
| Security Level |
Classl / Classll / Classl / Class2 (Optional) |
| Frequency Range |
50/60HZ |
| Power Factor |
PF>0.95 |
| Protection |
Overcurrent / Short circuit / Over temperature |
| Dimming Mode |
Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional) |
| Lightning Protection |
10KV / 15KV / 20KV (Optional) |
| Working Conditions Range |
-40 to 45°C, 20% to 90% RH |
| Warranty |
5/8 years (Optional) |
| Protection Level |
IP66, GlasslK08/09/10 (Optional), Lamp shell IK08 |
| Certifications |
ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66 |
Product Description
This series is a high-performance street lighting available in six sizes. The luminaire is manufactured from high pressure die-casting aluminum.lt shall have a led efficiency up to 170 Im/w and will be capable of producing up to 40800 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
| YASL-28 |
IES Type Light Distribution Cure |
| DH-T1 |
DH-T2-L |
DH-T2-M |
DH-T2-MB |
DH-T3-M |
DH-T3-MA |
DH-T3-MB |
DH-T4-M |
| DH-T5-M |
DY-T2-M |
DY-T3-M |
GY-T1-M |
GY-T2-S |
GY-T2-M |
GY-T3-M |
GY-T2-M01 |
| GY-T3-M01 |
GX-T2-S |
GX-T2-M |
GX-T3-M |
GX-T4-M |
GX-T4-L |
GX-T5 |
GJ-T2-M |
| GJ-T3-M |
GJ-T4-M |
HY-T2-S |
HY-T3-M |
HX-T2-S |
HX-T2-M |
HX-T3-M |
HX-T4-M |
Applications:
With lamp power ranging from 30W-150W-300W, Die-casting Man's LED Street Light Housing is suitable for various occasions and scenarios. It is a perfect choice for roadway and street lighting manufacturers. The product is highly durable, and it comes in customized Ral. No. such as gray, black, and white colors, making it ideal for different types of environments.
The product is equipped with a power factor of >0.95, which ensures that it consumes less power and provides high efficiency. It is also fitted with an IP66 Lora sensor waterproof LED lamp that ensures that it is safe from water damage. This feature makes it ideal for areas that experience heavy rainfall and other weather conditions.
With a minimum order quantity of 1PC and a price range of US$19.3-US$42.3, Die-casting Man's LED Street Light Housing is affordable and accessible to everyone. The packaging is done in 1PC/CTN, and the delivery time is 35 days. Payment terms are through TT, and the supply ability is 50000PCS/M.
Overall, Die-casting Man's LED Street Light Housing is a high-quality product that is durable, efficient, and affordable. It is suitable for various occasions and scenarios, making it a perfect choice for roadway and street lighting manufacturers. Get in touch with us today to place your order.
Customization:
Support and Services:
Our LED street light housing product comes with comprehensive technical support and services to ensure your satisfaction and optimal performance of the product. Our team of experts is available to assist with any technical issues you may encounter, from installation to maintenance and repairs.
We offer a range of services, including:
- Installation guidance and support
- Product training and education
- Regular maintenance and cleaning services
- Repair and replacement of damaged components
- Technical troubleshooting and problem-solving
We are committed to delivering exceptional customer service and ensuring that our LED street light housing product meets and exceeds your expectations. Contact us today to learn more about our technical support and services.
