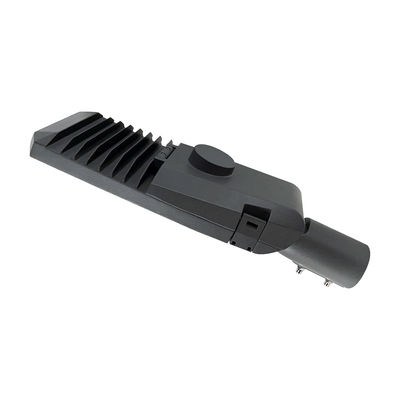

AC85-265V Input Voltage LED Street Light Housing Customized Design High Power Factor

Large Image : AC85-265V Input Voltage LED Street Light Housing Customized Design High Power Factor

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE. EMC, LVD, ENEC, RoHs
Model Number:	YASL-28-240

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$19.3 - US$42.3
Packaging Details:	1PC/CTN
Delivery Time:	35DAYS
Payment Terms:	TT
Supply Ability:	50000PCS/M

Contact Now

Detailed Product Description

Lamp Efficiency:	150lm/W	CRI:	Ra>70, 80
Working Temperature:	-40℃~+50℃	Body Color:	Dark Gray
Application:	- Highway Roads - Streets - Parking Lots - Residential Areas	IP Rating:	IP65
Lifespan:	50,000hrs	Warranty:	5Years
Highlight:	Customized Design LED Street Light Housing , AC85-265V LED Street Light Housing , High Power LED Street Light Housing

Features:

Product Name: LED Street Light Housing
Size: Customized
IP Rating: IP65
Input Voltage: AC85-265V
Working Temperature: -40℃~+50℃
Application:
- - Highway Roads
- - Streets
- - Parking Lots
- - Residential Areas

The street led light shell is designed to accommodate the IP66 Lora Sensor Waterproof Led Lamp, making it suitable for a variety of outdoor lighting applications, including led street lights.

Technical Parameters:

Warranty	5 Years
Material	Aluminum Alloy
Beam Angle	120°
Input Voltage	AC85-265V
Size	Customized
Color	Customized Ral. No. Such As Gray, Black, White
Lamp Efficiency	150lm/W
Body Color	Dark Gray
Working Temperature	-40℃~+50℃
IP Rating	IP65

Product Specification

Product Code	YASL-28-40	YASL-28-60	YASL-28-90	YASL-28-120	YASL-28-160	YASL-28-240 I
Input Wattage (W)	30～50	50～80	80～120	100～150	150～200	200～320
Number of Lenses (PCS)	4	6	9	12	16	24
Product Size (mm)	492×183×97	541×200×113	602×243×121	652×263×121	722×314×121	823×314×121
Packing Size (mm)	550×220×230	600×240×165	650×280×170	700×300×170	755×335×170	875×335×170
Net Weight (kgs)	2.3	2.8	3.5	4	5.1	5.9
Gross Weight (kgs)	2.6	3.4	4.3	4.9	6	6.9
Quantity of Packing (PCS)	2	1	1	1	1	1
Installation Height (m)	3～8	4～8	6～10	8～12	8～12	8～14
Installation Pipe Diameter	Φ48/60mm	Φ48/60mm	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Adjustable Angle	±15°Adjustable
Materials	Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws
Spray Colors	Double Grey, Sandy Black, Matt Silver
Led Brand	LUMILEDS, OSRAM, CREE (Optional)
Led Specifications	3030, 5050 (Optional)
Optical Effect	130～190lm/w (Optional)
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
Color Rendering Index	Ra>70, Ra>80, Ra>90 (Optional)
Optics	TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional)
Driver Brand	PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
Input Voltage	AC90～305V
Security Level	Classl / Classll / Classl / Class2 (Optional)
Frequency Range	50/60HZ
Power Factor	PF>0.95
Protection	Overcurrent / Short circuit / Over temperature
Dimming Mode	Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional)
Lightning Protection	10KV / 15KV / 20KV (Optional)
Working Conditions Range	-40 to 45°C, 20% to 90% RH
Warranty	5/8 years (Optional)
Protection Level	IP66, GlasslK08/09/10 (Optional), Lamp shell IK08
Certifications	ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66

AC85-265V Input Voltage LED Street Light Housing Customized Design High Power Factor 0

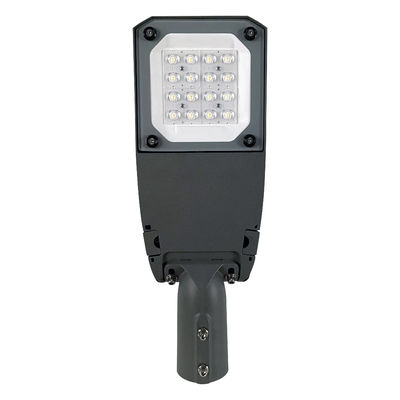

LED Street Light YASL-28

Product Description

This series is a high-performance street lighting available in six sizes. The luminaire is manufactured from high pressure die-casting aluminum.lt shall have a led efficiency up to 170 Im/w and will be capable of producing up to 40800 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS

AC85-265V Input Voltage LED Street Light Housing Customized Design High Power Factor 1

YASL-28	IES Type Light Distribution Cure
	DH-T1	DH-T2-L	DH-T2-M	DH-T2-MB	DH-T3-M	DH-T3-MA	DH-T3-MB	DH-T4-M
	DH-T5-M	DY-T2-M	DY-T3-M	GY-T1-M	GY-T2-S	GY-T2-M	GY-T3-M	GY-T2-M01
	GY-T3-M01	GX-T2-S	GX-T2-M	GX-T3-M	GX-T4-M	GX-T4-L	GX-T5	GJ-T2-M
	GJ-T3-M	GJ-T4-M	HY-T2-S	HY-T3-M	HX-T2-S	HX-T2-M	HX-T3-M	HX-T4-M

Support and Services:

Our LED Street Light Housing product technical support and services include:

Assistance with installation and setup
Troubleshooting and problem resolution
Product maintenance and repair services
Warranty support and claim processing
Product training and education
Technical documentation and resources

We are committed to providing our customers with the highest level of support and service to ensure the successful implementation and operation of our LED Street Light Housing product.
