Aluminum Die Casting Roadway Street Lighting 30W 150W 300W

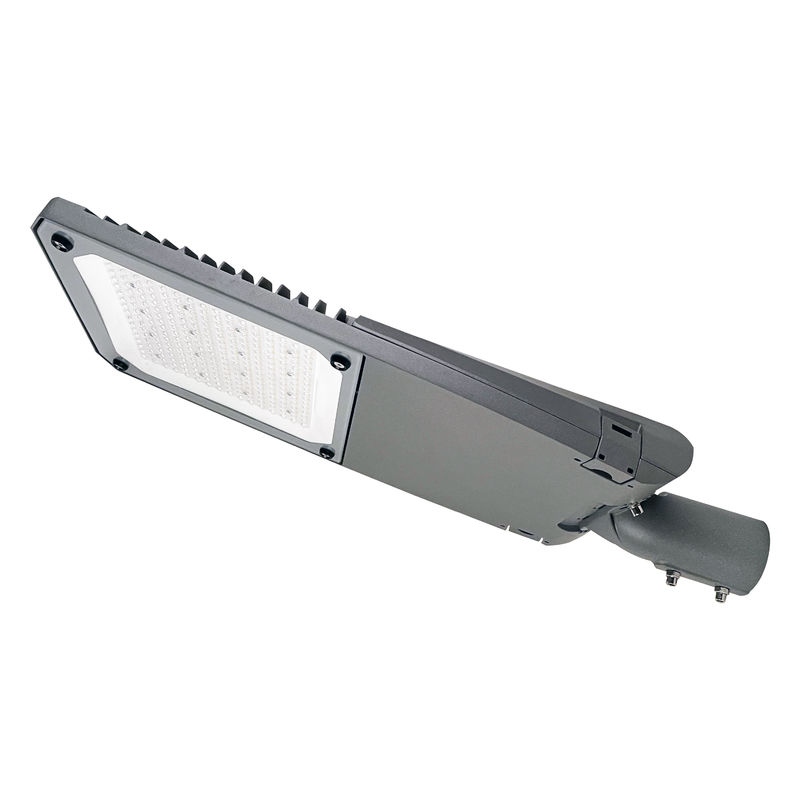

Large Image : Aluminum Die Casting Roadway Street Lighting 30W 150W 300W

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE. EMC, LVD, ENEC, RoHs
Model Number:	YASL-28-120

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$19.3 - US$42.3
Packaging Details:	1PC/CTN
Delivery Time:	35DAYS
Payment Terms:	TT
Supply Ability:	50000PCS/M

Contact Now

Detailed Product Description

Input Voltage:	AC85-265V	Working Temperature:	-40℃~+50℃
Warranty:	5Years	Material:	Aluminum Alloy
CRI:	Ra>70, 80	Lamp Power:	30W-150W-300W
Body Color:	Dark Gray	Color:	Customized Ral. No. Such As Gray, Black, White
Highlight:	Aluminum Die Casting Roadway Street Lighting , Roadway Street Lighting 30W , Roadway Street Lighting 150W

Features:

Product Name: LED Street Light Housing
Color: Customized Ral. No. Such As Gray, Black, White
Lamp Power: 30W-150W-300W
Lifespan: 50,000hrs
Body color: Dark Gray
Material: Aluminum Alloy
Die casting aluminium led street light housing
IP66 Lora Sensor Waterproof Led Lamp
Pole light aluminium body

Technical Parameters:

IP Rating	IP65
CRI	Ra>70, 80
Application	- Highway Roads - Streets - Parking Lots - Residential Areas
Lamp Power	30W-150W-300W
Material	Aluminum Alloy
Lifespan	50,000hrs
Input Voltage	AC85-265V
Body Color	Dark Gray
Power Factor	>0.95
Working Temperature	-40℃~+50℃

Product Specification

Product Code	YASL-28-40	YASL-28-60	YASL-28-90	YASL-28-120	YASL-28-160	YASL-28-240 I
Input Wattage (W)	30～50	50～80	80～120	100～150	150～200	200～320
Number of Lenses (PCS)	4	6	9	12	16	24
Product Size (mm)	492×183×97	541×200×113	602×243×121	652×263×121	722×314×121	823×314×121
Packing Size (mm)	550×220×230	600×240×165	650×280×170	700×300×170	755×335×170	875×335×170
Net Weight (kgs)	2.3	2.8	3.5	4	5.1	5.9
Gross Weight (kgs)	2.6	3.4	4.3	4.9	6	6.9
Quantity of Packing (PCS)	2	1	1	1	1	1
Installation Height (m)	3～8	4～8	6～10	8～12	8～12	8～14
Installation Pipe Diameter	Φ48/60mm	Φ48/60mm	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Adjustable Angle	±15°Adjustable
Materials	Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws
Spray Colors	Double Grey, Sandy Black, Matt Silver
Led Brand	LUMILEDS, OSRAM, CREE (Optional)
Led Specifications	3030, 5050 (Optional)
Optical Effect	130～190lm/w (Optional)
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
Color Rendering Index	Ra>70, Ra>80, Ra>90 (Optional)
Optics	TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional)
Driver Brand	PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
Input Voltage	AC90～305V
Security Level	Classl / Classll / Classl / Class2 (Optional)
Frequency Range	50/60HZ
Power Factor	PF>0.95
Protection	Overcurrent / Short circuit / Over temperature
Dimming Mode	Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional)
Lightning Protection	10KV / 15KV / 20KV (Optional)
Working Conditions Range	-40 to 45°C, 20% to 90% RH
Warranty	5/8 years (Optional)
Protection Level	IP66, GlasslK08/09/10 (Optional), Lamp shell IK08
Certifications	ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66

Aluminum Die Casting Roadway Street Lighting 30W 150W 300W 0

LED Street Light YASL-28

Product Description

This series is a high-performance street lighting available in six sizes. The luminaire is manufactured from high pressure die-casting aluminum.lt shall have a led efficiency up to 170 Im/w and will be capable of producing up to 40800 luminaire lumens at 4000K finished in Grey or black as standard.

IP66 CE ROHS

Aluminum Die Casting Roadway Street Lighting 30W 150W 300W 1

YASL-28	IES Type Light Distribution Cure
	DH-T1	DH-T2-L	DH-T2-M	DH-T2-MB	DH-T3-M	DH-T3-MA	DH-T3-MB	DH-T4-M
	DH-T5-M	DY-T2-M	DY-T3-M	GY-T1-M	GY-T2-S	GY-T2-M	GY-T3-M	GY-T2-M01
	GY-T3-M01	GX-T2-S	GX-T2-M	GX-T3-M	GX-T4-M	GX-T4-L	GX-T5	GJ-T2-M
	GJ-T3-M	GJ-T4-M	HY-T2-S	HY-T3-M	HX-T2-S	HX-T2-M	HX-T3-M	HX-T4-M

Support and Services:

Our LED Street Light Housing product is backed by our comprehensive technical support and services. Our team of experts is available to assist with any questions or issues you may encounter during installation, operation, and maintenance of the product. We offer a range of services including:

Product demonstrations and training
Technical documentation and manuals
Repair and replacement services
Product customization and design support

We are committed to ensuring that our customers receive the highest level of support and service. Please do not hesitate to contact us if you require any assistance with our LED Street Light Housing product.
