Features:
- Product Name: LED Street Light Housing
- Input Voltage: AC85-265V
- Body color: Dark Gray
- Lifespan: 50,000hrs
- Application:
- - Highway Roads
- - Streets
- - Parking Lots
- - Residential Areas
- Beam Angle: 120°
Keywords: solar street lights outdoor waterproof, solar street lights outdoor waterproof, led landscape lighting
Technical Parameters:
| Beam Angle |
120° |
| CRI |
Ra>70, 80 |
| IP Rating |
IP65 |
| Lifespan |
50,000hrs |
| Application |
- Highway Roads
- Streets
- Parking Lots
- Residential Areas |
| Working Temperature |
-40℃~+50℃ |
| Input Voltage |
AC85-265V |
| Body Color |
Dark Gray |
| Lamp Efficiency |
150lm/W |
| Power Factor |
>0.95 |
LED Street Light YASL -25
Installing Ways:Both Horizontal and Vertical available and adjustable angle-15° to 15°
Material:Die casting Aluminum body and tempered glass with lens
Product Specification
| Product Code |
YASL-25-40(M) |
YASL-25-60(M) |
YASL-25-100(M) |
YASL-25-150(M) |
YASL-25-240(M) |
| Input Wattage (W) |
30～50 |
50～80 |
60～120 |
120～200 |
200～320 |
| Number of Lenses (PCS) |
4 |
6 |
9 |
15 |
24 |
| Product Size (mm) |
555×210×143 |
608×235×145 |
645×257×147 |
790×305×147 |
890×361×163 |
| Packing Size (mm) |
600×260×165 |
650×270×185 |
680×290×185 |
820×320×185 |
920×370×190 |
| Net Weight (kgs) |
2.9 |
3.3 |
3.8 |
5.7 |
7.2 |
| Gross Weight (kgs) |
3.4 |
3.8 |
4.0 |
6.0 |
7.5 |
| Quantity of Packing (PCS) |
1 |
1 |
1 |
1 |
1 |
| Installation Height (m) |
3～8 |
4～8 |
6～10 |
8～12 |
12～14 |
| Installation Pipe Diameter |
Φ60mm |
Φ60mm |
Φ60mm |
Φ60mm |
Φ60/76mm |
| Adjustable Angle |
±15°Adjustable |
| Materials |
Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws |
| Spray Colors |
Double Grey, Sandy Black, Matt Silver |
| Led Brand |
LUMILEDS, OSRAM, CREE (Optional) |
| Led Specifications |
3030, 5050 (Optional) |
| Optical Effect |
130～190lm/w (Optional) |
| Color Temperature |
2700K,3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star) |
| Color Rendering Index |
Ra>70, Ra>80, Ra>90 (Optional) |
| Optics |
TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional) |
| Driver Brand |
PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS |
| Input Voltage |
AC90～305V |
| Security Level |
ClassⅠ/ ClassⅡ/ Class1 / Class2 (Optional) |
| Frequency Range |
50/60HZ |
| Power Factor |
PF>0.95 |
| Protection |
Overcurrent / Short circuit / Over temperature |
| Dimming Mode |
Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional) |
| Lightning Protection |
10KV / 15KV / 20KV (Optional) |
| Working Conditions Range |
-40 to 45℃, 20% to 90% RH |
| Warranty |
5/8 years (Optional) |
| Protection Level |
IP66, GlasslK08/09/10 (Optional), Lamp shell IK08 |
| Certifications |
ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66 |

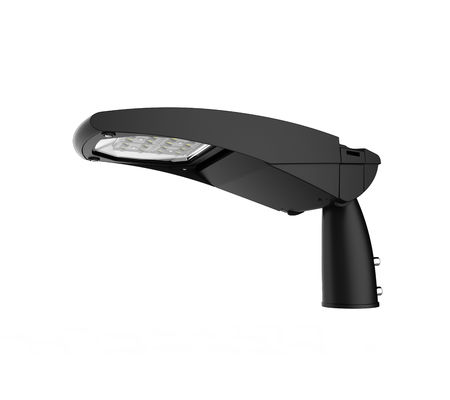

LED Street Light YASL-25
Product Description
YASL-25 is an updated version from YASL-13 with tool free clip design and more solid bracket and installing system. Also separate led and driver cavity make sure the fixture has a better waterproof performance.
IP66 CE ROHS
Light Distribution (For details, please refer to the summary table of light distribution curves on page 78,79,80.)
| YASL-25 |
IES Type Light Distribution Cure |
| DH-T1 |
DH-T2-L |
DH-T2-M |
DH-T2-MB |
DH-T3-M |
DH-T3-MA |
DH-T3-MB |
DH-T4-M |
| DH-T5-M |
DY-T2-M |
DY-T3-M |
GY-T1-M |
GY-T2-S |
GY-T2-M |
GY-T3-M |
GY-T2-M01 |
| GY-T3-M01 |
GX-T2-S |
GX-T2-M |
GX-T3-M |
GX-T4-M |
GX-T4-L |
GX-T5 |
GJ-T2-M |
| GJ-T3-M |
GJ-T4-M |
HY-T2-S |
HY-T3-M |
HX-T2-S |
HX-T2-M |
HX-T3-M |
HX-T4-M |
Support and Services:
The LED Street Light Housing product comes with comprehensive technical support and services to ensure that customers receive the best possible performance from their purchase. Our team of experts is available to assist with any inquiries related to installation, maintenance, and troubleshooting. We also provide warranty and repair services to ensure that any issues are resolved quickly and efficiently. Additionally, we offer customization services to meet the specific needs of our customers, including design modifications and branding options. Our goal is to provide exceptional support and service throughout the entire lifespan of the LED Street Light Housing product.
