Product Description:
One of the standout features of this LED Street Light Housing is its beam angle of 120°. This wide-angle design helps to ensure maximum coverage and efficient illumination, making it a great choice for use in a variety of outdoor lighting applications.
Another key advantage of this product is its customizable size. This allows you to choose the housing size that best matches your specific needs, ensuring a perfect fit for your LED light source.
With a power factor of >0.95, this LED Street Light Housing is highly efficient, ensuring that your light source will operate at peak performance while consuming minimal energy. This not only helps to reduce your energy costs but also helps to reduce your carbon footprint.
The CRI (Color Rendering Index) of this LED Street Light Housing is Ra>70, 80, which means that it delivers high-quality color rendering, ensuring that your outdoor spaces are well-lit and visually appealing.
Finally, this LED Street Light Housing is designed with an IP65 rating, making it highly resistant to water and dust. This makes it ideal for use in outdoor environments, where it may be exposed to rain, snow, and other harsh weather conditions. Additionally, this product is designed with an IP66 Lora Sensor Waterproof Led Lamp, which further enhances its durability and resistance to the elements.
In summary, the LED Street Light Housing is an excellent choice for roadway and street lighting manufacturers who are looking for a high-quality, reliable, and efficient lighting solution. With its wide beam angle, customizable size, high power factor, excellent color rendering, and IP65 rating, this product is sure to meet all of your outdoor lighting needs.
Features:
- Product Name: LED Street Light Housing
- Application:
- Highway Roads
- Streets
- Parking Lots
- Residential Areas
- Lamp Efficiency: 150lm/W
- Size: Customized
- Beam Angle: 120°
- Lifespan: 50,000hrs
- Material: Die casting aluminium led street light housing
- Additional Feature: Solar street lights outdoor waterproof
- Keyword: Street led light shell
Technical Parameters:
| Input Voltage |
AC85-265V |
| CRI |
Ra>70, 80 |
| Lifespan |
50,000hrs |
| Size |
Customized |
| Lamp Power |
30W-150W-300W |
| Color |
Customized Ral. No. Such As Gray, Black, White |
| IP Rating |
IP65 |
| Material |
Die Casting Aluminum |
| Warranty |
5Years |
| Power Factor |
>0.95 |
LED Street Light YASL -25
Installing Ways:Both Horizontal and Vertical available and adjustable angle-15° to 15°
Material:Die casting Aluminum body and tempered glass with lens
Product Specification
| Product Code |
YASL-25-40(M) |
YASL-25-60(M) |
YASL-25-100(M) |
YASL-25-150(M) |
YASL-25-240(M) |
| Input Wattage (W) |
30～50 |
50～80 |
60～120 |
120～200 |
200～320 |
| Number of Lenses (PCS) |
4 |
6 |
9 |
15 |
24 |
| Product Size (mm) |
555×210×143 |
608×235×145 |
645×257×147 |
790×305×147 |
890×361×163 |
| Packing Size (mm) |
600×260×165 |
650×270×185 |
680×290×185 |
820×320×185 |
920×370×190 |
| Net Weight (kgs) |
2.9 |
3.3 |
3.8 |
5.7 |
7.2 |
| Gross Weight (kgs) |
3.4 |
3.8 |
4.0 |
6.0 |
7.5 |
| Quantity of Packing (PCS) |
1 |
1 |
1 |
1 |
1 |
| Installation Height (m) |
3～8 |
4～8 |
6～10 |
8～12 |
12～14 |
| Installation Pipe Diameter |
Φ60mm |
Φ60mm |
Φ60mm |
Φ60mm |
Φ60/76mm |
| Adjustable Angle |
±15°Adjustable |
| Materials |
Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws |
| Spray Colors |
Double Grey, Sandy Black, Matt Silver |
| Led Brand |
LUMILEDS, OSRAM, CREE (Optional) |
| Led Specifications |
3030, 5050 (Optional) |
| Optical Effect |
130～190lm/w (Optional) |
| Color Temperature |
2700K,3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star) |
| Color Rendering Index |
Ra>70, Ra>80, Ra>90 (Optional) |
| Optics |
TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional) |
| Driver Brand |
PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS |
| Input Voltage |
AC90～305V |
| Security Level |
ClassⅠ/ ClassⅡ/ Class1 / Class2 (Optional) |
| Frequency Range |
50/60HZ |
| Power Factor |
PF>0.95 |
| Protection |
Overcurrent / Short circuit / Over temperature |
| Dimming Mode |
Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional) |
| Lightning Protection |
10KV / 15KV / 20KV (Optional) |
| Working Conditions Range |
-40 to 45℃, 20% to 90% RH |
| Warranty |
5/8 years (Optional) |
| Protection Level |
IP66, GlasslK08/09/10 (Optional), Lamp shell IK08 |
| Certifications |
ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66 |

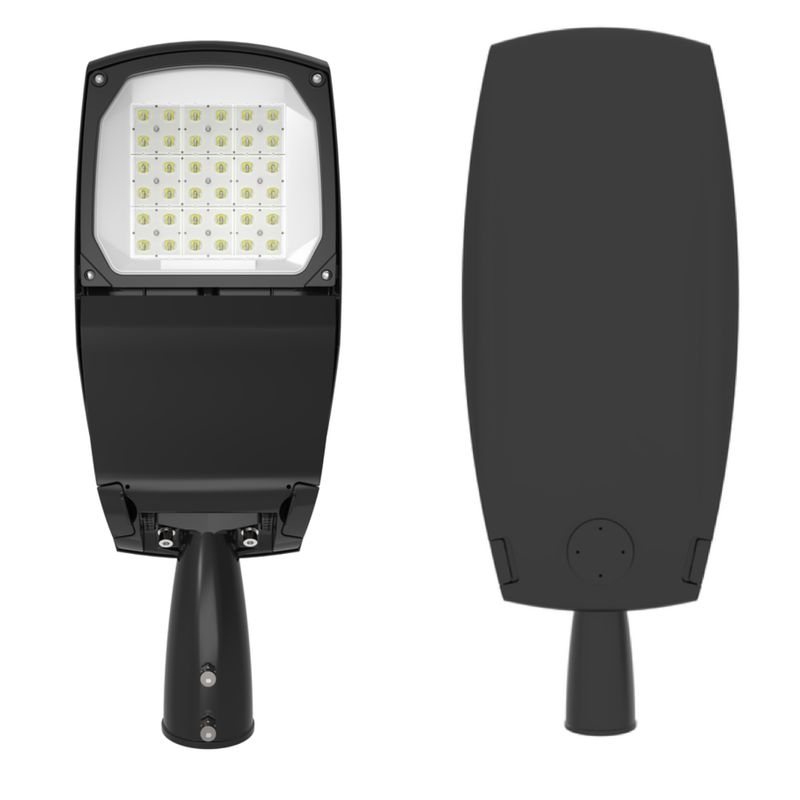

LED Street Light YASL-25
Product Description
YASL-25 is an updated version from YASL-13 with tool free clip design and more solid bracket and installing system. Also separate led and driver cavity make sure the fixture has a better waterproof performance.
IP66 CE ROHS
Light Distribution (For details, please refer to the summary table of light distribution curves on page 78,79,80.)
| YASL-25 |
IES Type Light Distribution Cure |
| DH-T1 |
DH-T2-L |
DH-T2-M |
DH-T2-MB |
DH-T3-M |
DH-T3-MA |
DH-T3-MB |
DH-T4-M |
| DH-T5-M |
DY-T2-M |
DY-T3-M |
GY-T1-M |
GY-T2-S |
GY-T2-M |
GY-T3-M |
GY-T2-M01 |
| GY-T3-M01 |
GX-T2-S |
GX-T2-M |
GX-T3-M |
GX-T4-M |
GX-T4-L |
GX-T5 |
GJ-T2-M |
| GJ-T3-M |
GJ-T4-M |
HY-T2-S |
HY-T3-M |
HX-T2-S |
HX-T2-M |
HX-T3-M |
HX-T4-M |
Support and Services:
The LED Street Light Housing product comes with a comprehensive set of technical support and services to ensure optimal performance and customer satisfaction.
Our technical support team is available to answer any questions or issues that may arise during installation or use of the product. We provide detailed product manuals, installation guides, and troubleshooting guides to assist you every step of the way.
In addition, we offer repair and maintenance services to ensure that your LED Street Light Housing remains in top condition. Our team of trained technicians can perform routine maintenance and repairs, as well as provide replacement parts as needed.
We also offer customization services to meet the specific needs of your project. Our team can work with you to design a customized LED Street Light Housing that meets your unique requirements.
Overall, our goal is to provide the highest level of technical support and services to ensure that you have a positive experience with our LED Street Light Housing product.
