Product Description:
The housing is made from high-quality die-casting aluminum material, which is known for its excellent heat dissipation properties and robust construction. This material ensures that the housing is strong and durable, making it ideal for use in harsh outdoor environments. The housing is also designed to withstand extreme weather conditions, ensuring that it can provide reliable lighting performance year-round.
The LED Street Light Housing is designed to provide a beam angle of 120°, making it ideal for lighting up large areas with ease. The beam angle ensures that the light is evenly distributed across the area, providing optimal lighting performance. This feature makes it perfect for use in highway roads, streets, parking lots, and residential areas where high-quality lighting is required.
The LED Street Light Housing has an input voltage of AC85-265V, making it compatible with most power supplies. This feature ensures that the housing can be easily installed and used in a wide range of outdoor lighting applications.
The LED Street Light Housing comes with a 5-year warranty, which provides excellent value for money. This warranty ensures that you can use the housing with confidence, knowing that it is built to last and will provide reliable performance for years to come.
In conclusion, if you are looking for a high-quality LED Street Light Housing that offers superior performance and durability, then the 50w LED Street Light Housing is an excellent choice. With its superior construction, beam angle, and compatibility with most power supplies, this housing is perfect for use in a wide range of outdoor lighting applications. So, if you are looking for a reliable and long-lasting LED Street Light Housing, then look no further than this product from Roadway and Street Lighting Manufacturers.
Features:
- Product Name: LED Street Light Housing
- Beam Angle: 120°
- Size: Customized
- Lifespan: 50,000hrs
- Working Temperature: -40℃~+50℃
- Material: Die Casting Aluminum
Our LED Street Light Housing is perfect for Roadway and Street Lighting Manufacturers looking for durable and reliable led street lights. With a beam angle of 120° and a lifespan of 50,000hrs, our customizable housing is made of die casting aluminum, making it perfect for led landscape lighting as well. Additionally, it can withstand extreme temperatures ranging from -40℃ to +50℃.
Technical Parameters:
| Product Attribute |
Value |
| Product Name: |
Die Casting Aluminium LED Street Light Housing |
| Lifespan: |
50,000hrs |
| CRI: |
Ra>70, 80 |
| IP Rating: |
IP65 |
| Lamp Power: |
30W-150W-300W |
| Working Temperature: |
-40℃~+50℃ |
| Body Color: |
Dark Gray |
| Lamp Efficiency: |
150lm/W |
| Color: |
Customized Ral. No. Such As Gray, Black, White |
| Size: |
Customized |
| Power Factor: |
>0.95 |
Product Details

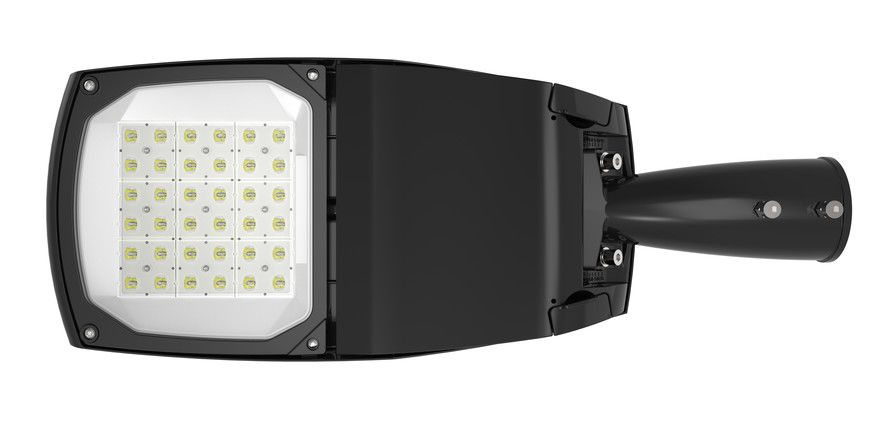

LED Street Light YASL -25
Installing Ways:Both Horizontal and Vertical available and adjustable angle-15° to 15°
Material:Die casting Aluminum body and tempered glass with lens
Product Specification
| Product Code |
YASL-25-40(M) |
YASL-25-60(M) |
YASL-25-100(M) |
YASL-25-150(M) |
YASL-25-240(M) |
| Input Wattage (W) |
30～50 |
50～80 |
60～120 |
120～200 |
200～320 |
| Number of Lenses (PCS) |
4 |
6 |
9 |
15 |
24 |
| Product Size (mm) |
555×210×143 |
608×235×145 |
645×257×147 |
790×305×147 |
890×361×163 |
| Packing Size (mm) |
600×260×165 |
650×270×185 |
680×290×185 |
820×320×185 |
920×370×190 |
| Net Weight (kgs) |
2.9 |
3.3 |
3.8 |
5.7 |
7.2 |
| Gross Weight (kgs) |
3.4 |
3.8 |
4.0 |
6.0 |
7.5 |
| Quantity of Packing (PCS) |
1 |
1 |
1 |
1 |
1 |
| Installation Height (m) |
3～8 |
4～8 |
6～10 |
8～12 |
12～14 |
| Installation Pipe Diameter |
Φ60mm |
Φ60mm |
Φ60mm |
Φ60mm |
Φ60/76mm |
| Adjustable Angle |
±15°Adjustable |
| Materials |
Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws |
| Spray Colors |
Double Grey, Sandy Black, Matt Silver |
| Led Brand |
LUMILEDS, OSRAM, CREE (Optional) |
| Led Specifications |
3030, 5050 (Optional) |
| Optical Effect |
130～190lm/w (Optional) |
| Color Temperature |
2700K,3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star) |
| Color Rendering Index |
Ra>70, Ra>80, Ra>90 (Optional) |
| Optics |
TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional) |
| Driver Brand |
PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS |
| Input Voltage |
AC90～305V |
| Security Level |
ClassⅠ/ ClassⅡ/ Class1 / Class2 (Optional) |
| Frequency Range |
50/60HZ |
| Power Factor |
PF>0.95 |
| Protection |
Overcurrent / Short circuit / Over temperature |
| Dimming Mode |
Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional) |
| Lightning Protection |
10KV / 15KV / 20KV (Optional) |
| Working Conditions Range |
-40 to 45℃, 20% to 90% RH |
| Warranty |
5/8 years (Optional) |
| Protection Level |
IP66, GlasslK08/09/10 (Optional), Lamp shell IK08 |
| Certifications |
ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66 |
LED Street Light YASL-25
Product Description
YASL-25 is an updated version from YASL-13 with tool free clip design and more solid bracket and installing system. Also separate led and driver cavity make sure the fixture has a better waterproof performance.
IP66 CE ROHS
Light Distribution (For details, please refer to the summary table of light distribution curves on page 78,79,80.)
| YASL-25 |
IES Type Light Distribution Cure |
| DH-T1 |
DH-T2-L |
DH-T2-M |
DH-T2-MB |
DH-T3-M |
DH-T3-MA |
DH-T3-MB |
DH-T4-M |
| DH-T5-M |
DY-T2-M |
DY-T3-M |
GY-T1-M |
GY-T2-S |
GY-T2-M |
GY-T3-M |
GY-T2-M01 |
| GY-T3-M01 |
GX-T2-S |
GX-T2-M |
GX-T3-M |
GX-T4-M |
GX-T4-L |
GX-T5 |
GJ-T2-M |
| GJ-T3-M |
GJ-T4-M |
HY-T2-S |
HY-T3-M |
HX-T2-S |
HX-T2-M |
HX-T3-M |
HX-T4-M |
Customization:
- Brand Name: Die-casting Man
- Model Number: YASL-09--30
- Place of Origin: Ningbo, China
- Certification: CE. EMC, LVD, ENEC, RoHs
- Minimum Order Quantity: 1PC
- Price: US$19.3 - US$42.3
- Packaging Details: 1PC/CTN
- Delivery Time: 35DAYS
- Payment Terms: TT
- Supply Ability: 50000PCS/M
- IP Rating: IP65, IP66 Lora Sensor Waterproof Led Lamp
- Body Color: Dark Gray
- Color: Customized Ral. No. Such As Gray, Black, White
- Power Factor: >0.95
- Lifespan: 50,000hrs
Our LED Street Light Housing product is customizable to meet your needs. We can provide:
- Solar street lights outdoor waterproof
- Customized color options
- Advanced features like IP66 Lora Sensor Waterproof Led Lamp
Support and Services:
Our LED street light housing product comes with comprehensive technical support and services to ensure that you have a smooth and hassle-free experience with our product. Our team of experts is always available to answer any questions or concerns you may have regarding our product's installation, operation, maintenance, or troubleshooting. We also offer product training and documentation to help you get the most out of our LED street light housing. Our user manuals and technical guides provide detailed information on product specifications, wiring diagrams, and safety precautions. In addition, we offer repair and replacement services for any defective parts or components. Our customer service team is ready to assist you with any warranty claims or product returns. At our company, we take pride in delivering high-quality products and exceptional customer service. Contact us today to learn more about our LED street light housing technical support and services.
