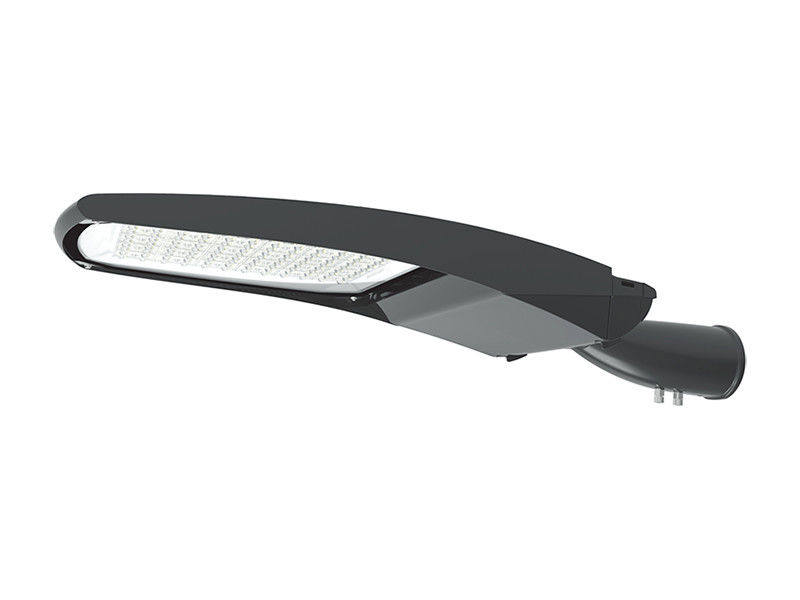

LED Street Light Housing CRI 80 High Lamp Efficiency 150lm/W

Large Image : LED Street Light Housing CRI 80 High Lamp Efficiency 150lm/W

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE. EMC, LVD, ENEC, RoHs
Model Number:	YASL-09--30

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	US$19.3 - US$42.3
Packaging Details:	1PC/CTN
Delivery Time:	35DAYS
Payment Terms:	TT
Supply Ability:	50000PCS/M

Contact Now

Detailed Product Description

Material:	Die Casting Aluminum	Body Color:	Dark Gray
Color:	Customized Ral. No. Such As Gray, Black, White	CRI:	Ra>70, 80
Lamp Power:	30W-150W-300W	Application:	- Highway Roads - Streets - Parking Lots - Residential Areas
Warranty:	5Years	Beam Angle:	120°
Highlight:	CRI 80 LED Street Light Housing , 150lm/W LED Street Light Housing

Features:

Product Name: LED Street Light Housing
Warranty: 5 Years
Size: Customized
Beam Angle: 120°
Power Factor: >0.95
Material: Die Casting Aluminum
Designed for street light housing
Ideal for LED landscape lighting
Pole light aluminium body for durability

Technical Parameters:

Product Attribute	Value
Product Name	LED Street Light Housing
Size	Customized
Material	Die Casting Aluminum
IP Rating	IP65
Beam Angle	120°
CRI	Ra>70, 80
Warranty	5 Years
Working Temperature	-40℃~+50℃
Color	Customized Ral. No. Such As Gray, Black, White
Body Color	Dark Gray
Lamp Power	30W-150W-300W

Product Details

LED Street Light YASL -25

Installing Ways:Both Horizontal and Vertical available and adjustable angle-15° to 15°

Material:Die casting Aluminum body and tempered glass with lens

Product Specification

Product Code	YASL-25-40(M)	YASL-25-60(M)	YASL-25-100(M)	YASL-25-150(M)	YASL-25-240(M)
Input Wattage (W)	30～50	50～80	60～120	120～200	200～320
Number of Lenses (PCS)	4	6	9	15	24
Product Size (mm)	555×210×143	608×235×145	645×257×147	790×305×147	890×361×163
Packing Size (mm)	600×260×165	650×270×185	680×290×185	820×320×185	920×370×190
Net Weight (kgs)	2.9	3.3	3.8	5.7	7.2
Gross Weight (kgs)	3.4	3.8	4.0	6.0	7.5
Quantity of Packing (PCS)	1	1	1	1	1
Installation Height (m)	3～8	4～8	6～10	8～12	12～14
Installation Pipe Diameter	Φ60mm	Φ60mm	Φ60mm	Φ60mm	Φ60/76mm
Adjustable Angle	±15°Adjustable
Materials	Housing:Aluminium, Cover:Toughened Glass, Screws:304 stainless screws
Spray Colors	Double Grey, Sandy Black, Matt Silver
Led Brand	LUMILEDS, OSRAM, CREE (Optional)
Led Specifications	3030, 5050 (Optional)
Optical Effect	130～190lm/w (Optional)
Color Temperature	2700K,3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional) (Reference: Energy Star)
Color Rendering Index	Ra>70, Ra>80, Ra>90 (Optional)
Optics	TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional)
Driver Brand	PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
Input Voltage	AC90～305V
Security Level	ClassⅠ/ ClassⅡ/ Class1 / Class2 (Optional)
Frequency Range	50/60HZ
Power Factor	PF>0.95
Protection	Overcurrent / Short circuit / Over temperature
Dimming Mode	Time control / 0-10V / Opticalcontrol / Microwaves / DALI (Optional)
Lightning Protection	10KV / 15KV / 20KV (Optional)
Working Conditions Range	-40 to 45℃, 20% to 90% RH
Warranty	5/8 years (Optional)
Protection Level	IP66, GlasslK08/09/10 (Optional), Lamp shell IK08
Certifications	ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66

LED Street Light YASL-25

Product Description

YASL-25 is an updated version from YASL-13 with tool free clip design and more solid bracket and installing system. Also separate led and driver cavity make sure the fixture has a better waterproof performance.

IP66 CE ROHS

LED Street Light Housing CRI 80 High Lamp Efficiency 150lm/W 0

Light Distribution (For details, please refer to the summary table of light distribution curves on page 78,79,80.)

YASL-25	IES Type Light Distribution Cure
	DH-T1	DH-T2-L	DH-T2-M	DH-T2-MB	DH-T3-M	DH-T3-MA	DH-T3-MB	DH-T4-M
	DH-T5-M	DY-T2-M	DY-T3-M	GY-T1-M	GY-T2-S	GY-T2-M	GY-T3-M	GY-T2-M01
	GY-T3-M01	GX-T2-S	GX-T2-M	GX-T3-M	GX-T4-M	GX-T4-L	GX-T5	GJ-T2-M
	GJ-T3-M	GJ-T4-M	HY-T2-S	HY-T3-M	HX-T2-S	HX-T2-M	HX-T3-M	HX-T4-M

Support and Services:

Our LED Street Light Housing product comes with a comprehensive technical support and services package to ensure that your investment is protected. Our support services include:

Installation support to guide you through the setup process
Product training to help you understand the features and functionalities of the product
Repair and maintenance services to keep your product in good condition
Warranty coverage for added peace of mind

Our team of experienced technicians is available to provide prompt and reliable support whenever you need it. Contact us for more information on our technical support and services.
