High Mast Lamp IK08 Led Stadium Flood Light

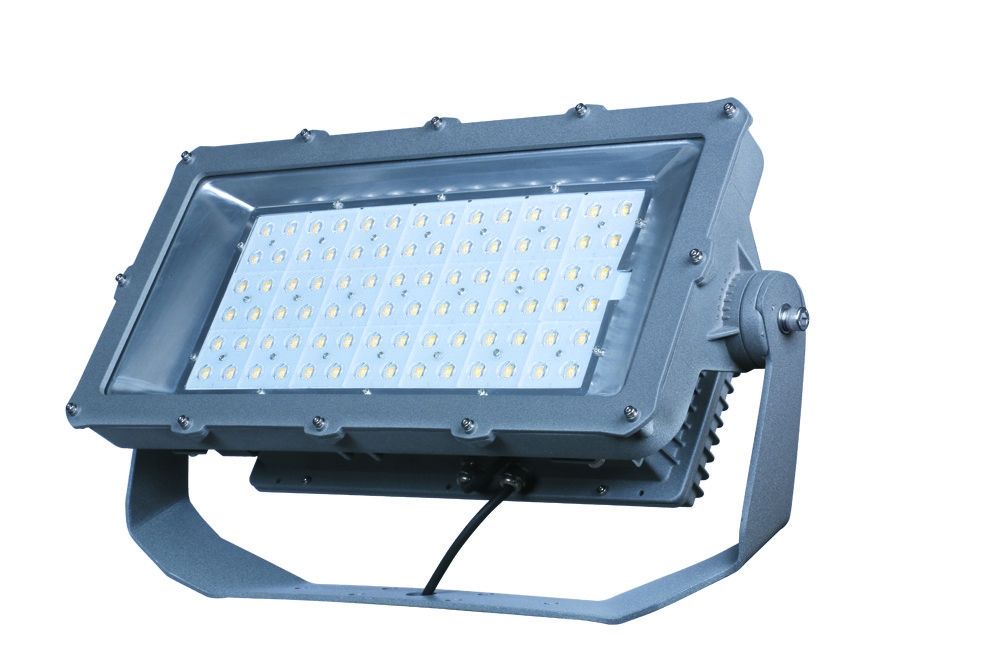

Large Image : High Mast Lamp IK08 Led Stadium Flood Light

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Die-casting Man
Certification:	CE. EMC, LVD, ENEC, RoHs
Model Number:	YAHB-01-200

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	negotiated
Packaging Details:	1PC/CTN
Delivery Time:	30 DAYS
Payment Terms:	TT, L/C
Supply Ability:	50000PCS/M

Contact Now

Detailed Product Description

Chip Brand:	Phlips Lumileds Osram Cree	Key Material:	Aluminum +Tempered Glass
Warranty:	5 Years	Waterproof Grade:	IP66
Ip Grade:	0.95	Housing Material:	Aluminium
Power Factor:	0.95	Production Factory:	Ninghai Die Casting Man Energy Co.,Ltd
Highlight:	IK08 Led Stadium Flood Light , High Mast Lamp IK08

Product Details

This series is a three-volume high-performance mast.
The light fixture is made of high-pressure cast aluminum.It must have a driving efficiency of up to 120 lm / w and will be able to produce up to 75,000 lumens of 4000K luminance modules finished in gray or black according to their standards.

Product Code	YAHP-01-200	YAHP-01-400	YAHP-01-600
Wattage input	200W	400W	600W
Color temperature	3000-6500K	3000-6500K	3000-6500K
Angle of light	30 ° / 60 ° / 90 °	30 ° / 60 ° / 90 °	30 ° / 60 ° / 90 °
Luminous flux	69000-75000lm	69000-75000lm	69000-75000lm
Input voltage	AC90-305V	AC90-305V	AC90-305V
Frequency band	50 / 60HZ	50 / 60HZ	50 / 60HZ
Power factor	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering	Ra≥70	Ra≥70	Ra≥70
Working condition temperature	-40-50 °C	-40-50 °C	-40-50 °C
Moisture of working conditions	20٪ -90٪ RH	20٪ -90٪ RH	20٪ -90٪ RH
LED lifespan	50000H	50000H	50000H
Degree of protection	IP66	IP66	IP66
Installation height	10-15M	15-20M	20-25m
Net weight	12.5KG	24.0Kg	36.0Kg
Total weight	13.0Kg	24.8Kg	37.0Kg
Packing size (mm)	350 × 600 × 240	620 × 660 × 240	950 × 660 × 240

High Mast Lamp IK08 Led Stadium Flood Light 0
