Outdoor Led Garden Lights 90W Power 11700lm Lumen IP66 Rating Various CCT Options YAUB-09B-9

All Products
LED Street Light Fixtures (340)
LED Street Light Housing (359)
LED High Bay Lights (62)
Outdoor LED Street Lights (391)
Urban LED Lighting (46)
Die Casting Housing (30)
Aluminum Led Street Light (202)
High Power LED Street Light (48)
LED Street Light Module (23)
Waterproof Led Street Light (15)
COB Led Street Light (32)
Outdoor Led Garden Lights (76)
Led Stadium Flood Light (75)
Outdoor Area Lighting (73)
Road Lighting Fixtures (46)
UFO High Bay Lights (48)
Best Products
120 Degree Square 80w Urban Led Lighting

120 Degree Square 80w Urban Led Lighting

China NingBo Die-Casting Man Technology Co.,ltd. certification
China NingBo Die-Casting Man Technology Co.,ltd. certification
Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

Outdoor Led Garden Lights 90W Power 11700lm Lumen IP66 Rating Various CCT Options YAUB-09B-9

Outdoor Led Garden Lights 90W Power 11700lm Lumen IP66 Rating Various CCT Options YAUB-09B-9
Outdoor Led Garden Lights 90W Power 11700lm Lumen IP66 Rating Various CCT Options YAUB-09B-9
video play

Large Image :  Outdoor Led Garden Lights 90W Power 11700lm Lumen IP66 Rating Various CCT Options YAUB-09B-9

Product Details:
Place of Origin: CHINA
Brand Name: Die-casting Man
Certification: CE, RoHs, ENEC, CB
Model Number: YAUB-09-90B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/bag/foam/carton, pallet optional
Delivery Time: 7-10 days based on order QTY
Payment Terms: T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Material: Die Casting Aluminium Power: 30-100W
Input Voltage: 220-240Vac Optical Effect: 130~170 Lm/w(Optional)
Protectin Grade: IP66 Protection Level: IK08
Power Factor: PF≥0.95 Color Rendering Index: Ra≥70
Frequency Range: 50/60Hz Working Conditions Range: -40～45℃ 20%～90%RH
Size: 465x465x197 Mm
Highlight:

90W Outdoor Led Garden Lights

,

IP66 Outdoor Led Garden Lights

,

11700lm Outdoor Led Garden Lights

Products Description

Product Datasheet
Item No. YAUB-09B-90
Power 100W
Lumen Efficiency 130lm/w
Lumen 11700lm
Product Size (mm) 465X465X197
Electrical Data
Working Voltage AC100-265V 丨 50/60Hz
LED: Lumileds / Epistar / SANAN
CCT 3000K, 4000K, 5000K ,6000K
CRI Ra>70 (standard)/ Ra>80
Driver local
THD <15%
Power Factor(PF) PF>0.9
IP Rating IP66
IK Rating 1K09
Holder 50mm/B60mm (standard)
Body Material Hign pressure die-cast aluminum
Housing Calor Dark Grey/Black/Light Grey (availabel on request)
Cover Material UV-resistant Polycarbonate
Working Environment -20℃ ~+50℃ , 10%~90%RH
Lifespan L70 at 25℃ > 50,000hrs
Mounting Type Side entry or Vertical pole mounted ±15°
Dimmable 1-10V Dimming /Timer Dimming
Protecdion Class Class I (standard) / Class Ⅱ
Standards CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance

Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%







Outdoor Led Garden Lights 90W Power 11700lm Lumen IP66 Rating Various CCT Options YAUB-09B-9 0

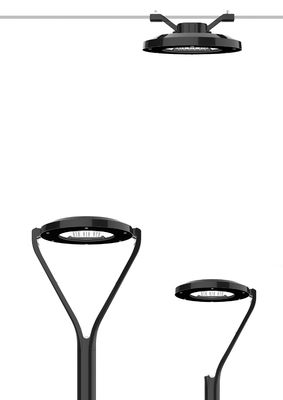

Product Photo



Outdoor Led Garden Lights 90W Power 11700lm Lumen IP66 Rating Various CCT Options YAUB-09B-9 1

Outdoor Led Garden Lights 90W Power 11700lm Lumen IP66 Rating Various CCT Options YAUB-09B-9 2
