IP66 30w 40w 50w 60w 70w 80w 100w LED Garden Light

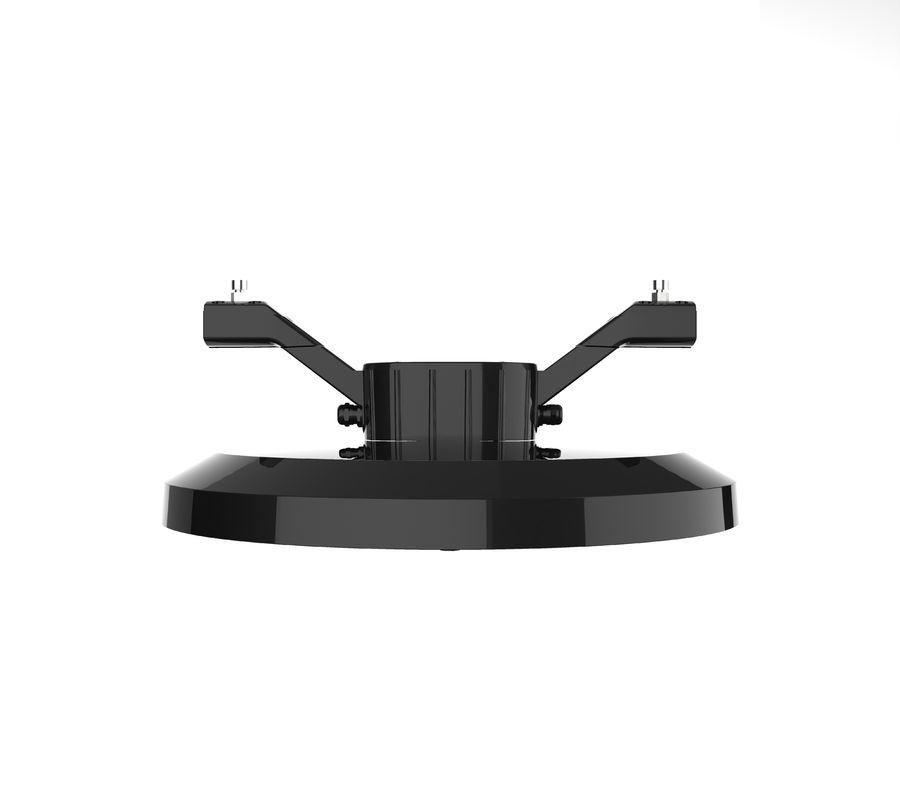

Large Image : IP66 30w 40w 50w 60w 70w 80w 100w LED Garden Light

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YAUB-09-90B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Material:	Die Casting Aluminium	Power:	30-100W
Input Voltage:	220-240Vac	Optical Effect:	130~170 Lm/w(Optional)
Protectin Grade:	IP66	Protection Level:	IK08
Power Factor:	PF≥0.95	Color Rendering Index:	Ra≥70
Frequency Range:	50/60Hz	Working Conditions Range:	-40～45℃ 20%～90%RH
Size:	465x465x197 Mm
Highlight:	IP66 70w LED Garden Light , IP66 60w LED Garden Light , IP66 100w LED Garden Light

Products Description

Product Datasheet
Item No.	YAUB-09B-90
Power	90W
Lumen Efficiency	130lm/w
Lumen	11700lm
Product Size (mm)	465X465X197
Electrical Data
Working Voltage	AC100-265V 丨 50/60Hz
LED:	Lumileds / Epistar / SANAN
CCT	3000K, 4000K, 5000K ,6000K
CRI	Ra>70 (standard)/ Ra>80
Driver	local
THD	<15%
Power Factor(PF)	PF>0.9
IP Rating	IP66
IK Rating	1K09
Holder	50mm/B60mm (standard)
Body Material	Hign pressure die-cast aluminum
Housing Calor	Dark Grey/Black/Light Grey (availabel on request)
Cover Material	UV-resistant Polycarbonate
Working Environment	-20℃ ~+50℃ , 10%~90%RH
Lifespan L70 at 25℃	> 50,000hrs
Mounting Type	Side entry or Vertical pole mounted ±15°
Dimmable	1-10V Dimming /Timer Dimming
Protecdion Class	Class I (standard) / Class Ⅱ
Standards	CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request	NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance	Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%

IP66 30w 40w 50w 60w 70w 80w 100w LED Garden Light 0

IP66 30w 40w 50w 60w 70w 80w 100w LED Garden Light 1

IP66 30w 40w 50w 60w 70w 80w 100w LED Garden Light 2
