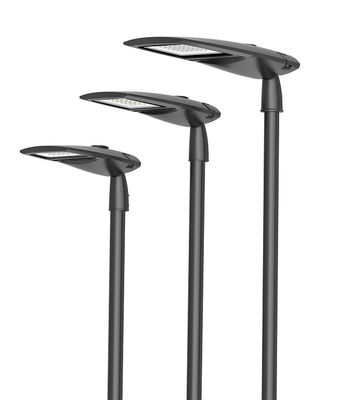

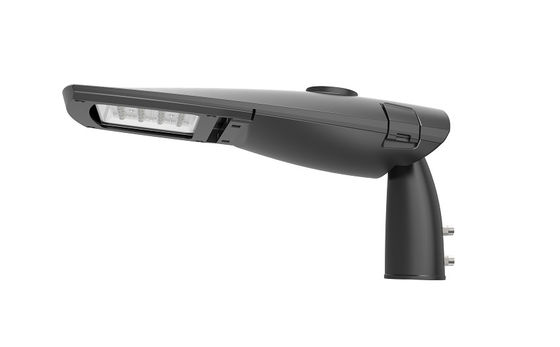

150 Lm/w Efficiency Aluminum Led Street Light YASL-14 Series Available In 3 Sizes 18000 Lumens 4000K Grey Or Black Finish YASL-14-40/80/120

Large Image : 150 Lm/w Efficiency Aluminum Led Street Light YASL-14 Series Available In 3 Sizes 18000 Lumens 4000K Grey Or Black Finish YASL-14-40/80/120

Product Details:

Place of Origin:	CHINA
Brand Name:	Die-casting Man
Certification:	CE, RoHs, ENEC, CB
Model Number:	YASL-14-120

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	1pc/bag/foam/carton, pallet optional
Delivery Time:	7-10 days based on order QTY
Payment Terms:	T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Power:	40W	Color Temperature:	2700-6500K
Frequency Range:	50/60Hz	Luminous Flux:	7800-9000lm
Power Factor:	PF≥0.95	Humidity Of Working Condition:	20%～90%RH
Color Rendering Index:	Ra≥70	LED Lifetime:	50000 H
Protection Level:	IK08/09/10	Installation Pipe Diameter:	φ45/60mm
Color:	Grey/Black/Sliver	Material:	Die Casting Aluminium
Installation Height:	4-6m	Gross Weight:	5.0 Kgs
Net Weight:	4.6 Kgs	Packing Size（m M）:	965420195
Highlight:	4000K Aluminum Led Street Light , 3 Sizes Aluminum Led Street Light , 150 lm/w aluminum led street light



Production Description:

- SL-14 series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum.
- It shall have a led efficiency up to 120 lm/w and will be capable of producing up to 18000 luminaire lumens at 4000K finished in Grey or black as standard.


Technical Datas:

Product Code	YASL-14-40	YASL-14-80	YASL-14-120
Input Wattage	40W	80W	150W
Color Temperature	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	4400-5000lm	9200-10400lm	16500-18750lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
color rendering index	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66
Installation Pipe Diameter	⌀60mm	⌀60mm	⌀70mm
Installation Height	4-7m	6-10m	8-12m
Net Weight	4.6kg	6.0kg	9.8kg
Gross Weight	5.0kg	6.5kg	10.6kg
Packing Size(mm)	660×315×185	770×315×185	800×290×400


Drawing picture:
