3000-6500K UFO High Bay Lights With AC90-305V Input Voltage For Versatile In Industrial Areas

Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business! Thanks!

—— Ian Nicholas

Good quality products, low price and high quality services. Worthy trust and recommending business partner.

—— Michal Jussize

Hi Jenny, I have received the cargo. I want to say that we are very satisfied with your product and exelent service. I want also make a new order.

—— Ryan Retherford

I have been cooperating with Die casting man for 3 years. they supplied me thousands pieces of street light housing, I am glad to work with them because of the reliable quality and competitive price. A good experience to me.

—— Diana

I'm Online Chat Now

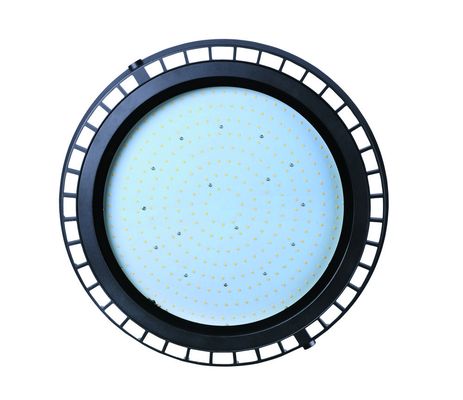

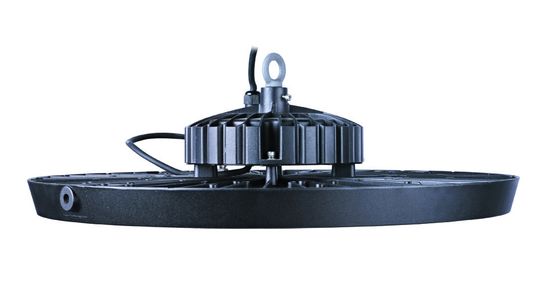

3000-6500K UFO High Bay Lights With AC90-305V Input Voltage For Versatile In Industrial Areas

3000-6500K UFO High Bay Lights With AC90-305V Input Voltage For Versatile In Industrial Areas
3000-6500K UFO High Bay Lights With AC90-305V Input Voltage For Versatile In Industrial Areas
video play

Large Image :  3000-6500K UFO High Bay Lights With AC90-305V Input Voltage For Versatile In Industrial Areas

Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DIE-CASTING MAN
Certification: CE,ROHS
Model Number: YAHB-04-100
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: 1pc/foam/ctn
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Item: YAHB-04-100 Material: Die-Casing Aluminium
Wattage: 200W LED Lifetime: 5000h
Protection Grade: IP66 Colour: Black And Grey
Product Size: 368*366*187mm Packing Size: 380*380*185mm
Highlight:

Industrial Areas UFO High Bay Lights

,

AC90-305V UFO High Bay Lights

,

3000-6500K UFO High Bay Lights





Product Specification







Product Code YAHB-04-100 YAHB-04-150 YAHB-04-200 YAHB-04-250 YAHB-04-300
Input Wattage 100W 150W 200W 250W 300W
Color Temperature 3000-6500K 3000-6500K 3000-6500K 3000-6500K 3000-6500K
Luminous Flux 12000-14000lm 18000-19600lm 24000-28000lm 24000-28000lm 33000-36000lm
Input Voltage AC90-305V AC90-305V AC90-305V AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70 Ra≥70 Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃ -40-50℃ -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h 50000h 50000h 50000h
Protection Grade IP66 IP66 IP66 IP66 IP66
Light Angle 60°/90°/120° 60°/90°/120° 60°/90°/120° 60°/90°/120° 60°/90°/120°
Net Weight 3.2kgs 3.3kgs 3.9kgs 4.2kgs 5.9kgs
Gross Weight 3.8kgs 4.0kgs 4.8kgs 5.0kgs 6.7kgs
Packing Size(mm) 380*380*185 390*390*200 430*430*185 430*430*185 525*525*210
Product Size(mm) 368*366*187 368*366*187 423*418*187 423*418*187 514*511*208

3000-6500K UFO High Bay Lights With AC90-305V Input Voltage For Versatile In Industrial Areas 0

3000-6500K UFO High Bay Lights With AC90-305V Input Voltage For Versatile In Industrial Areas 1

3000-6500K UFO High Bay Lights With AC90-305V Input Voltage For Versatile In Industrial Areas 2















FAQ



Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.

Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.

Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.

Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.

Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.

Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7: How to confirm the quality with us before starting to produce?
1) We can provide ip65 led light samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.

Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.

Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
