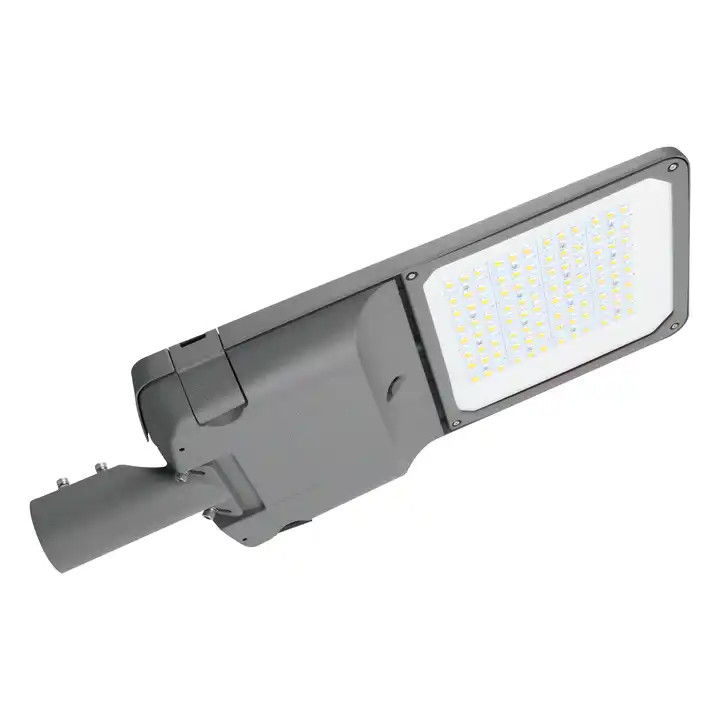

Energy Saving 30W Aluminum Led Street Light For Roadway Lighting

Tool-free detachable construction: Our product features a convenient tool-free detachable construction, making installation and maintenance easy and hassle-free.

Light Source: We utilize the energy-efficient LED 30305050 light source in our lighting systems, ensuring great illumination while minimizing energy consumption.

Dimming Options: With various dimming options available such as time control, 0-10V, optical control, microwaves, and DALI dimming, you can easily adjust the brightness to suit your needs.

Lightning Protection: Our product is equipped with lightning protection of 10KV, 15KV, and 20KV, ensuring the safety and longevity of the lighting system.

Weatherproof and Durable: With an IP66 protection rating and IK08/09/10 impact rating, our product is built to withstand harsh weather conditions and accidental impacts, ensuring reliability in various environments.

Warranty Options: Choose between a 5-year or 8-year warranty option for added peace of mind and assurance of the product's quality and durability.

Features:

• Product Name: Aluminum Led Street Light
• CRI: >80
• Luminous Flux: 4000LM
• Working Temperature: -20℃-50℃
• Light Source: LED
• Power: 30W - 150W - 300W

Technical Parameters:

Item Numbers:
YASL-29-40, YASL-29-60, YASL-29-100, YASL-29-160, YASL-29-240

Wattage Range:
YASL-29-40: 30-60W
YASL-29-60: 50-90W
YASL-29-100: 80-140W
YASL-29-160: 130-200W
YASL-29-240: 200-300W

Lens Quantity:
YASL-29-40: 4 (up to 6)
YASL-29-60: 6 (up to 8)
YASL-29-100: 9 (up to 12)
YASL-29-160: 16 (up to 20)
YASL-29-240: 24 (up to 30)

Installation Height Range:
YASL-29-40: 3-6m
YASL-29-60: 4-8m
YASL-29-100: 6-10m
YASL-29-160: 8-14m
YASL-29-240: 12-14m

Product Size (mm):
YASL-29-40: 576X209X89
YASL-29-60: 593X263X89
YASL-29-100: 646X263X89
YASL-29-160: 709X315X89
YASL-29-240: 812X315X89

Packing Size (mm):
YASL-29-40: 585X250X140
YASL-29-60: 620X305X140
YASL-29-100: 665X305X140
YASL-29-160: 730X360X140
YASL-29-240: 840X360X140

Weights:
YASL-29-40: Net weight - 3.8kgs, Gross weight - 4.2kgs
YASL-29-60: Net weight - 4.1kgs, Gross weight - 4.5kgs
YASL-29-100: Net weight - 4.6kgs, Gross weight - 5.0kgs
YASL-29-160: Net weight - 7.4kg, Gross weight - 7.9kg
YASL-29-240: Net weight - 9.5kg, Gross weight - 10.5kg

Installation Pipe Diameter:
YASL-29-40: φ45/60mm
YASL-29-60: φ60/76mm

Materials:
Housing: ADC12, Cover: Toughened Glass, Screws: 304 Stainless Screws

Body Colors:
Gray, Black, Customized Ral no.

Applications:

Product Application Occasions and Scenarios for the Aluminum Led Street Light:

Brand Name: Die-casting Man

Model Number: YASL-29-100M

Place of Origin: Ningbo, China

Certification: CE. EMC, LVD, ENEC, RoHs

Minimum Order Quantity: 1PC

Price: US$21.6 - US$23

Packaging Details: 1PC/CTN

Delivery Time: 7-35DAYS

Payment Terms: TT

Supply Ability: 50000PCS/M

Voltage: AC85-265V

Beam Angle: 120°

IP Rating: IP66

Lifespan: 50,000 Hours

Luminous Flux: 4000LM

Outdoor Light Post Aluminium Diecasting Parts Street Light Housing: The Die-casting Man Aluminum Led Street Light (Model: YASL-29-100M) is a perfect choice for outdoor lighting scenarios that require reliable and durable illumination. With its ADC12 Aluminum Housing, this street light is not only waterproof but also dustproof, making it ideal for various outdoor environments.

Waterproof 120W Power High Luminous Lamp: The Die-casting Man Aluminum Led Street Light delivers a high luminous flux of 4000LM, providing bright and efficient lighting for streets, parking lots, and other outdoor spaces. Its IP66 rating ensures that it is waterproof, making it suitable for use in areas exposed to the elements.

Whether illuminating residential streets, commercial areas, or industrial sites, the Die-casting Man Aluminum Led Street Light is a reliable and energy-efficient lighting solution. With a lifespan of 50,000 hours and a beam angle of 120°, this street light offers long-lasting performance and wide coverage, making it a versatile choice for various outdoor lighting applications.

Customization:

Product Customization Services for the Aluminum Led Street Light:

Brand Name: Die-casting Man

Model Number: YASL-29-100M

Place of Origin: Ningbo, China

Certification: CE. EMC, LVD, ENEC, RoHs

Minimum Order Quantity: 1PC

Price: US$21.6 - US$23

Packaging Details: 1PC/CTN

Delivery Time: 7-35DAYS

Payment Terms: TT

Supply Ability: 50000PCS/M

Voltage: AC85-265V

Color: Customized Ral. No. Such As Gray, Black, White

Power: 30W - 150W - 300W

Luminous Flux: 4000LM

Lifespan: 50,000 Hours

Additional Features: Adjustable Arm Mount Dusk to Dawn Photocell, Hot Sale Energy Saving Street Light, ADC12 Aluminum Housing dustproof

Packing and Shipping:

Product Name: Aluminum LED Street Light

Product Packaging:

- The Aluminum LED Street Light is carefully packaged in a sturdy cardboard box to ensure safe delivery.

- Each component is securely wrapped and cushioned to prevent any damage during shipping.

Shipping Information:

- Shipping Method: Standard shipping

- Expected Delivery Time: 3-5 business days

- Shipping Cost: Free shipping on orders over $50
