Product Description:
Tool-free detachable construction
Using LED 30305050 light source
Dimming: Time control/0-10V/Optical control/Microwaves/DALI dimming
Lightning protection: 10KV/15KV/20KV
Protection level: IP66; IK08/09/10
Warranty: 5/8 year option
Features:

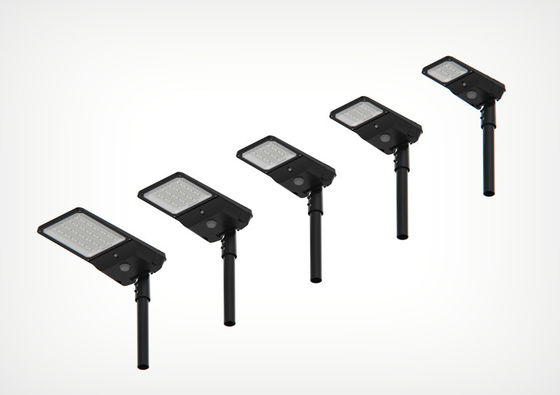

- Product Name: Aluminum Led Street Light
- Lifespan: 50,000 Hours
- Light Source: LED
- Power: 30W - 150W - 300W
- Warranty: 5 Years
- Material: Aluminum

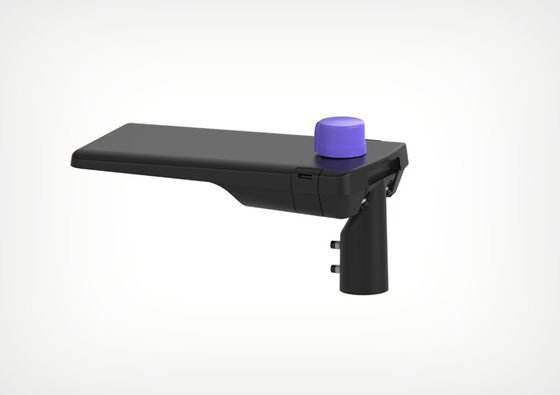

- Adjustable Arm Mount Dusk to Dawn Photocell
- Outdoor Light Post Aluminium Diecasting Parts Street Light Housing
- ADC12 Aluminum Housing IP66 Waterproof
Technical Parameters:
Item NO.
YASL-29-40 | YASL-29-60 | YASL-29-100 | YASL-29-160 | YASL-29-240
Wattage
30～60W | 50～90W | 80～140W | 130～200W | 200～300W
Lens
4(MAX 6) | 6(MAX 8) | 9(MAX 12) | 16(MAX 20) | 24(MAX 30)
Installation Height
3-6m | 4-8m | 6-10m | 8-14m | 12-14m
Product Size(mm)
576X209X89 | 593X263X89 | 646X263X89 | 709X315X89 | 812X315X89
Packing Size(mm)
585X250X140 | 620X305X140 | 665X305X140 | 730X360X140 | 840X360X140
Net Weight
3.8kgs | 4.1kgs | 4.6kgs | 7.4kg | 9.5kg
Gross Weight
4.2kgs | 4.5kgs | 5.0kgs | 7.9kg | 10.5kg
Installation Pipe Diameter
φ45/60mm | φ60/76mm
Materials
Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws
Body Color
Gray, Black, customized Ral no.
Applications:
Die-casting Man's Aluminum Led Street Light, model YASL-29-100M, is a versatile lighting solution suitable for various product application occasions and scenarios. With its custom design and zhaga sensor for street lighting 100W, this product offers high performance and energy efficiency.
Manufactured in Ningbo, China, this street light is certified with CE, EMC, LVD, ENEC, and RoHs, ensuring quality and safety standards are met. The minimum order quantity for this product is 1PC, with a price range of US$21.6 to US$23 per unit. Each unit is packaged individually in 1PC/CTN.
The Die-casting Man Aluminum Led Street Light is ideal for urban settings, highways, residential areas, and commercial complexes. Its color temperature ranges from 3000K to 6000K, providing customizable lighting options. The luminous flux of 4000LM and LED light source offer bright and efficient illumination.
This street light features a Die Casting Man Aluminum Streetlamp Housing suitable for mounting at heights of 6m, 8m, 10m, and 12m. The hot sale energy-saving street light is available in various colors such as gray, black, and white, with customized Ral. No. options.
With a working temperature range of -20℃ to 50℃, this street light is designed to withstand different environmental conditions. The delivery time for orders ranges from 7 to 35 days, with payment terms of TT. Die-casting Man ensures a supply ability of 50000PCS/M to meet the demand for this efficient and reliable lighting solution.
Customization:
Product Customization Services for Die-casting Man Aluminum Led Street Light:
- Brand Name: Die-casting Man
- Model Number: YASL-29-100M
- Place of Origin: Ningbo, China
- Certification: CE, EMC, LVD, ENEC, RoHs
- Minimum Order Quantity: 1PC
- Price Range: US$21.6 - US$23
- Packaging Details: 1PC/CTN
- Delivery Time: 7-35DAYS
- Payment Terms: TT
- Supply Ability: 50000PCS/M
- Luminous Flux: 4000LM
- Color Options: Customized Ral. No. such as Gray, Black, White
- Light Type: Street Light
- IP Rating: IP66
- Color Temperature: 3000K-6000K
Keywords: outdoor light post aluminium diecasting parts street light housing, Die Casting Man Aluminum Streetlamp Housing 6m 8m 10m 12m, Die Casting Man Aluminum Streetlamp Housing
Packing and Shipping:
Product Packaging and Shipping for Aluminum LED Street Light:
- The Aluminum LED Street Light will be carefully packaged in a sturdy cardboard box to ensure safe transit.
- Each unit will be securely cushioned to prevent any damage during shipping.
- The package will include the necessary accessories and installation instructions for easy setup.
- We use reliable courier services for shipping to ensure timely delivery to your doorstep.
