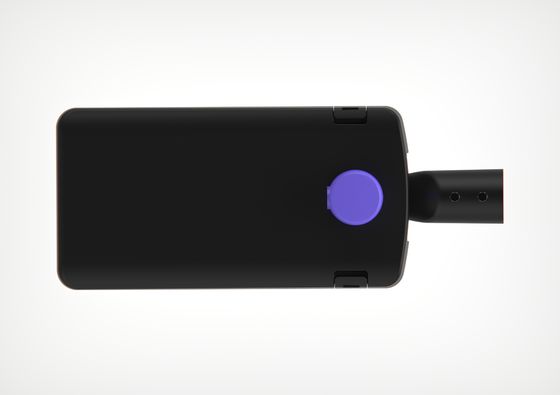

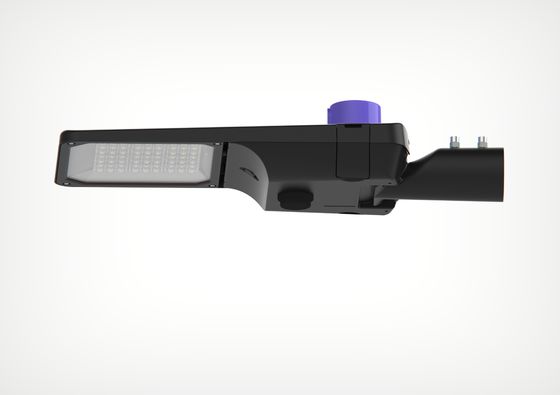

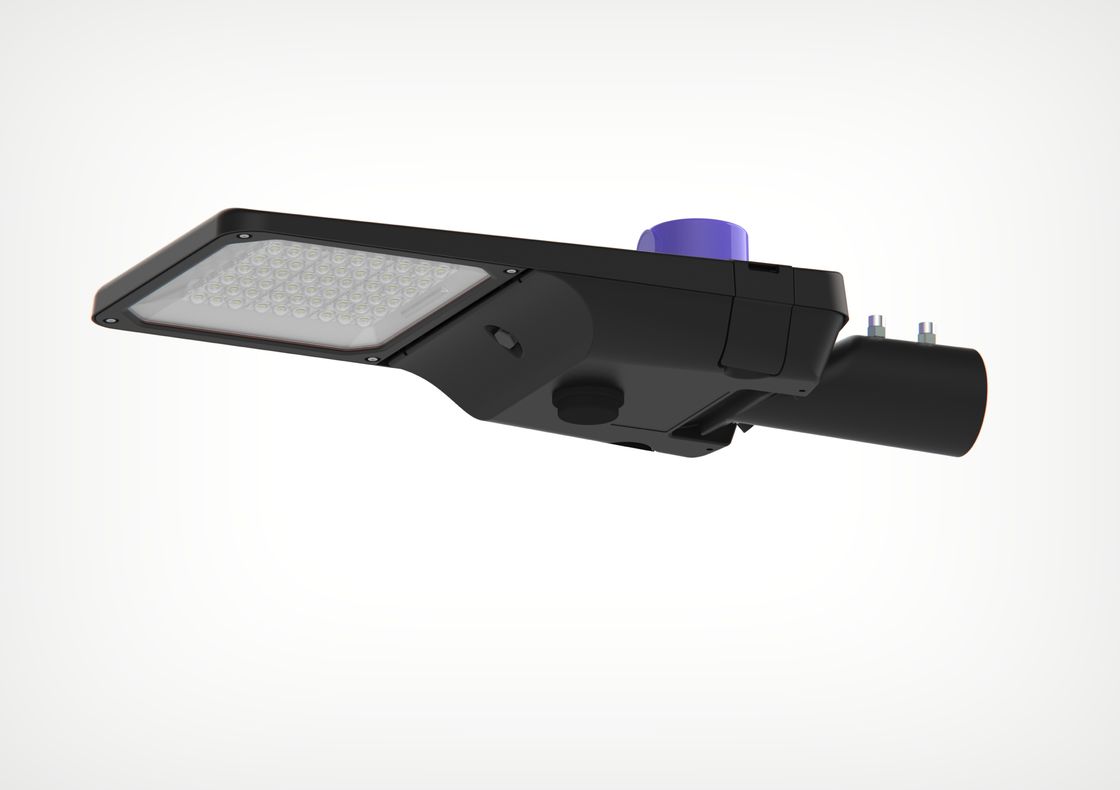

120° Beam Angle Aluminum Led Street Light For -20C-50C Roadway Illumination

Product Description:

Tool-free detachable construction allows for easy assembly and disassembly.

This lighting system features the use of an LED 30305050 light source.

Dimming options include time control, 0-10V dimming, optical control, microwaves, and DALI dimming.

Lightning protection is rated at 10KV, 15KV, and 20KV. The system also provides protection levels of IP66 and IK08/09/10.

A warranty of 5 or 8 years is available for this product.

Features:

• Product Name: Aluminum Led Street Light
• Lifespan: 50,000 Hours
• Luminous Flux: 4000LM
• Color Temperature: 3000K-6000K
• Power: 30W - 150W - 300W
• Light Source: LED

Technical Parameters:

Item NO. YASL-29-40 YASL-29-60 YASL-29-100 YASL-29-160 YASL-29-240

Wattage 30～60W 50～90W 80～140W 130～200W 200～300W

lens 4(MAX 6) 6(MAX 8) 9(MAX 12) 16(MAX 20) 24(MAX 30)

Installation Height 3-6m 4-8m 6-10m 8-14m 12-14m

Product Size(mm) 576X209X89 593X263X89 646X263X89 709X315X89 812X315X89

Packing Size(mm) 585X250X140 620X305X140 665X305X140 730X360X140 840X360X140

Net Weight 3.8kgs 4.1kgs 4.6kgs 7.4kg 9.5kg

Gross Weight 4.2kgs 4.5kgs 5.0kgs 7.9kg 10.5kg

Installation Pipe Diameter φ45/60mm φ60/76mm

Materials Housing:ADC12;Cover:Toughened Glass；Screws:304 stainless screws

Body Color Gray, Black, customized Ral no.

Applications:

Product Application Occasions and Scenarios for the Aluminum Led Street Light:

Brand Name: Die-casting Man

Model Number: YASL-29-100M

Place of Origin: Ningbo, China

Certification: CE. EMC, LVD, ENEC, RoHs

Minimum Order Quantity: 1PC

Price: US$21.6 - US$23

Packaging Details: 1PC/CTN

Delivery Time: 7-35DAYS

Payment Terms: TT

Supply Ability: 50000PCS/M

Power: 30W - 150W - 300W

Working Temperature: -20℃-50℃

Luminous Flux: 4000LM

Lifespan: 50,000 Hours

Color: Customized Ral. No. Such As Gray, Black, White

ADC12 Aluminum Housing IP66 Waterproof, Inteligente Lampadaires Outdoor Led Street Lights, Waterproof 120W power high luminous lamp

Customization:

Product Customization Services for Aluminum Led Street Light:

Brand Name: Die-casting Man

Model Number: YASL-29-100M

Place of Origin: Ningbo, China

Certification: CE. EMC, LVD, ENEC, RoHs

Minimum Order Quantity: 1PC

Price: US$21.6 - US$23

Packaging Details: 1PC/CTN

Delivery Time: 7-35DAYS

Payment Terms: TT

Supply Ability: 50000PCS/M

Luminous Flux: 4000LM

Light Source: LED

Color: Customized Ral. No. Such As Gray, Black, White

Color Temperature: 3000K-6000K

Working Temperature: -20℃-50℃

Packing and Shipping:

Product Packaging:

This Aluminum Led Street Light is carefully packaged to ensure its safe delivery to you. It is wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage during transportation.

Shipping:

We offer fast and reliable shipping for your convenience. Your Aluminum Led Street Light will be shipped out within 1-2 business days from the time of order confirmation. You can track your package using the provided tracking number to monitor its delivery status.
